1. Introduction: Mastering Brother Bobbin Case Fundamentals
The bobbin case is the heartbeat of stitch balance on Brother embroidery and sewing machines. Get it right, and your stitches lock cleanly, designs stay crisp, and thread behaves. In this guide, you’ll learn the major Brother bobbin case types (green-screw standard vs. alternate adjustable), how to pick and install the right case for your model, and practical troubleshooting and maintenance tips drawn from Brother support and instructor-led demos. Ready to eliminate nesting, mystery tension issues, and mid-project headaches? Let’s dive in.
Table of Contents
- 1. Introduction: Mastering Brother Bobbin Case Fundamentals
- 2. Brother Bobbin Case Types and Core Functions
- 3. Buying, Installing and Replacing Brother Bobbin Cases
- 4. Troubleshooting Common Bobbin Case Issues
- 5. Maintenance Mastery: Cleaning and Threading
- 6. Advanced Techniques: Tension Adjustments & Specialty Threads
- 7. Conclusion: Maximizing Machine Performance
- 8. FAQ: Brother Bobbin Case Essentials
2. Brother Bobbin Case Types and Core Functions
2.1 Standard Green-Screw Case: 60wt Thread Optimization
Brother’s standard bobbin case is identified by a green mark on the tension screw and is factory-calibrated for 60-weight (60wt) bobbin thread. Brother personal embroidery machine seals this screw with Loctite to prevent user adjustment, ensuring consistent, out-of-the-box stitch balance—especially for embroidery that expects 60wt bobbin thread.
Key points: - Use case: Everyday sewing and embroidery with 60wt bobbin thread (Brother support; YouTube demos confirm this is the go-to case most of the time). - Do not adjust the green-marked screw (Brother support). - Practical note from instructor video: users sometimes sew with 50wt bobbin thread and fine-tune only top tension as needed, keeping the green case untouched.
Why it works: Brother engineers calibrate the green-screw case to harmonize bobbin tension with typical top thread (e.g., 40wt embroidery), minimizing bobbin show-through and distortion on dense designs.
2.2 Alternate Adjustable Case: Versatility for Specialty Threads
The alternate Brother bobbin case has no color on the tension screw (often identified by a colored dot inside the case cavity; e.g., purple or blue dot) and ships with an adjustable screw (no Loctite). It is factory-set for 90-weight (90wt) thread and designed for fine-tuning when you deviate from 60wt—think ultra-fine, metallic, or other specialty threads.
How to adjust tension safely: - Move the slotted screw in tiny changes—use the “clock face” method in 15-minute increments (YouTube: Sewing Parts Online). - Righty-tighty (increase tension); lefty-loosey (decrease tension). - Test after each change.
Pre-wound and L-style tips from the Luminaire demo: - This case accepts pre-wound bobbins with a spacer insert; remove the cardboard top on certain L-style pre-wounds before use. - Keep material consistency in mind; mixing bobbin types can influence tension behavior.
Use cases: - 90wt bobbin work demanding micro-detail. - Metallic or unusual thread builds where a slight increase/decrease in bobbin tension improves balance.
2.3 Specialized Cases: Bobbin Work & Class L Compatibility
Bobbin work case (light gray case in Brother/Baby Lock ecosystem): - Purpose: Decorative bobbin work using heavy threads, cords, or 12wt that won’t pass through the needle (YouTube demos). - Behavior: Tension is adjustable; setup methods differ from standard embroidery (e.g., do not route heavy bobbin thread around all upper guides as you would for regular bobbin threads—follow your model’s bobbin work instructions).
Class L and pre-wounds: - Brother predominantly uses Class 15 bobbins, but many models accommodate Class L pre-wounds when paired with the appropriate adapter/spacer (Perplexity; Luminaire demo). - Brother identifies alternate cases with an internal dark mark; this case’s adjustable tension supports a wider range of bobbin threads and pre-wounds (Brother support).
Bottom line: Start with green for 60wt. Switch to alternate for 90wt and specialty threads. Use the bobbin work case when intentionally running heavy thread from the bobbin for decorative effects.
3. Buying, Installing and Replacing Brother Bobbin Cases
3.1 Compatibility Guide: Matching Cases to Your Machine Model
Where to start:
- Gold standard: Your machine manual and authorized dealer guidance (Perplexity).
- Many Brother models use Class 15 bobbins (A-style). Instructors commonly reference Brother SA156 bobbins (plastic, 11.5 mm/7⁄16 in high) on machines like the Luminaire (YouTube).
- Class L bobbins are shorter (approximately 3⁄8 in high), and some Brother series—such as ULT 2001/2002D/2003D and select models in the 4500/8200 family—use L-style with specific configurations (Perplexity).
Series-based pointers (Perplexity examples):
- Class 15 commonly appears in CS series (e.g., CS6000/CS6000i/CS6000T), DreamWeaver VQ3000, DreamMaker XE VE2200, and many Quattro machines.
- L-style appears in models like CS8072, SE270D (dual compatibility noted), Super Galaxie, and ULT series.
Quick ID techniques:
- Measure: Class 15 ≈ 13⁄16 in diameter and 7⁄16 in height; Class L is shorter in height (Perplexity; Luminaire demo).
- Check your manual for case part numbers and whether your model includes both the green-screw case and the alternate adjustable case.
Pro tip: Stay consistent with bobbin material (plastic vs. metal) within a project to maintain uniform tension behavior (Perplexity).
3.2 Step-by-Step Installation with Visual Guides
Follow this field-tested sequence from Brother support and instructor demos:
1) Power and prep
- Turn the machine off. Remove the presser foot and needle if needed for visibility (cleaning demo).
- Open the bobbin cover.
2) Clean the bobbin area
- Use a soft brush to remove lint from the race and under the case. Avoid compressed air; lint can be blown deeper into the machine (YouTube cleaning demo).
- You can gently use a cotton swab; avoid snagging wires or removing any small pads inside the compartment (Luminaire demo).
3) Seat the bobbin case correctly
- Identify the white triangle/arrow on the bobbin case and the white dot on the machine. Insert the case at a slight angle so it sits flat, aligning triangle to dot (Luminaire demo; cleaning demo).
- If it resists, turn the handwheel toward you slightly to help it drop into place.
- Hand-turn through a few rotations to confirm the needle does not touch the case.
4) Load the bobbin the right way
- Orientation: Hold the bobbin so the thread looks like a “P” and unwinds counterclockwise when dropped in (Luminaire demo).
- Guide the thread under the metal guide/slot as shown on your machine’s graphic. Some covers allow cutting the tail as you seat it.
- For bobbin work with heavy threads, follow your manual—do not route heavy bobbin threads like standard 60wt (Luminaire demo).
5) Close covers and test
- Reinstall the bobbin cover so it’s fully seated—no gaps between plastic and metal plates (cleaning demo).
- Raise and lower the presser foot to verify top tension disks are engaging, then take a few hand-turned stitches followed by a short test seam.
Pre-wounds and adapters
- Using pre-wound L-style? In the alternate case, add the spacer insert and remove the cardboard top when instructed (Luminaire demo).
Workspace safety for embroidery
- Keep garments fully supported; don’t let heavy items hang off the table or obstruct the frame’s movement to avoid needle strikes or misaligned stitching (Brother support).
Optional efficiency note for garment embroidery

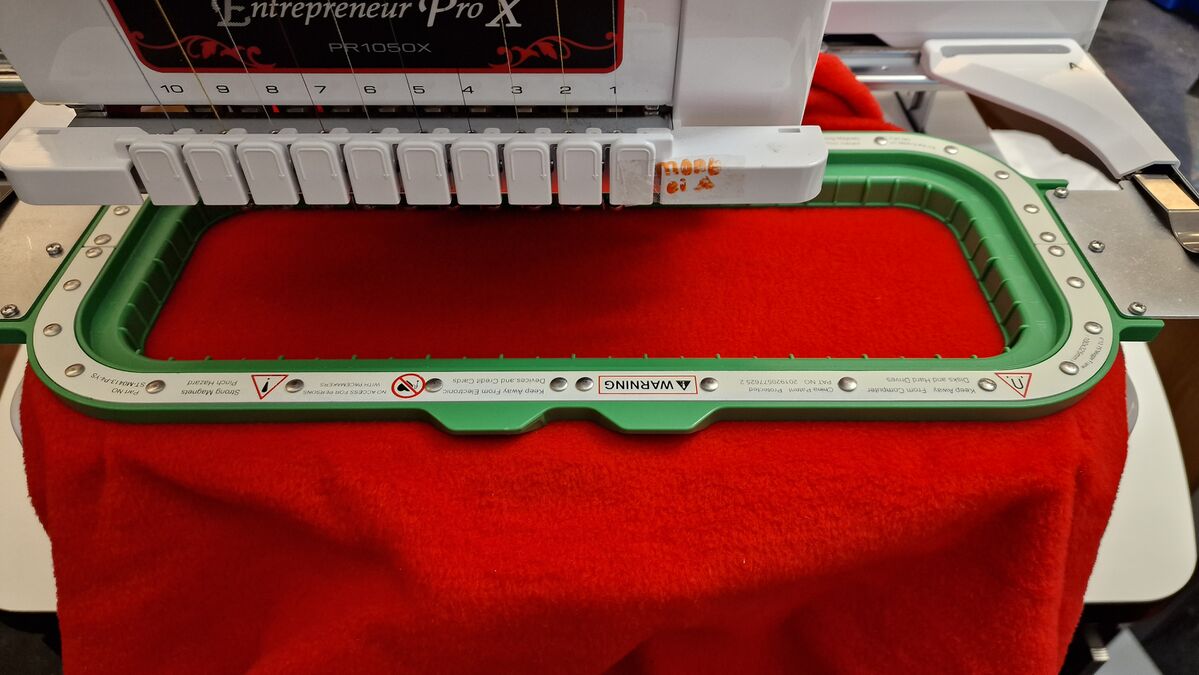

- If you’re hooping garments frequently, magnetic embroidery hoops like MaggieFrame can speed up garment hooping and help hold fabric evenly, reducing slippage during stitching. MaggieFrame focuses on garment hooping (not caps/hats) and offers multiple sizes compatible with many commercial machines. If hooping speed and fabric control are recurring pain points, this can complement your bobbin setup during embroidery.
3.3 Where to Buy: Genuine vs. Third-Party Options
Where to purchase
- Authorized Brother dealers, specialty sewing retailers, manufacturer sites, or find a brother store near me (Perplexity).
- Use retailer compatibility filters and charts to match your exact model and bobbin style (Perplexity).
Pricing and examples
- Pricing varies by model and retailer. In one user video, a Brother HE-240 replacement bobbin case was found around $26 on Amazon (with a bobbin combo) while an eBay option showed about $45 (YouTube). Treat these as examples, not fixed market rates.
OEM vs. aftermarket: what to weigh
- OEM advantages: Known fit and tension behavior for your model; fewer surprises.
- Aftermarket potential: Lower cost, wider availability—but verify model compatibility carefully and expect to test tension. Mixing materials (e.g., switching between different bobbin types) can alter tension characteristics (Perplexity).
- Best practice: Consult your manual (“gold standard”), measure your bobbins (Class 15 vs. L), and buy from sellers with compatibility charts and clear return policies (Perplexity).
Final verification before sewing
- After installation, do a quick stitch test on scrap: straight stitch, then a simple satin or dense fill if embroidering. If balance is off and you’re using the alternate case, adjust in 15-minute increments, righty-tighty/lefty-loosey, and retest (YouTube: Sewing Parts Online).
4. Troubleshooting Common Bobbin Case Issues
4.1 Fixing Thread Nesting and Tension Imbalances
Thread nesting under the fabric is usually a threading or maintenance problem—not a mystery. Start with the basics and move methodically. Quick reset for thread nests - Power off. Slide off the bobbin cover and gently snip/remove all tangles. If thread is trapped under the needle plate, remove the presser foot, undo both plate screws, lift the plate, and clear every thread fragment before reassembly (Perplexity; YouTube cleaning demo). - Re-thread the upper thread from scratch, with the presser foot up so the tension disks open (Perplexity; YouTube). - Reload the bobbin correctly. Brother top-loaders want the bobbin to unwind counterclockwise—think “P” when you hold it (Perplexity; Luminaire demo). Clean the tension path the right way - Brush lint from the race and around the bobbin case. Use tweezers for stubborn bits. Do not use compressed air—never blow debris deeper into the machine (YouTube cleaning demo; Perplexity). - Clear the tension spring area on the bobbin case: slide a business-card–thickness paper under the spring to remove wax/dust; use the paper corner to clean the hole edge. Don’t bend the spring (Perplexity). - If residue (gray/white film) persists, a cotton swab lightly dampened with rubbing alcohol can help on case surfaces; pipe cleaners also work on inside edges (Perplexity). - Tip seen in instructor demos: some use small computer vacuum attachments to pull lint out (never to blow air in). Be gentle around sensors (YouTube cleaning demo). Tension tuning—do it in this order - Adjust top tension first. Many imbalances resolve here (Perplexity). - If bobbin tension still needs correction and you’re using the adjustable (alternate) Brother case, turn the slotted screw in tiny steps—use the 15-minute “clock” method: - Clockwise (right) = tighter; counterclockwise (left) = looser (Perplexity; Sewing Parts Online). - Only turn the screw next to the leaf spring where the thread passes; do not touch the other screw that holds the assembly (YouTube tension video). - Test on scrap after each tweak. - If the screw reaches its limit and you still can’t balance tension, replace the bobbin case (Perplexity). Prevention that pays off - Fleece and faux fur shed heavily—clean the bobbin area more often when sewing/embroidering these (Perplexity). - Support garments during embroidery; don’t let fabric hang off the table, which can skew tension and even cause strikes (Brother support).4.2 Diagnosing and Replacing Damaged Cases
Know the red flags - Needle strikes: Even a tiny hole can snag thread; multiple holes or a missing “chunk” along the rim guarantees trouble (YouTube “Hall of Shame” examples). - Tension spring issues: The spring should lie flat and aligned; distortion or loss of “spring” leads to erratic tension (Perplexity). - Gouges or scratches inside the case can catch thread and cause nesting (Perplexity). - Endless tension fiddling: If you’ve cleaned thoroughly, adjusted in 15-minute increments, and still can’t reach balance before the screw maxes out, it’s time to replace the case (Perplexity). Safe installation, every time - Align the white triangle/arrow on the case with the white dot on the machine. Seat the case flat; if it resists, turn the handwheel toward you slightly to help it drop in (YouTube cleaning demo; Luminaire/new-case demos). - Turn the handwheel a few full rotations to confirm the needle doesn’t touch the case before you sew (YouTube cleaning demo). - Refit the plastic cover so there’s no gap between plastic and metal plates (YouTube cleaning demo). Keep fabric tension stable to protect the case - Heavy drag bends needles and invites case strikes. Support the project fully, and for garment embroidery consider magnetic hoop for brother like MaggieFrame to hold fabric evenly and reduce slippage while stitching. MaggieFrame focuses on garment hooping (not caps/hats) and offers multiple sizes compatible with many commercial machines (previous section; Brother support; MaggieFrame brand info).5. Maintenance Mastery: Cleaning and Threading
5.1 Bobbin Area Cleaning Protocols
Safety and prep
- For brother sewing machine and embroidery, power off (unplug recommended). Remove presser foot and needle for visibility (Perplexity; YouTube cleaning demo).
- Remove bobbin cover, then the metal needle plate screws; set the flat-head screws upright so they don’t roll away (YouTube).
- Lift the plate and remove the bobbin and bobbin case. Don’t pull off the small pad used to hold thread tails during trimming (YouTube).
- Brush out lint from the race and under/around the case; use tweezers for threads (YouTube). Avoid compressed air (Perplexity; YouTube).
- Optional per demo: gently use a computer vacuum attachment to pull lint out—never blow air in and avoid direct contact with sensors (YouTube).
Precision clean the case
- Slide business-card–thick paper under the bobbin case tension spring to clear dust/wax; use the paper corner to clean the hole edge. Don’t bend the spring (Perplexity).
- For stubborn film, use a cotton swab with a little rubbing alcohol; pipe cleaners can help inside/outside edges (Perplexity).
Reassembly checks
- Reinstall the metal needle plate first and tighten the screws (YouTube).
- Insert the bobbin case: align triangle to dot and seat it level. Hand-turn a few rotations to verify the needle doesn’t touch the case (YouTube).
- Replace the plastic cover with no visible gap (YouTube).
How often?
- Light clean at every bobbin change; embroidery creates more lint and may need even more frequent care (Perplexity).
- Inspect the case and hook area every 3–6 months for wear or misalignment (Perplexity).
Pro tip: Keep the work supported—don’t let large garments hang off the table, which can cause frame collisions and poor stitch formation (Brother support).
5.2 Perfect Threading: Upper and Bobbin Synchronization
Upper threading
- Always thread the top with the presser foot up so the disks open. Follow your machine’s path exactly (Perplexity; YouTube demos).
Bobbin loading (top-load Brother style)
- Orientation: hold the bobbin so it looks like a “P.” Drop it so the thread unwinds counterclockwise (Perplexity; Luminaire demo).
- Guide the thread under the metal guide/slot as shown on your machine; some covers trim the tail as you seat them (Luminaire demo).
Set and verify
- Seat the bobbin case: align triangle ▲ to machine dot • and ensure it sits level.
- Turn the handwheel toward you to pull up the bobbin thread and confirm no needle-to-case contact before sewing (YouTube cleaning demo).
When doing bobbin work with heavy threads
- Use the dedicated bobbin work (light gray) case and follow model-specific routing—do not route heavy bobbin threads like standard 60wt (Luminaire demo).
Simple text “diagram” reminder
- Bobbin direction: P → counterclockwise
- Case install: ▲ aligns to •
- Path: under spring → through slot → cover closed flush
6. Advanced Techniques: Tension Adjustments & Specialty Threads
6.1 Fine-Tuning Alternate Case Screws
Use the right case
- Brother’s alternate adjustable case (no color on the screw; often a colored dot inside) is designed for fine-tuning and is factory-set for 90wt. The standard green-screw case is factory-calibrated (Loctite applied) and should not be adjusted (Sewing Parts Online; Brother support).
Adjustment protocol
- On the alternate case, adjust only the slotted screw by the leaf spring where the thread passes. Do not touch the other screw—it holds the assembly (YouTube tension video).
- Use the 15-minute clock method:
- Right (clockwise) = tighter
- Left (counterclockwise) = looser
- Test on scrap after each micro-move (Perplexity; Sewing Parts Online).
- Stop if you reach the screw’s limit without achieving balance—replace the bobbin case (Perplexity).
Practical guardrails
- Make small, documented changes and test on the fabric/thread you’ll use for the project.
- If you switch to pre-wounds or different bobbin materials, expect to recheck balance (Luminaire demo; Perplexity).
6.2 Optimizing for Metallic/Heavyweight Threads
Pick the proper hardware
- For heavy threads, cords, or ribbons that won’t pass the needle, use the specialized bobbin work (light gray) case and follow the manual’s bobbin work setup. Don’t route heavy bobbin thread like standard 60wt (Luminaire demo; Perplexity).
Leverage the alternate case for specialty bobbin threads
- The alternate adjustable case supports brother embroidery digitizing software and wider thread choices and pre-wounds. For certain L-style pre-wounds, insert the spacer and remove the cardboard top before use (Luminaire demo; Sewing Parts Online).
Keep the system stable
- Maintain threading discipline: re-thread top and re-seat the bobbin if balance drifts.
- Keep bobbin type/material consistent within a project (plastic vs. metal) to reduce tension variability (Perplexity).
- Support large garments so they don’t drag or pull the frame (Brother support).
Thread weight recap
- Typical embroidery: standard green-screw case with 60wt bobbin thread (Brother support; Sewing Parts Online).
- Fine/specialty work: alternate adjustable case is factory-set for 90wt and can be fine-tuned (Sewing Parts Online).
- Decorative bobbin work with heavy threads/ribbons: use the bobbin work (light gray) case and your model’s instructions (Luminaire demo).
7. Conclusion: Maximizing Machine Performance
Pick the right case, then work in a smart order. Use the green‑screw case for 60wt bobbin thread; switch to the alternate adjustable case (dark mark inside) for 90wt, pre‑wounds, or specialty techniques, and use the bobbin‑work case for heavy decorative threads. Prevent issues by cleaning at every bobbin change, avoiding compressed air, and aligning the case’s triangle to the machine’s dot. When trouble strikes, rethread the top (presser foot up), reload the bobbin correctly, clean under the spring, adjust top tension first, then fine‑tune the alternate case in 15‑minute increments. Replace a damaged case promptly to maintain your best brother embroidery machine performance.
