Mastering EMBF Folder Embroidery: The Complete Janome File Transfer Guide

1. Introduction to EMBF Folder Essentials

Janome machines don’t “browse” your USB like a computer. They look in a specific place—the EMB > EMBF folder—to find designs fast and reliably. In this guide, you’ll learn why that folder matters, how Janome creates it automatically (and how to create it manually), exactly where to put .JEF files, and how to navigate to them on your machine. We’ll also cover USB formatting, size limits, model-specific nuances (like MC550E and MC15000), plus tips to verify your files appear every time.

Table of Contents

• 1. Introduction to EMBF Folder Essentials
• 2. Understanding the EMBF Folder: Purpose and Functionality
• 3. Step-by-Step Guide to Transferring .JEF Files
• 4. USB Compatibility and Folder Structure Requirements
• 5. Troubleshooting File Visibility Issues
• 6. Janome Model Comparison: Folder Structures Demystified
• 7. USB Management Best Practices
• 8. Conclusion: Streamlining Your Embroidery Workflow
• 9. EMBF Folder FAQ

2. Understanding the EMBF Folder: Purpose and Functionality

2.1 Why EMBF is Essential for File Recognition

Janome’s EMBF folder is more than storage—it’s a machine-readable directory that filters embroidery designs from everything else on your USB. When files live inside EMB > EMBF, the machine can scan quickly, avoid conflicts with non-embroidery data, and display valid designs for selection. This structure is a technical requirement on many models: the machine is programmed to search predetermined paths (starting at EMB and then EMBF), so designs outside that path may not appear. Janome supports automated creation of this folder system to ensure the names and structure are exactly as your model expects.

2.2 Automatic vs. Manual Folder Creation

- Automatic (recommended) - Insert a blank, compatible USB into the powered-on machine. Janome initializes the drive and creates the EMB folder with an EMBF subfolder. On models like the Janome MC550E, you’ll see an on-screen warning not to power off or remove the USB while it builds the folders. - The same behavior applies broadly across Janome models that use EMB/EMBF (e.g., MC200E). - Manual (two proven methods) - Format on the machine: Open the Set/Mode-Set menu, choose Format, and make sure you select USB (not internal memory). The machine builds the proper folders automatically. - Save-to-create: Open any design on the machine, go to Edit, and save it to USB/ATA media. Janome will generate EMB and EMBF along with a sample file so you know where to save future designs. Both methods ensure exact folder names and hierarchy—critical for recognition on many models.

2.3 File Compatibility and Placement Rules

- Supported formats (model-dependent) - JEF is the standard Janome format. Many models also accept JEF+ and JPX; MB-4 additionally reads DST. - Placement rules - Default: Put designs inside EMB > EMBF for reliable recognition. - Custom folders: You can create your own named folders—but create them inside EMB (sibling to EMBF), not at the root. - Model exceptions: - MC550E: Accepts designs in EMBF or directly at the root of the USB. If using root, you’ll navigate “up” from EMBF to view them on the machine. - MC15000: A newer approach—folders are optional, though EMB/EMBF remain available for organization. Tip: Keep folder names exactly as created by the machine (the structure can be case-sensitive). Consistent naming helps the system find files quickly.

3. Step-by-Step Guide to Transferring .JEF Files

3.1 Preparing Your USB: Formatting and Folder Setup

Proper file transfer is a key aspect of janome embroidery.

• Format for compatibility
• Use FAT32 on your computer (or format on the machine via Set/Format). Formatting on the machine also creates the correct folders automatically.
• Create folders the easy way
• Insert the blank USB into your powered-on machine. Janome will build EMB and EMBF; do not remove the drive or power off during this step.
• Capacity limits (model-specific)
  • MC200E: up to 2GB USB
  • MC11000: up to 2GB USB/ATA
  • MB-4: up to 2GB USB/ATA (reads JEF and DST)
  • MC9700/9500: ATA up to 512MB (recommended card usage practices apply)
  • MC300E: ATA up to 512MB
  • MC9900: up to 8GB USB
  • MC12000: up to 4GB USB
  • MC15000: up to 16GB USB
  • MC550E: up to 16GB USB
• Note: Janome has not tested all USB brands; some sticks may be incompatible.
• Safe handling
• Always eject the USB safely from your computer before reinserting into the machine to prevent corruption.

3.2 File Placement Best Practices

• Correct placement for most models
• On your computer, open the USB > EMB > EMBF and copy .JEF files into EMBF.
• Custom organization
• If you like subfolders, create them inside EMB (e.g., EMB > Flowers). Do not put them at the root level. Your designs still need to sit inside EMBF (or in your model’s specified location) to appear.
• Model flexibility
• MC550E: You can store designs in EMBF or in the root of the USB. If you use the root, you’ll navigate up from EMBF on the machine to view them.
• MC15000: Folder structure is optional; EMB/EMBF are available if you prefer.
• File naming
• Use simple alphanumeric names. Keep names consistent; avoid unusual characters for older systems.

3.3 Verification and Machine Navigation

• Load designs on the machine
• Insert the USB, enter Embroidery mode, tap Open (or the open-folder icon), then choose USB Memory.
• Open the EMBF folder; your designs should display. If you organized by custom folders inside EMB, navigate as needed.
• If you saved to the root (where supported)
• Use the “up arrow” in the machine’s file window to move from EMBF to EMB (and to the USB root) to see designs saved outside EMBF.
• Pagination matters
• If you see “1/2,” “1/3,” etc., at the bottom of the screen, use the right/left arrows to page through additional files.
• Pro tip from Janome resources
• If you don’t see a design, first confirm placement inside EMBF (or supported root workflow on MC550E/MC15000), then recheck format and capacity, and safely reinsert the USB.

4. USB Compatibility and Folder Structure Requirements

4.1 Technical Specifications: Size Limits and Formatting

Understanding USB compatibility is crucial for your janome embroidery machine performance. USB capacity and formatting are model-dependent—and they matter. Follow these limits and format rules for predictable file recognition:

• Recommended file system
• Format USB sticks as FAT32. Formatting on the machine also builds the correct EMB/EMBF structure automatically.
• Capacity limits by model (from Janome resources)
• MC200E: up to 2GB USB
• MC11000: up to 2GB USB/ATA
• MB-4: up to 2GB USB/ATA (reads JEF and DST)
• MC9700/9500: ATA up to 512MB (25 designs recommended on card)
• MC300E: ATA up to 512MB
• MC9900: up to 8GB USB
• MC12000: up to 4GB USB
• MC15000: up to 16GB USB
• MC550E: up to 16GB USB
• Brand compatibility caveat
• Janome notes not all USB brands are tested; some sticks may be incompatible.
• Performance tips from practitioner research
• Smaller-capacity drives can be faster for the machine to scan. Experienced users often prefer 2–4GB to keep read times snappy; very large sticks can slow recognition because the machine scans available files.
• Best practices
• Treat the USB as a transfer tool, not a long-term library—only put the designs you intend to sew. Janome documentation emphasizes that large design collections slow response time.
• Always eject the USB safely before moving between computer and machine to avoid corruption.

4.2 Hierarchy Essentials: EMB vs EMBF Folders

Most Janome models expect a specific directory path. Keep this mental picture:

• Standard hierarchy (created automatically by the machine)
• USB root
• EMB
• EMBF ← place .JEF/.JPX here
• YourCustomFolder(s) ← optional, lives alongside EMBF inside EMB

Model behavior—what’s non-negotiable vs flexible

• Strict EMB/EMBF requirement (typical on many models): Place designs in EMB > EMBF for reliable recognition.
• MC15000: Folders are no longer required, though EMB/EMBF remain available as an option.
• MC550E: Flexible—reads from EMBF and can also read designs saved at USB root. To view root, select the up arrow from the EMBF view on the machine.

On-screen navigation cues

• “Up arrow” at the top-left of the file window moves up the directory (EMBF → EMB → USB root).
• Pagination at the bottom (e.g., 1/2, 1/3) indicates more designs—page right/left to see them.

Directory mapping you can copy-paste to visualize:

• USB (root)
• EMB/
• EMBF/ ← put Janome-readable designs here
• Flowers/ ← optional category folder (for organization)
• (root files, where supported—e.g., MC550E/MC15000)

5. Troubleshooting File Visibility Issues

5.1 Common Recognition Failures and Fixes

If designs don’t show up, run this quick diagnostic—most issues fall into these buckets:

• USB stick configuration
  • Reformat to FAT32 (ideally on the machine via Set/Format). This also creates EMB/EMBF correctly.
  • Use a capacity your model supports (see Section 4.1). Smaller sticks often scan faster.
  • Some brands are incompatible—test a different brand or a smaller-capacity stick.
  • Safely eject the USB from your computer before inserting into the machine.
• File placement and mode
  • Confirm designs are in EMB > EMBF (or USB root on models that support it, like MC550E/MC15000).
  • Enter Embroidery mode, choose Open, then USB Memory. Start in EMBF, use the up arrow to navigate if needed.
  • Page through screens (e.g., 1/2, 1/3) to reveal additional files.
• Hardware and port hygiene
  • Inspect the USB port for dust—use short bursts of compressed air (no liquids) to clear debris.
  • Try another USB port (if your model has more than one).
  • Prefer USB 2.0–compatible devices if you suspect high‑speed USB 3.0 is causing handshaking quirks.
• Drive testing method
  • Step 1: Format and initialize the stick on the machine.
  • Step 2: Copy a single known‑good .JEF file into EMBF.
  • Step 3: Verify visibility on the machine.
  • Step 4: Add a few more files and retest. Avoid loading hundreds at once—keep the USB lean for faster scanning.

5.2 Design Constraints: Size and Naming Pitfalls

Even correctly placed files can stay hidden if the design or filename trips a model-specific rule:

• Hoop size mismatch
  • Many Janome models will not display designs that exceed the available hoop size. Resize or rotate in software so it fits your machine’s hoop.
• Stitch-count considerations
  • Very dense designs can fail to load on some models. If you suspect this, try splitting the design into sections in your software.
• Naming conventions (watch for older-model sensitivities)
  • MC11000 case study: Users report the 11000/11000SE rejects filenames containing underscores (_). Renaming files to simple alphanumeric (e.g., Coffee1.jef) resolved visibility.
  • If a file won’t show, simplify the name—letters and numbers only—and keep it short.
• Pagination, again
  • Don’t overlook page indicators at the bottom of the screen; your design may be on page 2, 3, or beyond.

If you’ve checked placement, size, and naming, test the design in a viewer (e.g., Janome software or a third-party viewer) to confirm the file itself isn’t corrupt.

5.3 Fabric Stability Solutions for Complex Projects

When designs finally appear but stitch off-center or skew, stability—not the file—is often to blame. magnetic hoops for janome embroidery machines like MaggieFrame are purpose-built to keep garments steady during embroidery:

• Why they help
  • Strong magnetic holding distributes pressure evenly, reducing hoop burn and slippage on garments from delicate knits to heavier denim and towels.
  • Quick hooping reduces handling, so fabric stays aligned from placement to stitch-out.
• Efficiency and quality gains (from provided brand data)
  • Hooping time for garments can drop by about 90% compared to screw-based hoops, while steadier holding helps reduce misalignment and defects.
  • Durable construction and high-strength magnets support long-term, repeatable accuracy—especially valuable for dense or multi-layer projects.
• Usage scope reminder
  • MaggieFrame is designed for garment embroidery hooping (not for caps/hats).

Tip: Pair solid file prep (correct EMBF placement and naming) with stable hooping. You’ll see fewer “mystery shifts,” cleaner outlines, and more consistent results on complex fabrics.

6. Janome Model Comparison: Folder Structures Demystified

The Janome Memory Craft series includes machines with different folder structures.

6.1 High-End Models (MC15000, MC12000)

• MC15000
• Folder structure: Folders are no longer required; EMB/EMBF remain available as an option. The model can also read designs from USB root.
• Formats and workflow: Supports JEF/JEF+/JPX and advanced editing. Offers wireless design transfer capabilities alongside traditional USB methods via Horizon Link Suite.
• Capacity: Up to 16GB USB.
• MC12000
• Folder structure: Strict EMB > EMBF requirement.
• Transfer methods: USB stick workflow (copy to EMBF), plus Horizon Link software workflows (including writing to EMBF on USB or sending via cable).
• Capacity: Up to 4GB USB.

Directory snapshot:

• MC15000
• USB root (designs can live here)
• EMB/
• EMBF/ (optional, still supported)
• MC12000
• EMB/
• EMBF/ ← place designs here

6.2 Mid-Range Machines (MC550E, MB-4)

• MC550E
• Folder structure: EMB/EMBF created automatically; reads designs in EMBF and also at USB root.
• On-screen navigation: Insert USB, choose USB Memory, open EMBF; use the up arrow to access root if needed. Watch pagination (1/2, 1/3).
• Capacity: Up to 16GB USB; note that not all brands are tested for compatibility.

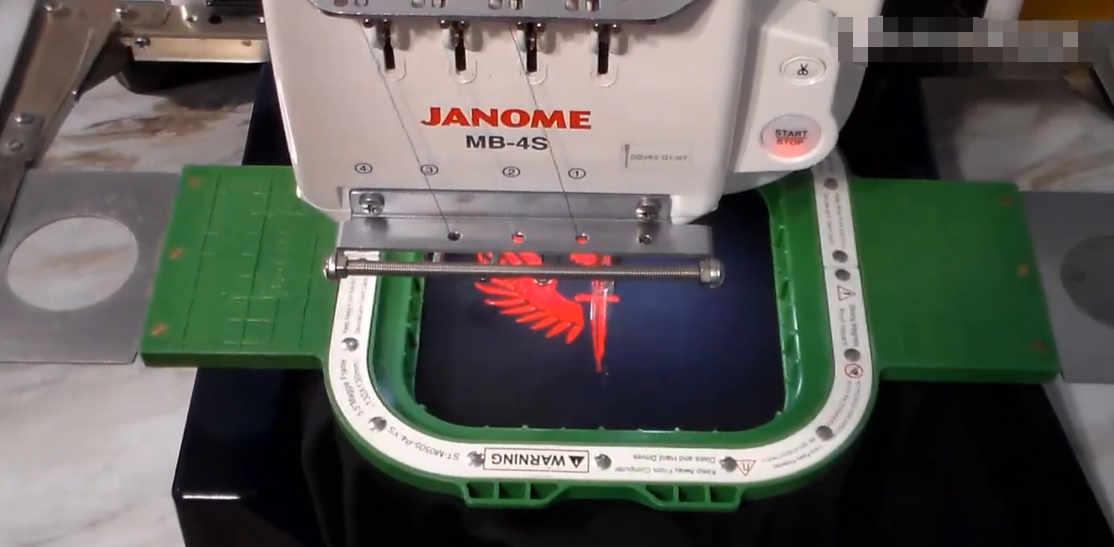

• MB-4
• Folder structure: EMB > EMBF.
• Format support: Reads JEF and DST.
• Capacity: Up to 2GB USB/ATA.

Directory snapshot:

• MC550E
• USB root (supported)
• EMB/
• EMBF/ ← supported
• MB-4
• EMB/
• EMBF/ ← required

6.3 Legacy Systems (200E, 9500/9700)

• 200E
• Folder structure: EMB > EMBF is required.
• Capacity: Up to 2GB USB.
• 9500/9700
• Media: ATA compact flash cards.
• Folder structure: Embf5 (numbered folder). A maximum of 25 designs on the card is recommended for responsiveness.
• Capacity: Up to 512MB ATA card; a computer card reader may be required.

Additional legacy patterns you may encounter (from Janome documentation):

• 350E: Embf5 with a MyDesign subfolder (place designs in MyDesign).
• 10001: Embf5 through Embf16 numbered folders.
• 300E: Embf5 on ATA card (512MB limit).

If you’re migrating between generations, verify the exact folder and media type your model expects. When in doubt, insert a blank USB/card into the machine, save any design to it, and let the machine build the correct structure automatically.

7. USB Management Best Practices

A tidy USB equals a predictable stitch-out. Use the rules below to keep your EMB > EMBF workflow fast, compatible, and headache‑free.

7.1 Naming Conventions and Character Restrictions

• Use simple, alphanumeric names plus hyphens. Example: holiday-wreath-01.jef
• Avoid underscores. Older Janome models (e.g., MC11000/11000SE) are reported to reject filenames containing “_”.
• Prohibited/suspect characters: #, %, &, and other special characters such as / : * ? " < > | [ ] $ ~ { } ( ) \ + ! @
• Keep names under 31 characters. Shorter is safer across models.
• Don’t start or end filenames with spaces, periods, hyphens, or underlines.
• Be consistent: use .jef format and a simple, readable pattern (e.g., collection-theme-size.jef).
• If a design won’t show, first rename to letters/numbers only (no spaces, no underscores), then retest in EMBF.

Why this works:

• Janome machines expect a clean, machine-readable list (especially from EMBF).
• Known sensitivity to underscores exists on legacy models (MC11000 case reports).
• Short, plain names reduce parsing errors and speed up on‑screen browsing.

7.2 Storage Optimization Strategies

• Treat USBs as transfer tools, not libraries.
• Janome documentation cautions that storing lots of designs slows machine response. Keep only what you plan to sew on each stick.
• Keep folder depth shallow.
• Place .JEF files in EMB > EMBF (or USB root only on models that support it, like MC550E/MC15000). Deep nesting can hide files from the machine.
• Reformat periodically (on the machine).
• Use Set/Format to rebuild EMB/EMBF and clear out hidden file issues. Always format the USB—not internal memory.
• Respect capacity limits.
• Follow your model’s maximum (e.g., MC200E up to 2GB; MC15000/MC550E up to 16GB, etc.). Not all USB brands are tested; swap brands/sizes if recognition is flaky.
• Safely eject every time.
• Use your computer’s eject feature before removing the stick to prevent file corruption.
• Back up to your computer or cloud.
• Maintain a master library off the USB. Cloud options (e.g., Dropbox) add redundancy and version control.

Speed tip grounded in Janome resources and user videos:

• Files inside EMBF are found faster than designs scattered at USB root, because the machine narrows its scan to known folders.

7.3 Workflow Efficiency Enhancements

End-to-end flow that saves time and prevents surprises:

• Initialize the USB on your machine (auto‑creates EMB/EMBF).
• Copy only the designs you’ll stitch today into EMBF; use clean, short names.
• Verify on the machine: Open > USB Memory > EMBF; use the up arrow and pagination if needed.
• Keep your stitch-out stable with reliable hooping. Janome magnetic hoop options like MaggieFrame help keep garments from shifting, reduce hoop marks, and speed hooping compared to screw‑style hoops. The brand reports hooping time savings of about 90% for garments, plus steadier holding that helps reduce misalignment and defects over time. MaggieFrame is designed for garment embroidery hooping (not for caps/hats).
• Rinse and repeat: after the job, clear the USB so it’s ready for the next project.

Small discipline, big payoff: lean USBs, clean filenames, and stable hooping combine to eliminate the most common causes of “no files to show” and skewed stitch-outs.

8. Conclusion: Streamlining Your Embroidery Workflow

Put simply: let the machine do what it’s designed to do. Initialize the USB so EMB > EMBF exists, place .JEF files where your model expects them, and keep the stick lean. Follow model-specific limits (like MC200E’s 2GB) and use the up arrow/pagination when browsing. With smart naming, regular formatting, and proactive troubleshooting, your designs will appear on-screen quickly—and stitch exactly where you planned.

9. EMBF Folder FAQ

9.1 Q: Why can’t my machine read designs?

• A: Check the basics for your Janome models:
• Placement: Put .JEF files in EMB > EMBF (or USB root only on models that support it, like MC550E/MC15000). Use the “up arrow” to navigate and page through screens (1/2, 1/3, etc.).
• Format and size: USB must be FAT32 and within your model’s capacity. Not all brands are compatible—try another stick if needed.
• Naming: Use letters/numbers; avoid underscores and special characters. Keep it short (under 31 characters).
• Design limits: Ensure the design fits your hoop and isn’t overly dense for your model.
• Mode: Enter Embroidery mode, choose Open, then USB Memory, and open EMBF.

9.2 Q: Can I manually create EMBF?

• A: Yes—three reliable methods:
• Insert a blank, compatible USB and save any design from the machine to USB; it auto‑creates EMB and EMBF.
• Format on the machine via Set/Format (select USB, not internal memory); the folders are created automatically.
• Create folders on a computer (EMB at root, then EMBF inside EMB), but initializing on the machine is recommended to match exact naming.

9.3 Q: What USB sizes work with MC200E?

• A: MC200E supports up to 2GB USB (FAT32). Place .JEF files in EMB > EMBF. Janome also notes that not all USB brands are tested, so if one stick fails, try another within the same capacity.
