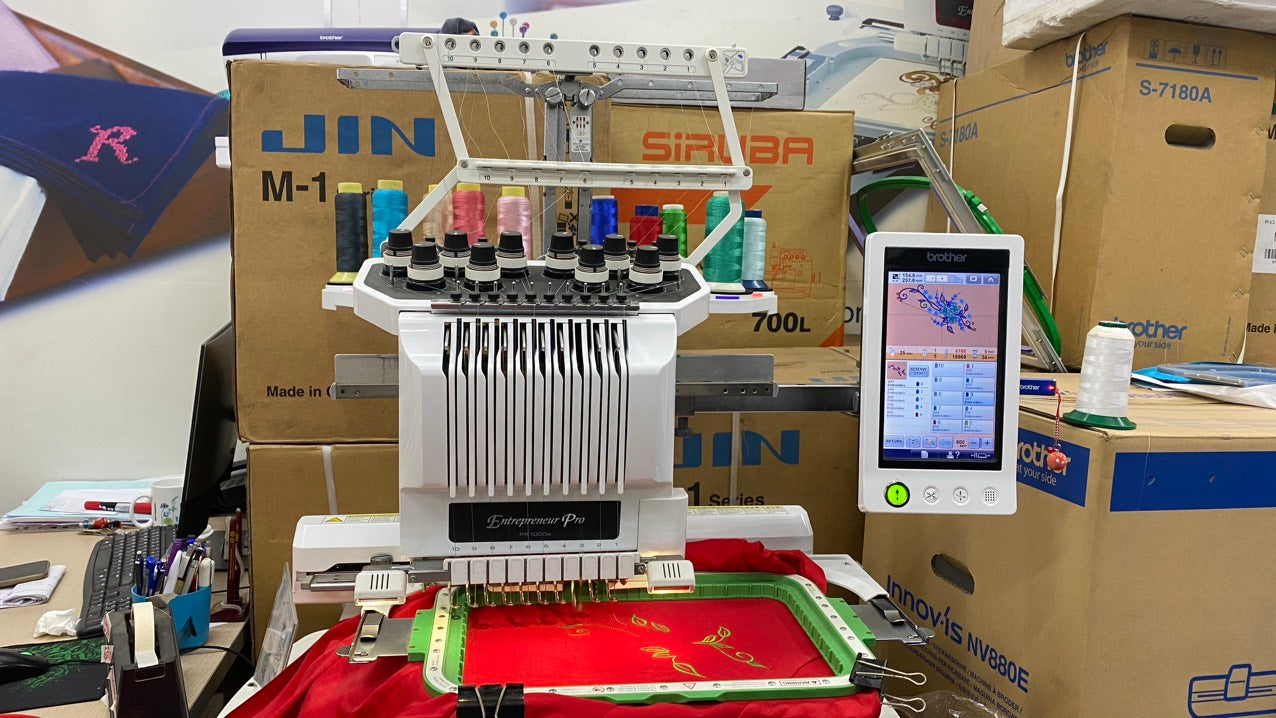

Brother PR1000e 10-Needle Embroidery Machine: Expert Guide to Features, Setup, and Maximizing Performance

1. Introduction: Mastering Commercial-Grade Embroidery with Brother PR1000e

Ready to move beyond hobby speed without jumping to an industrial behemoth? Brother’s PR1000e is the 10-needle bridge between home and commercial embroidery. With a built-in camera, Snowman positioning marker, and a tubular free-arm shape that simplifies tricky garments, it turns multi-color work into a smooth, repeatable process. In this guide, you’ll get the essentials—specs and standout features, head-to-head comparisons (PR1055X and commercial rivals), hands-on operation insights, upgrade paths, and pro workflow tactics—so you can set up smarter, stitch faster, and place designs with confidence.

Table of Contents

• 1. Introduction: Mastering Commercial-Grade Embroidery with Brother PR1000e
• 2. PR1000e Technical Specifications and Breakthrough Features
• 3. Head-to-Head Comparisons: PR1000e vs PR1055X vs Competitors
• 4. Setup and Operation Masterclass
• 5. Advanced Features and Upgrade Options
• 6. Real-World User Experiences and Maintenance
• 7. Professional Workflow Optimization
• 8. Conclusion: Is the PR1000e Right for You?
• 9. Frequently Asked Questions

2. PR1000e Technical Specifications and Breakthrough Features

The PR1000e packs pro-grade capability into a user-friendly platform: a 10-needle engine up to 1,000 stitches per minute (SPM), a large-format embroidery area, advanced visual positioning, and thoughtful thread/color systems that cut setup time and errors. Here’s how those advantages play out in real production.

2.1 Speed and Performance Capabilities

The headline: 10 needles at up to 1,000 SPM. That multi-needle architecture dramatically reduces thread changes and boosts throughput on multi-color designs.

• Embroidery field: up to 14" x 8", giving you room for larger logos, back pieces, and dense compositions.
• Real-world throughput: On a 50,000-stitch design, the PR1000e can complete the job about 12% faster than a 6-needle and more than 30% faster than a single-needle machine.
• Precision speed control: Adjust individual needle speeds from 400–1,000 SPM to accommodate specialty threads and delicate fabrics without slowing the entire design.
• Productive recovery: If you need to move within a large design, jump forward or back by up to 1,000 stitches at a time—handy on high stitch-count projects.

Bottom line: larger field, fewer thread swaps, adjustable speeds, and rapid navigation add up to faster finishes with fewer interruptions.

2.2 InnovEye Camera and Snowman Positioning System

The PR1000e’s built-in camera (InnovEye Technology) and Snowman marker transform placement from guesswork into a guided process.

• How it works: Place a Snowman sticker on your hooped item. The camera scans and automatically adjusts position and rotation so the design lands where you intended—even if the hoop isn’t perfectly aligned.
• Faster, clearer scanning: Compared to earlier Quattro models, InnovEye on the PR1000e offers up to 2x faster scanning and up to 3x better resolution.
• Live view and scanning: You can see a real-time view of the needle area; with the optional upgrade, scan the entire embroidery area and preview the design on the LCD over your actual fabric—especially useful on pre-made garments and collars.
• Border/batch finesse: The upgrade also adds easier pattern connection by camera, speeding up borders and repeating layouts.

In practice, this means confident placement on first try—and less rehooping, rework, and wasted blanks.

2.3 Thread Management and Color Systems

Threading and color assignment are often where production bogs down. The PR1000e streamlines both.

• 10-thread eyelet threading: Follow the numbered path; the eyelet system helps maintain consistent tension and reduces tangles.
• Built-in auto-threader: Thread any needle in seconds at the press of a button.
• Thread spool reset: Clear the previous spool assignment and auto-assign colors for the next design in sequential order to minimize head travel.
• InnovaChrome LED thread color system: Vibrant LED indicators under each spool cue the correct color placement and provide visual status (e.g., thread break, design complete).
• On-machine guidance: Built-in tutorials, diagrams, and clear icon-driven menus reduce the learning curve.

Want to speed up garment hooping and keep fabric tension even? On compatible setups, many shops use a magnetic hoop for brother, such as MaggieFrame magnetic embroidery hoops for garment hooping to accelerate prep and improve hold:

• Powerful magnetic hooping helps secure everything from lightweight knits to thicker towels and denim while reducing hoop marks.
• Available in 17+ sizes, supporting a broad range of projects across most commercial and industrial machines, including Brother.
• For garment hooping only (not for caps/hats).
• Data from MaggieFrame shows garment hooping time for many workflows can drop from about 3 minutes to roughly 30 seconds (around 90% time savings), with fewer placement-related defects.

When you attach any hoop to the PR1000e, follow Brother’s hoop/arm sensing guidance on the machine. Use magnetic hoops like MaggieFrame to streamline garment prep and placement, then leverage the PR1000e’s camera and Snowman system for pinpoint design positioning.

3. Head-to-Head Comparisons: PR1000e vs PR1055X vs Competitors

Looking at upgrades inside the Brother family with a brother embroidery machine comparison chart helps clarify which machine best fits your workload, connectivity needs, and growth plans.

3.1 Brother Family Showdown: PR1000e vs PR1055X Differences

Shared DNA: Both are 10-needle platforms with up to 1,000 SPM and a maximum 14" x 8" embroidery field. Where the PR1055X pulls ahead is in content, connectivity, and live camera features.

• Wireless connectivity: PR1055X adds wireless LAN for design transfer and monitoring via the My Stitch Monitor app on iOS/Android. The PR1000e relies on USB/Ethernet.
• Live design overlay: Both have cameras, but PR1055X shows the actual design overlay in live view. The PR1000e displays a crosshair view during live view.
• Expanded libraries: PR1055X includes 1,184 total built-in Brother embroidery designs; the PR1000e offers a more limited selection (outline reference notes 1,184 vs 123). The PR1055X also expands built-in patterns and font options compared to the PR1000e.
• Quilt sashing functions: PR1055X adds quilt sashing with live camera, including 25 sashing designs (20 single-color, 5 two-color).
• Display and user refinements: The PR1055X brings broader editing and alignment enhancements and refined controls, while the PR1000e features an Advanced Super View HD LCD from Sharp with 16.7 million colors and brightness adjustment.

If you value wireless workflows, on-screen design overlay, and larger built-in content libraries, the PR1055X is the premium pick. If core 10-needle capability with camera-assisted placement covers your needs, the PR1000e remains a strong, cost-effective choice.

3.2 Commercial Machine Comparison: Bernina and Melco Alternatives

Against the highest-output commercial rivals, Brother prioritizes usability, visual guidance, and support.

• Bernina E 16 Plus: 16 needles, up to 1,400 SPM, and a larger 15.7" x 13.8" field.
• Melco Amaya Bravo: 16 needles, up to 1,500 SPM, with a 16" x 14" field.
• Brother advantage: While the PR1000e and PR1055X don’t match those needle counts or peak speeds, they counter with a user-friendly interface, camera-driven placement (InnovEye + Snowman), and a strong support ecosystem that appeals to small studios and growing home-based businesses.

Choose Brother when visual placement accuracy, approachable operation, and a robust support network matter more than absolute maximum throughput. Choose Bernina or Melco when top speed and larger fields are the deciding factors.

4. Setup and Operation Masterclass

4.1 Machine Setup and Threading Walkthrough

Get the machine physically ready, thread cleanly, then load the bobbin—those three steps set you up for smooth stitching.

• Mount the hoop bracket
• On Brother 10-needle platforms (including PR1000e), align the bracket’s locating pins with the machine mounts, seat it, then secure with the two screws. Set the bracket position to match the hoop size you plan to use, and verify the hoop/arm auto-sensing recognizes the correct hoop before you sew.
• Thread the 10-needle path the easy way
• Follow the numbered path: The PR1000e shows the entire thread route on the machine. Guide the thread through the antenna, then through each numbered guide down to the tension rack and uptake lever, just as the on‑machine diagrams indicate.
• Close the i‑set hole/slider: After passing the thread through the i‑set hole, slide it closed. This helps prevent tangles and keeps tension consistent.
• Use the automatic needle threader: Select the needle number on screen, bring the thread behind the looper at that needle, press the auto-thread button, route the thread under the guide, around the numbered loop, let the cutter trim, and press the button again. The PR1000e will pull the thread cleanly through the eye for you.
• Pro tip: Once you learn one threading lane, the other nine are identical.
• Load the bobbin (front-loading case)
• Open the front cover, swing it down, and remove the bobbin case.
• Insert the bobbin so it looks like the letter “P” (not “9”) when viewed in the case. Feed the thread into the case slot until it snaps into the channel, then reinsert the case until it clicks. Leave a short tail and close the cover.
• Color setup for productivity
• Use Thread Spool Reset to erase old spool assignments and auto-sequence colors for the next design—this reduces unnecessary head movement.
• If you keep certain colors always on specific needles, use the on‑screen “anchor” method to lock those positions so the PR1000e remembers them across projects.
• Safety and sanity checks
• The PR1000e’s hoop/arm auto‑sensing will warn you if the hoop is incorrect. The screen lock requires pressing the red lock key, then Start—preventing accidental runs.

Resources used: Brother PR1000e threading and bobbin tutorials; PR1000 Productivity Overview; PR1000e interface features.

4.2 Hooping Techniques for Different Fabrics

Consistent hooping is half the battle. Use the right stabilizer, apply even fabric tension, and choose embroidery hoops for brother that match the job.

• Core hooping best practices for garments
• Wovens (e.g., cotton shirts): Heavyweight tearaway stabilizer works well. A light mist of temporary spray can help bond fabric to stabilizer before hooping.
• Knits (e.g., tees, sweatshirts): Consider a cutaway stabilizer to control stretch.
• Towels/lofted fabrics: Top with a water‑soluble topping to keep stitches from sinking.
• Hooping steps (standard hoops): Loosen hoop screws; lay the fabric and stabilizer flat; seat the inner frame; gently tug around the edges to remove puckers without over‑stretching; tighten screws evenly; recheck smoothness.
• Faster garment prep with magnetic embroidery hoops
• Many shops adopt MaggieFrame magnetic embroidery hoops for garment hooping to speed prep and keep tension even:
• Time savings: Garment hooping often drops from about 3 minutes to roughly 30 seconds (around 90% time savings) in many workflows.
• Even hold, fewer hoop marks: Strong magnetic force and broad contact help keep fabric stable, from light knits to denim and towels.
• Sizes and compatibility: Available in 17+ sizes and compatible with most commercial and industrial machines, including Brother. For garment hooping only (not caps/hats).
• Important note for PR1000e users: The machine’s hoop/arm auto‑sensing is designed for genuine Brother hoops. If you use any third‑party hoop, follow Brother’s on‑screen guidance carefully and verify hoop clearance and design area before starting.
• Precision placement after hooping
• Use the PR1000e’s InnovEye camera and Snowman marker to correct rotation/alignment automatically, especially helpful on pre‑made garments, collars, and items that are hard to square perfectly in the hoop.

Resources used: PR1000 Productivity Overview; PR1000e camera/Snowman guidance; MaggieFrame brand information and usage notes.

4.3 Running Your First Design: From Screen to Stitch

Turn on the visual aids, verify colors, and let the 10-needle engine do the rest.

• Load and prep the design
• Import via USB or choose a built‑in design. The PR1000e renders designs virtually instantly on the Advanced Super View HD LCD.
• On the color page, set each needle’s thread color and use the anchor function for any colors you keep permanent on specific needles.
• Position with confidence
• Place a Snowman sticker at your intended center. Use InnovEye to locate it; the PR1000e will auto‑adjust position and rotation so your design lands exactly where you intended.
• Use live view to inspect the needle area in real time before stitching.
• Final checks and go
• Confirm the correct hoop is detected by the hoop/arm auto‑sensing system. Lock the screen (press the red lock key) and press Start.
• Monitor InnovaChrome LEDs on the spool stand for at‑a‑glance status (e.g., thread break, design complete).
• Quick recovery if needed
• If you stop mid‑design (e.g., to fix a thread issue), you can jump forward/back by up to 1,000 stitches to return to the right point quickly.

Resources used: PR1000 Productivity Overview; PR1000e camera/Snowman features and on‑screen workflow.

5. Advanced Features and Upgrade Options

5.1 Entrepreneur Pro Upgrade: Scanning and Color Shuffling

Transform your PR1000e with Brother’s Entrepreneur Pro Upgrade (PRPUGK1)—a software/hardware package designed for both PR1000 and PR1000e.

• Integrated scanning via InnovEye
• First-ever scanner in a multi‑needle embroidery machine for real‑time background images on the LCD. Scan the entire hoop area, preview the design over your actual fabric, and nail placement on pre‑made garments and collars.
• Improved pattern connection by camera speeds up borders and repeating layouts.
• Color Shuffling for instant palettes
• Explore four scheme categories—Random, Vivid, Gradient, Soft—and preview multiple combinations at once. Don’t like the options? Shuffle again to generate new palettes and save favorites for later.
• Auto‑resizing with auto‑density (Stitch‑to‑Block)
• Resize designs from about 60% to 200% and let the machine automatically recalculate stitch counts for consistent coverage. Prefer control? Adjust density manually on screen.
• Content and compatibility
• Adds 10 new designs and 2 new embroidery fonts.
• Positioned at $799.99.
• Productivity impact
• Scanning reduces placement trial‑and‑error; auto‑density cuts re‑digitizing time when resizing; Color Shuffling accelerates approvals for fabric‑dependent colorways.

Resources used: PR1000/PR1000e Upgrade videos and feature descriptions; Perplexity upgrade research.

5.2 Design Editing and Workflow Optimization

Work smarter on the PR1000e by combining on‑screen editing with smart color and sequencing features—especially powerful after adding the upgrade.

• On‑screen editing essentials
• Zoom up to 200% and pan to inspect detail.
• Rotate (1/10/90 degrees), mirror, move, copy/duplicate elements, and group/ungroup.
• Resize with auto‑density (via upgrade) so fills look right after scaling.
• Adjust letter spacing and thread density when needed.
• Color planning that saves time
• Use Thread Spool Reset to cleanly re‑sequence colors for the next job.
• Anchor your “always‑there” colors to specific needles to reduce changeover.
• If you activate Manual Needle Bar Sequences, note that automatic stops are disabled—monitor thread changes manually.
• Settings that speed your day
• Customize screen saver timing, brightness, audio beeper volume, language, units, and spool lighting controls.
• Upper/bobbin thread sensors can be toggled to suit specialty materials and techniques.
• Visual placement meets efficient editing
• Scan the hoop (upgrade) to generate a real‑fabric background, then position, mirror, resize, and color‑tune directly on the LCD until your preview matches your plan.

Resources used: PR1000e on‑screen editing tutorial; PRPUGK1 upgrade details; Perplexity operation research.

6. Real-World User Experiences and Maintenance

6.1 Performance Highlights from Actual Owners

What owners of the brother innovis embroidery machine point to, again and again:

• Placement confidence
  • The Snowman positioning function is a favorite. Place the sticker, and the PR1000e aligns the design automatically using the built-in camera—huge time saver for shops and repeat work.
• Camera advantages
  • Users love the live view for checking the needle area. Note: PR1000e shows a crosshair in live view, while PR1055X overlays the design in live view—some owners choose the newer model for the overlay on trickier placements.
• Runs fast, sounds civilized
  • Up to 1,000 SPM with quiet operation that suits home studios and shared spaces, while producing results that look shop‑grade.
• Tubular versatility
  • The free‑arm/tubular shape makes hooping and stitching on garments (baby clothes, sleeves, etc.) far easier than flat‑bed setups.
• Space and setup reality
  • At about 92 pounds, owners recommend a permanent, well‑supported location with good ventilation. It’s not a “move it every day” machine.

Resources used: User impressions and highlights; PR1000e overview; top-ranked user article on Snowman, camera, and tubular benefits.

6.2 Troubleshooting and Maintenance Protocols

Keep it running like new with systematic care and quick diagnostics.

• Built‑in help you should actually use
  • Access the PR1000e’s on‑screen Help from Home: parts ID, basic operations, troubleshooting, and maintenance (including oiling procedures) with step‑by‑step visuals and tutorials.
• Routine care cadence
  • Clean after use (especially lint around the needle plate and bobbin area).
  • Perform monthly maintenance on frequently used machines as outlined in the on‑screen Help.
  • Many owners schedule annual professional servicing; user reports cite typical costs in the $300–$400 range.
• Thread break diagnostics
  • Rethread using the numbered path and close the i‑set slider to stabilize tension.
  • Check the tension bar path and uptake lever threading for the active needle.
  • Verify bobbin insertion (the “P” orientation in the bobbin case) and that the thread is seated in the case channel.
  • Inspect sensor settings: the PR1000e can monitor upper and bobbin threads; you can toggle sensors in Settings when specialty materials cause false triggers.
• Common on‑screen messages
  • “Check upper thread”: Rethread the active needle using the guided path and auto‑threader; confirm the thread is seated under each guide.
  • “Needle threader error”: Trim thread tails short, return the needle bar to the correct position on screen, and try the auto‑thread routine again.
  • If a stop occurred mid‑design, use the +/-1,000 stitch jump to return precisely to your stitch point after clearing the issue.
• Hoops and prevention notes
  • The hoop/arm auto‑sensing prevents stitching with the wrong hoop and helps avoid frame strikes. Follow the on‑screen hoop guidance before you press Start.

Resources used: PR1000e Help system and maintenance guidance; Perplexity maintenance/user feedback; PR1000 Productivity Overview features for recovery and hoop sensing.

Ready to put these into practice? Start with a simple logo on a tee: hoop with the right stabilizer, use the Snowman marker for instant alignment, preview with live view (or scanning if upgraded), lock the screen—and stitch.

7. Professional Workflow Optimization

7.1 Multi-Machine Integration and Production Scaling

When you need more output without more chaos, link PR1000e units for coordinated runs. The platform supports linking up to 4 machines to a single computer, so you can schedule jobs across heads instead of babysitting one machine at a time. A built-in queue accommodates up to 100 designs, extending unattended stitch time and reducing operator touchpoints.

For batch work, leverage on-board memory strategically. The PR1000e offers 1.7MB of internal storage (up to 500,000 stitches), which is well-suited for preloading frequently used commercial designs so transfers don’t bottleneck production. Combine this with the machine’s thread workflow aids—InnovaChrome LED guidance, auto threading, and Thread Spool Reset—to keep turnarounds tight.

Dial in quality at speed by adjusting individual needle speeds from 400–1,000 SPM for specialty threads or delicate fabrics, then let the 10-needle architecture chew through multi-color designs with minimal stops. If an interruption occurs, the +/- 1,000-stitch jump helps you recover quickly on high stitch-count jobs without losing alignment.

7.2 Software Integration and Advanced Digitizing

For pro-grade editing and digitizing, the PR1000e integrates with Brother’s PE-DESIGN 11 software suite. This unlocks advanced tools for custom stitch creation and sophisticated design development (including photo-to-stitch workflows). File input is flexible, supporting various brother embroidery file formats—use USB for rapid transfers; embroidery card compatibility is also supported.

On-machine, you can perform precise edits when a fast turnaround matters:

• Mirror, rotate (1/10/90 degrees), move, copy/duplicate, group/ungroup
• Zoom and pan to align multi-element compositions accurately
• Resize with automatic stitch recalculation and manual density control (via the Entrepreneur Pro Upgrade)
• Change colors and preview sequencing, then assign threads to needles efficiently

Add the PR1000/PR1000e upgrade to scan the entire hoop for a real-fabric background on the LCD, then position and preview designs in context. The upgrade also enables pattern connection by camera for quicker borders/repeats, Auto Stipple and outline recognition to generate fills around existing shapes, and Color Shuffling to present palette options (Random, Vivid, Gradient, Soft) that you can iterate until they fit the fabric and brief.

8. Conclusion: Is the PR1000e Right for You?

If you’re a business or a serious hobbyist ready to level up, the brother commercial embroidery machine PR1000e delivers 10-needle efficiency, camera-assisted placement, and upgradeable scanning that streamline multi-color production. Plan for space and a stable, permanent setup (it’s a substantial machine), then weigh ROI against your order volume: fewer thread changes, faster recoveries, and smarter color/thread workflows add up quickly. Need even more content and wireless perks? Consider the PR1055X. Otherwise, the PR1000e’s core strengths cover most professional needs with room to grow.

9. Frequently Asked Questions

9.1 Q: How much does the PR1000e weigh?

- A: The listed weight is 92.8 lbs. In practice, owners recommend a permanent, well-supported location due to its size and mass.

9.2 Q: What warranty coverage does the PR1000e include?

- A: Coverage is described as 1-year full, 5-year circuit boards, and 25-year chassis. Terms can vary by region—confirm specifics with your authorized Brother Innov-ís dealer.

9.3 Q: Where should I buy—are authorized dealers required?

- A: Yes—purchase through an authorized Brother Innov-ís dealer for proper setup, training, and warranty support. Brother’s materials also direct shoppers to brother-usa.com or local authorized dealers.

9.4 Q: Are financing options available?

- A: Many authorized dealers offer financing programs. Availability, rates, and terms depend on the dealer—ask your local dealer for current options and packages.
