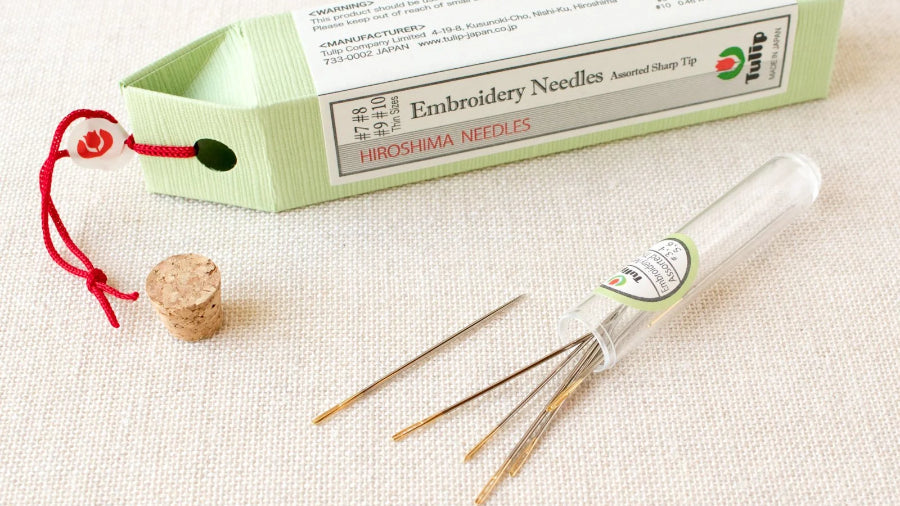

Understanding Needle Parts: Anatomy, Types, and Applications

1. Introduction to Needle Components and Their Significance

Needles seem simple, but their anatomy drives precision, safety, and efficiency—whether delivering medication or forming flawless stitches. This guide clarifies core parts, sizing systems, and the contrasts between medical and sewing needles. You’ll also find practical selection rules, maintenance insights, and troubleshooting tips to keep outcomes consistent and safe.

This guide also touches on tools that support stitch quality, such as magnetic hoops for embroidery machines that help stabilize fabric.

2. Core Components of Needles: Medical and Sewing Breakdown

Different purposes demand different designs. Here’s how medical and sewing needles diverge, part by part.

2.1 Medical Needle Anatomy: Hub, Shaft, Bevel, and Lumen

• Hub: The anchor that locks to a syringe. Often color-coded for quick gauge ID and designed for a tight, leak-proof seal. Hubs are typically plastic or metal.
• Shaft: The slender body that enters tissue. Common stainless steel alloys include AISI 300 (flexible, corrosion-resistant) and AISI 420 (harder, used in older, thicker needles). Alloy choice balances rigidity, flexibility, and corrosion resistance.
• Bevel: A precision-ground, angled tip (about 12°–30°) engineered for smooth entry with minimal trauma.
• Lumen: The hollow channel through the shaft that enables fluid flow; its diameter matches target flow rates and pressures.

Additional features: Surgical needle body types (round, cutting, reverse cutting) and curvatures (¼, ½, ⅝ circle) are selected for access and tissue compatibility.

Materials: Stainless steel dominates for sterility, strength, and corrosion resistance; hubs may be plastic or metal.

2.2 Sewing Needle Anatomy: Shank, Groove, Eye, and Scarf

• Shank: The upper section that mounts in a machine or is held by hand; may be flat or round for machine compatibility.
• Shaft (Blade): The main body engineered to pierce fabric with minimal friction; sometimes tapered or reinforced for tougher materials.
• Groove: A channel along the shaft that protects the thread as it travels, reducing abrasion and fraying.
• Eye: The hole near the tip sized and reinforced for the intended thread and application.
• Scarf: A notch above the eye that helps the bobbin hook pick up the loop, preventing skipped stitches.

Point types: Sharp for woven fabrics and leather, blunt for delicate materials, ballpoint for knits.

Materials: Typically steel, sometimes with coatings for durability and lower friction.

Functional focus: Medical needles prioritize sterile fluid delivery and tissue penetration; sewing needles prioritize thread handling and fabric protection.

3. Needle Specifications: Gauge, Length, and Selection Guidelines

Choosing the right needle means matching specs to the task—whether a superficial injection or dense embroidery.

3.1 Understanding Gauge and Measurement Systems

Gauge (medical): Uses the Stubs Iron Wire system. Higher numbers mean thinner diameters (e.g., 27-gauge is finer than 14-gauge).

NM (sewing): The European Number Metric equals shaft diameter in hundredths of a millimeter (NM 70 = 0.70 mm). Higher numbers indicate finer needles.

Length: Medical needles range from about 5/16 inch for superficial injections to 3½ inches for deep intramuscular delivery. Sewing needle lengths vary for fabric thickness and stitch needs; embroidery needles commonly span 70–110 mm.

Color coding (medical): Hubs are often color-coded by gauge (e.g., blue for 22-gauge, red for 25-gauge, white for 27-gauge), but confirm manufacturer charts.

3.2 Application-Based Needle Selection

Medical

• Intramuscular (IM): Gauge 22–25; length 1–1.5 inches for adults; 5/8 inch for infants. Consider patient size.
• Subcutaneous (SC): Gauge 23–25; length 5/8 inch.
• Intradermal (ID): Gauge 25–27; short length for superficial placement.

Sewing

• Fabric type: Thicker needles (e.g., NM 100/16) for denim or heavy fabrics; finer needles (e.g., NM 70/10) for silk or delicate fabrics.
• Specialized points: Ballpoint for knits, wedge-point for leather, sharp for wovens.

Key Takeaway: Selection is context-driven. In medicine, match gauge and length to injection type, anatomy, and viscosity. In sewing, match size and point to fabric and thread. Standardization (color coding, NM) helps, but confirm specifics. For fabric stability during stitching, a magnetic frame for embroidery machine supports even tension.

4. Medical vs. Sewing Needles: Structural and Functional Differences

Medical and sewing needles are engineered for different missions—sterile fluid transfer versus reliable stitch formation.

4.1 Design and Material Contrasts

Medical needles (hollow precision)

• Hollow shaft (lumen) enables smooth fluid flow.
• Hub, stainless steel shaft (AISI 300 or 420), and a beveled tip for minimal tissue trauma.
• Stainless steel offers corrosion resistance, sterility, and strength.

Sewing needles (solid strength)

• Solid metal shaft for fabric penetration; no lumen.
• Shank, shaft, groove, eye, and scarf manage thread and stitch formation.
• Typically steel; coatings may reduce friction or extend life.

For sewing, consistent hooping with magnetic embroidery frames helps hold fabric evenly while the needle forms stitches.

4.2 Terminology and Specialized Features

• Hub vs. Shank: Hub (medical) connects to syringes; shank (sewing) fits machines or the hand.
• Bevel vs. Point types: Bevel (medical) reduces pain and trauma; sewing points vary by fabric (sharp, ballpoint, wedge, etc.).
• Lumen vs. Eye: Lumen (medical) enables fluid flow; eye (sewing) carries thread.

Surgical nuance: Suture needles may have swaged ends, round or cutting bodies, and different curvatures for specific tissues.

5. Practical Applications and Troubleshooting

Best practices keep procedures smooth—whether you’re assembling a syringe or stitching a layered garment.

5.1 Medical Protocols: Syringe Assembly and Safety

Step-by-step

1. Select the correct needle and syringe: Match gauge and length to injection type.
2. Attach the needle: Ensure a secure, leak-proof hub connection.
3. Draw up the fluid: Use barrel markings for accuracy.
4. Remove air bubbles: Tap and expel excess air for precise dosing.

Technique and safety

• Angle and depth vary by IM, SC, or ID injection.
• Bevel up for smoother entry.
• Single-use policy for sterility; use proper sharps disposal; do not recap used needles.

5.2 Sewing Techniques: Fabric Compatibility and Garment Embroidery

Needle–fabric pairing

• Lightweight (silk, voile): Finer needles (Size 70/10).
• Heavy (denim, upholstery): Thicker needles (Size 100/16).
• Knits/stretch: Ballpoint to prevent snags.
• Leather/suede: Wedge-point for clean perforations.

Specialized needles

• Twin needles for parallel decorative lines.
• Quilting needles for layered cotton or polyester.

Garment embroidery: The MaggieFrame advantage

Magnetic embroidery hoops like MaggieFrame ensure even tension. The magnetic system adapts to varying thicknesses, holds securely without screws, and saves time. By maintaining consistent tension, magnetic embroidery hoops reduce skipped stitches, thread fraying, and needle bending—especially on challenging fabrics.

5.3 Solving Common Issues: Breakage, Clogging, and Stitch Defects

Medical

• Bending: Inspect and discard bent or damaged needles.
• Clogging: Match gauge to fluid viscosity; thicker fluids need lower-gauge (wider) needles.

Sewing

• Replace needles about every 8 hours of use to prevent breakage and defects.
• Control lint: Clean the bobbin case and needle area.
• Match thread to eye: The eye should be about 40% larger than the thread.

MaggieFrame’s role

For sewing machines, a magnetic embroidery hoop that holds fabric securely and evenly helps reduce skipped stitches and thread breakage, including on complex or layered garments.

Best practices recap

• Replace needles regularly.
• Match needle type to fabric and thread.
• Clean and maintain the machine.
• Use quality tools for consistent results.

6. In-Depth Sewing Needle Anatomy: Beyond the Basics

Stitch quality is the product of subtle features working together: shank alignment, groove-thread fit, scarf depth, eye size, and point type.

6.1 Shank, Groove, and Scarf: The Trio Driving Stitch Quality

• Shank: Ensures alignment in the machine; misalignment can cause skipped stitches and thread breaks.
• Groove: Cradles the thread to minimize friction; must match thread size to prevent shredding and tension issues.
• Scarf: Lets the bobbin hook pass close to the loop for reliable lock stitches; length varies by fabric needs.

6.2 Eye and Point Variations for Specialized Stitching

• Eye: Sized and shaped for the thread; heavy-duty versions are reinforced.
• Point types: Sharp for wovens (clean pierce), ballpoint for knits (preserves elasticity), blunt for very delicate materials.

Choosing the right eye/point pairing protects fabric and thread and reduces skipped stitches. Proper hooping with magnetic hoops for embroidery further supports smooth stitch formation.

7. Needle Maintenance and Material Science Insights

Performance and safety depend on care and composition—what you do with a needle and what it’s made of.

7.1 Longevity Practices: Cleaning, Storage, and Wear Detection

Medical needles: Single-use only. Do not clean or resharpen. Discard immediately after use in sharps containers and never recap by hand.

Sewing needles: Reuse with care. Clean off lint/residue, store in protective cases, and replace at signs of dullness, bending, skipped stitches, or fabric snags—often every 8–10 hours of use.

7.2 Material Impact: Stainless Steel, Alloys, and Performance

Stainless steel leads for durability, corrosion resistance, and biocompatibility; different grades balance flexibility and hardness.

Performance factors

• Durability: High tensile strength and corrosion resistance.
• Flexibility: 304 offers bend-without-break characteristics.
• Hardness: 420 supports sharp, durable edges; trades some flexibility.
• Biocompatibility: Critical for medical use; finish quality and tip sharpness reduce trauma.

Application suitability

8. Conclusion: Mastering Needle Knowledge for Precision and Safety

Understanding parts, specs, and materials empowers safer injections and better stitches. By choosing the right needle, maintaining it properly, and managing fabric with consistent hooping, you’ll improve outcomes and reduce risk across both medical and sewing tasks.

9. Frequently Asked Questions (FAQ)

9.1 Q: What is the difference between gauge and length?

A: Gauge is diameter (higher gauge is thinner); length is the distance from hub to tip. In medical use, gauge affects flow and comfort; length controls reach. Sewing sizes use the NM system, where higher NM means a finer needle.

9.2 Q: How often should sewing needles be replaced?

A: About every 8–10 hours of use, or sooner if you see dullness, bending, skipped stitches, or fabric snags.

9.3 Q: Why do medical needles have color-coded hubs?

A: Color coding helps identify gauge quickly to reduce selection errors. Colors can vary by manufacturer, so always verify their chart.
