Mastering Cap Embroidery: Techniques for Professional Results

1. Introduction to Cap Embroidery Essentials

Cap embroidery blends creativity with technical precision. Curved fronts, seams, and varied fabrics make caps trickier than flats. This guide covers setup and hooping, core tools, machine settings, digitizing for curves, structured vs. unstructured hats, placement beyond the front panel, troubleshooting, and advanced materials—so you can produce crisp, durable results.

2. Cap Embroidery Fundamentals: Setup, Hooping, and Stitching

2.1 Preparation and Material Selection

Success begins before the first stitch.

• Structured caps (e.g., snapbacks) use buckram for a rigid, stable front—ideal for detailed embroidery.
• Unstructured caps (e.g., dad hats, bucket) are soft and need extra stabilization.

Preparation steps:

• Clean and press the cap to remove dust/oils and smooth the surface.
• Remove cardboard inserts; flatten the brim if needed for positioning.
• Stabilizers: tear-away for structured caps; cut-away or double tear-away for unstructured to curb shifting and puckering.
• Test on spare caps to refine settings and workflow.

Pro tip: Twill and wool blends suit structured caps; cotton and mesh are common for unstructured. Avoid overly thick fabrics when possible.

2.2 Hooping Techniques for Curved Surfaces

The goal is even, tight, and stable hooping throughout the run.

Structured caps:

• Use a cap driver on multi-needle machines to align precisely.
• Find and mark the center seam; align to the hoop’s notch.
• Pull down the sweatband, lock the strap, and confirm the bill cannot rotate—if it does, re-tension.

Unstructured caps:

• Add extra stabilization (cut-away) and use alignment guides.
• Digitize a placement line near the brim edge.
• Use clips/forceps to control fabric shift.

Reminder: magnetic embroidery hoops are not suitable for caps.

Expert insight: "If you can get it flat, you can embroider it." Don’t rush hooping; it’s the foundation of clean results.

2.3 Stitch Execution and Quality Optimization

Key machine settings:

• Needle choice: 75/11 sharp for most; 90/14 for thick or structured; an 80/12 can help over tough seams.
• Run a test sew on scrap to verify alignment, tension, and quality.
• Pause to inspect positioning and registration; adjust if needed.
• Trim loose threads after removal from the frame.

Advanced tips:

• Digitize for curvature; sew bottom-up and center-out to reduce distortion.
• For hand embroidery, match needle/thread weight to fabric; use a small hoop for tight areas.

3. Essential Equipment and Materials for Successful Cap Embroidery

3.1 Core Tools: Frames, Needles, and Threads

• Cap-specific hoops/frames: Use frames designed for curved fronts; magnetic hoops are not suitable for caps. If you use a magnetic embroidery hoop on garments, switch to cap frames for hats.
• Needles: Titanium 75/11–90/14 for machines (structured/thicker fabrics). For hand work, gold-tipped needles offer durability and control.
• Threads: 40-weight polyester for machine embroidery; six-stranded floss for hand embroidery.

Pro tip: Cap frames prevent slippage and puckering on curved surfaces.

3.2 Stabilizers and Design Digitization Tools

• Stabilizers: Tear-away or sticky-back maintains tension and limits distortion. For stretchy/knit hats, oversize the stabilizer relative to the design.
• Digitizing: Adjust density and sequence for curves; keep stitch angles supportive of the cap’s shape.
• Backing: Buckram in structured caps often suffices; unstructured/mesh needs stabilizer to hold shape.

Best practices:

• Secure the brim first, center the design, and achieve a snug fit in the embroidery frame.
• Monitor first stitches and periodically recheck tension.
• Trim threads and remove stabilizer carefully.

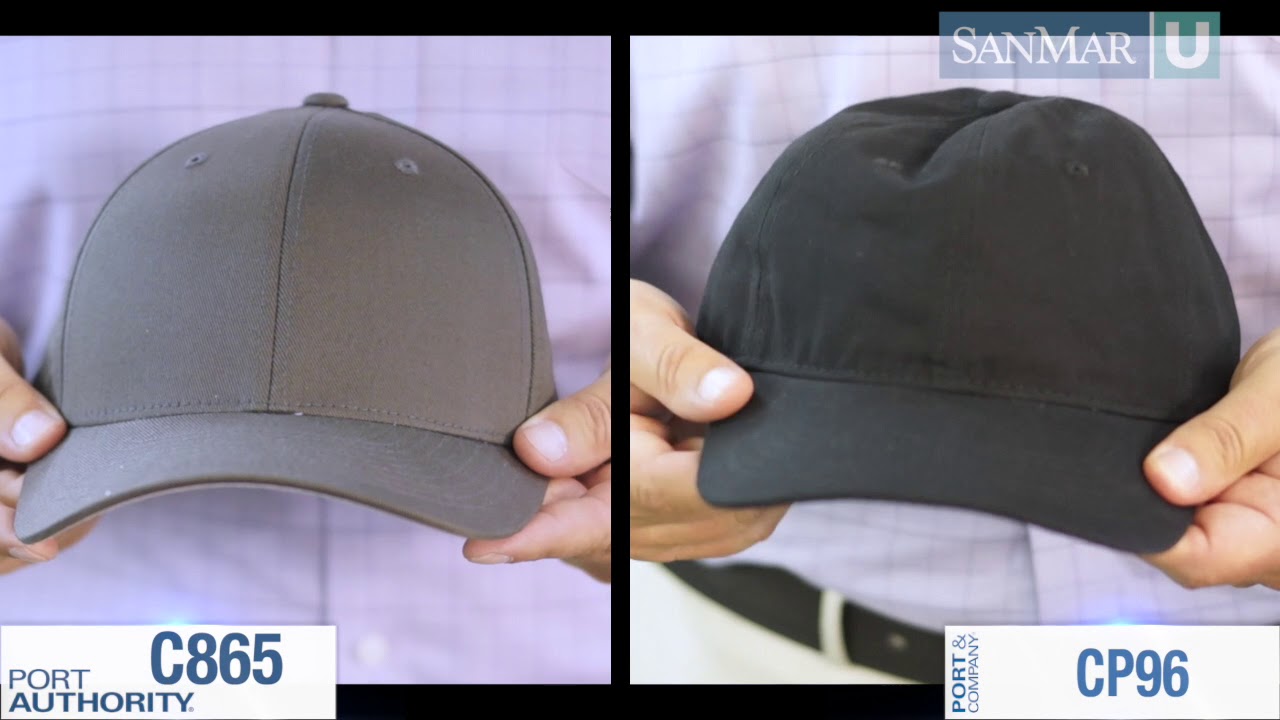

3.3 Structured vs. Unstructured Hats: Fabric and Backing Guide

Structured hats:

• Rigid crown with buckram; heavier fabrics.
• Buckram acts as built-in stabilizer.
• Great for detailed logos and corporate/team work.

Unstructured hats:

• Soft, collapsible crown; cotton or mesh.
• Requires interfacing or tear-away backing.
• Best for simpler, casual designs.

4. Troubleshooting Common Cap Embroidery Issues

Even pros face distortion, registration slip, and needle/thread breaks. Here’s how to solve them.

4.1 Solving Design Distortion and Registration Errors

Why distortion happens:

• Improper digitizing, weak underlay, or wrong sequencing—all amplified by cap curvature.

Fixes that work:

• Underlay: Edge-run or fill underlay stabilizes fabric.
• Pull compensation: Offset stretch to maintain true shapes.
• Sequence: Stitch bottom-up and center-out for stability.
• Simplify: Reduce fine detail; favor satin on curves.
• Placement: Avoid the brim/edges; keep height ≤ 2.25 inches.
• Pre-shrink in software to counter egg-shaped results.

Forum wisdom: A design that sews flat may fail on a cap if not digitized for curves.

4.2 Preventing Needle and Thread Breaks

Root causes: Too fast, wrong needle, dense fills, cheap thread, poor tension, or lint buildup.

Critical solutions:

• Needles: 75/11 or 80/12 sharp for most; 90/14 for leather/heavy buckram. Replace weekly.
• Speed: 500–600 SPM on structured or complex designs; go slower near thick seams.
• Density: Don’t overcrowd; match density to hooping area.
• Thread quality: Use high-quality embroidery threads.
• Tension/Stabilizer: Lower tensions slightly; tear-away for standard, cut-away for stretch.
• Maintenance: Clean the thread path regularly.

Pro tip: If you hear a popping sound or see the cap forced down, re-check hoop tension and presser foot height.

5. Digitizing and Placement Strategies for Curved Caps

5.1 Digitizing Adjustments for Cap Surfaces

• Order: Always bottom-up and center-out to prevent buckling.
• Stitch types/density:

• Satin density: 4–5 points (tenths of a millimeter), with 5 points favored to limit distortion.
• Compensation/underlay: Apply pull compensation; add running/edge-run underlay to anchor fabric.
• Simplify: Avoid tiny text or intricate shading on curved panels.
• Curvature: Align stitch angles to the cap’s curve; add density in tight corners.
• Keep separate files for caps vs. flats.

5.2 Beyond the Front Panel: Side and Back Placement Techniques

Side embroidery:

• Use back clips to keep panels taut and prevent “downhill” drift.
• Stabilizers: single tear-away for twill/mesh; double or cut-away for stretch.
• Start bottom-up/center-out; use small logos/initials; avoid 3D on sides.

Back embroidery:

• Use a 12cm round hoop with cut-away.
• Align back seam to 12/6 o’clock marks; keep at least 1/2 inch from edges.
• Ideal for URLs, short quotes, or secondary marks.

Business insights (example add-ons):

• Single side: base price
• Both sides: base + $3
• Front + one side: base + $3
• Front + both sides: base + $6

Tools/stabilizers quick picks:

6. Advanced Techniques for Challenging Cap Features

6.1 Managing Center Seams in Structured Caps

Hooping/stabilization:

• Tight hooping on a cap frame to flatten the seam.
• Double layers of tear-away around the center seam.
• Pre-curve the cap to its natural arc before hooping.

Digitizing for seams:

• Start center-out to stabilize the toughest area first.
• Add a center-run underlay across the seam.
• Use bold satin lettering; avoid micro detail at the seam.
• Balance density; test on scrap caps to dial it in.

Materials and settings:

• Temporary adhesive helps bond fabric to stabilizer.
• Lower speed to 50–70% of max; keep tension consistent.

Common challenges:

If you rely on magnetic frames for embroidery machine for garment jobs, always return to cap frames when tackling center seams on hats.

6.2 Embroidering Mesh and Foam-Backed Caps

Mesh caps:

• Secure with a cap hoop; set side designs to the far right.
• Use a frameout to pause, pin mesh topping, and resume.
• Stretch mesh flat; use clips to maintain tension.

Foam-backed (3D puff) workflow:

1) Hoop and stitch an outline to perforate foam.
2) Apply foam with adhesive; extend foam ~1 inch beyond the design.
3) Tack foam, then cover with longer satin stitches; increase density by ~50%.
4) Finish with quick heat passes; trim residual foam.

Speed/needle picks:

Key challenges:

7. Optimizing Machine Settings for Different Cap Types

7.1 Parameter Adjustments by Cap Material

Structured caps (e.g., trucker):

• Speed: 450–600 SPM for fewer breaks and cleaner registration.
• Stabilizer: Cut-away for durability or tear-away for lighter designs; buckram adds support.
• Needle: Sharp 75/11 or 80/12. Lower cap driver height and set presser foot to hold fabric firmly. Steam pre-softens fabric.
• Hooping: Use clips if needed; start with a full bobbin.

Soft/stretchy caps:

• Speed: 600–800 SPM (slow for intricate work).
• Stabilizer: Tear-away; sticky-back for extra hold.
• Needle: Ballpoint 75/11. Tension: 120–150 grams.
• Check thread path; thinner needles can reduce breaks.

Tightly woven caps:

• Speed: 600–800 SPM; slower in dense areas.
• Stabilizer: Tear-away or cut-away.
• Needle: Sharp 75/11. Tension: 120–150 grams. Test sew first.

General best practices:

Pro tip: To sew close to the brim, adjust X/Y limits and always trace to avoid hitting the cap ring.

7.2 Garment Embroidery Equipment Efficiency

Traditional screw hoops can be slow and tiring on garments. Enter magnetic hoop systems (for garments only—not for caps). Using magnetic hoops for embroidery machines can transform throughput on shirts, jackets, and sweatshirts.

Efficiency gains:

• Time savings: Hooping a garment with magnetic machine embroidery hoops can take ~30 seconds vs. ~3 minutes with screw hoops.
• Fewer defects: Even tension reduces misalignment and waste.
• Ergonomics: Less strain—no constant screw tightening.

Why it matters: High-volume garment embroidery gains hours per week in productivity—while caps still require cap frames.

8. Conclusion: Key Takeaways for Flawless Cap Embroidery

Flawless cap embroidery hinges on tight hooping, the right stabilizer, digitizing for curvature (bottom-up, center-out), and material-matched settings. Test, adjust, and practice on spare caps to lock in quality. For garments, magnetic hoops for embroidery can speed production, but stick with cap frames for hats.

9. FAQ: Cap Embroidery Questions Answered

9.1 Q: What is the maximum design height for cap embroidery?

A: Generally 2 to 2.25 inches; taller designs risk distortion and thread breaks near the brim and seams.

9.2 Q: What stabilizer should I use for mesh or unstructured caps?

A: Use a cut-away or double tear-away. Sticky-back helps on extra-stretchy fabrics.

9.3 Q: Why does my design look distorted on a cap but fine on flat garments?

A: It wasn’t digitized for curves. Use bottom-up, center-out sequencing with pull compensation and underlay.

9.4 Q: How do I hoop a cap for embroidery?

A: Use a cap frame/driver, align the center seam to the frame’s mark, pull back the sweatband, and secure tightly. Use back clips on side placements.

9.5 Q: Can I embroider on the brim or visor of a cap?

A: Sometimes, depending on machine and frame compatibility. Plan carefully; not all caps or setups support brim embroidery.

9.6 Q: What needle size is best for cap embroidery?

A: Sharp 75/11 or 80/12 for structured caps; ballpoint 75/11 for soft/stretchy. Move to 90/14 for thick seams.

9.7 Q: How can I prevent puckering and thread breaks?

A: Tight hooping, correct stabilizer, tension at 120–150 grams, slower speeds on dense/structured areas, regular needle changes, and quality thread.

9.8 Q: Is it possible to embroider on straw hats or visors?

A: Straw is challenging and stiff. Hand embroidery may work with care, but machine embroidery is generally not recommended.
