1. Introduction to Kenmore Ergo 3 Capabilities

The Kenmore Ergo 3 is a versatile machine that combines sewing and embroidery in one unit, letting users switch tasks without changing setups. It appeals to enthusiasts who value vintage charm alongside reliable performance, echoing the feel of classic janome embroidery machine designs while meeting modern workflow needs.

Though discontinued, the Ergo 3 remains relevant thanks to robust construction and dependable stitching. Longevity depends on maintenance such as regular oiling and lint removal. With proper techniques and tools, users can integrate this vintage workhorse into today’s processes, balancing traditional craftsmanship with current efficiency.

2. Essential Operations: From Threading to First Stitch

2.1 Threading Mastery & Bobbin Setup

Use Style A or Type 15 bobbins, with metal bobbins preferred for durability. Load the bobbin so the thread exits clockwise from the bobbin case. For the upper thread, follow the manuals path: spool pin, tension discs, and take-up lever.

Adjust tension before production. Fine-tune bobbin tension with the dial, and set upper tension to "auto" for embroidery. Test on scrap fabric to avoid thread breaks or uneven stitching.

2.2 Hoop Selection Strategies for Different Fabrics

The Ergo 3 supports 4x4-inch hoops. For efficiency and stable fabric control, magnetic embroidery hoops such as MaggieFrame models with N50-grade magnets and PPSU construction can save up to 90% of hooping time. They also handle various thicknesses while minimizing hoop burn—ideal for garment embroidery.

3. Decoding Error Codes & Mechanical Troubleshooting

3.1 #01/#04 Motor Failures: Diagnosis & Repair

01 carriage motor or #04 feed motor failures require methodical checks. Start by inspecting wiring between the motors and the A control board. Then test motor resistance with a multimeter; a healthy reading is 6 ohms or higher. Replace the motor if resistance is below spec or open. If motors test fine but errors persist, replace the A control board.

3.2 Preventing Feed Dog Jams & Stitch Skipping

Prevent jams and skips with routine cleaning. Use a mini vacuum or compressed air to clear lint around the feed dog, and apply a small amount of sewing machine oil to keep moving parts smooth. Well-tensioned frames help too; janome magnetic embroidery hoops distribute tension evenly, reducing shifts and skips while speeding setup.

4. Janome Compatibility & Accessory Cross-Use

4.1 Hoop Interchangeability: MC9700 vs Ergo 3

The Kenmore Ergo 3 and Janome MC9700 share components and accessories, allowing cross-compatibility. The janome hat hoop fits both, and mixed-brand shops can streamline swaps using universal adapter systems. Magnetic hoops with robust clamping translate smoothly between the two, cutting downtime.

4.2 Firmware Workarounds for Discontinued Models

As a rebranded MC9700, the Ergo 3 often benefits from Janome firmware updates. Because Kenmores division is discontinued, Janomes MC9700 resources can maintain functionality and accessory compatibility. Updated card readers and memory cards aligned to Janome specs help preserve access to modern designs and janome embroidery machine hoops.

5. Vintage Machine Preservation Techniques

5.1 Lubrication Points & Plastic Care

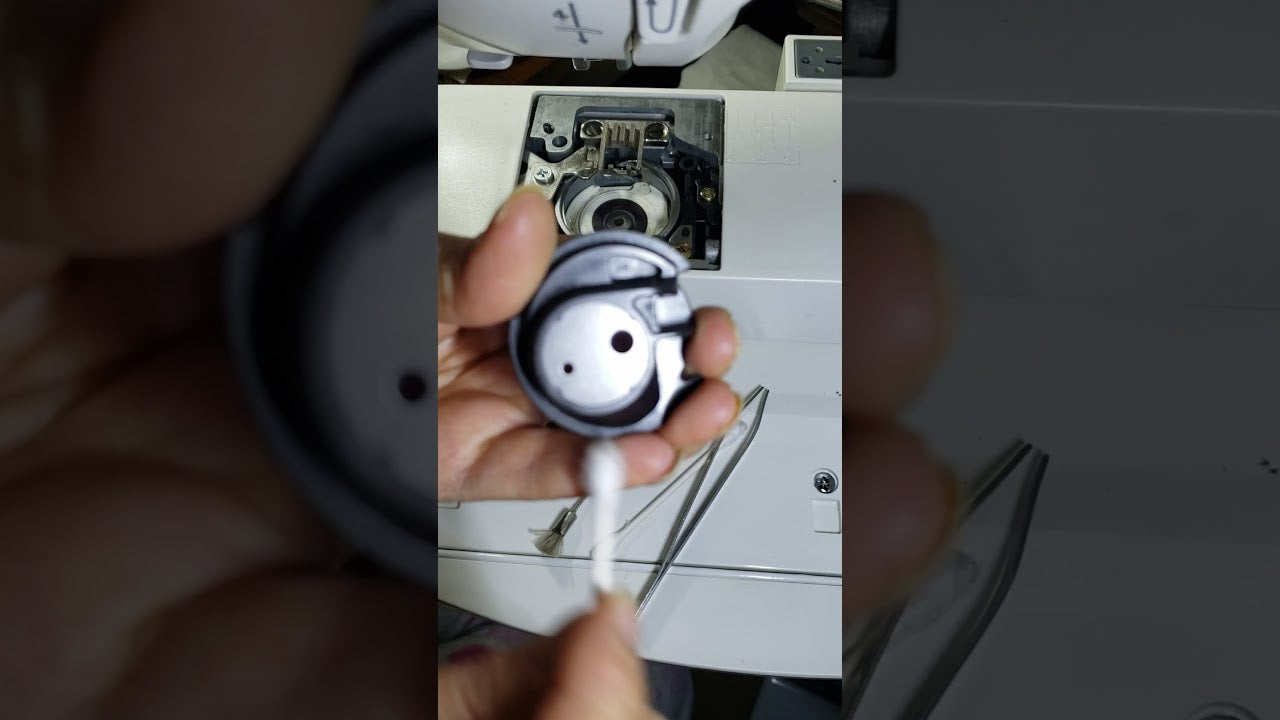

Lubricate belt pulleys, motor shafts, and the hook race assembly. Apply silicone-based sewing machine oil with a syringe for precision and to avoid contaminating belts or fabric. Clean first so debris doesnt trap oil. For plastics, avoid harsh chemicals; use a microfiber cloth dampened with distilled water or mild detergent. A light silicone spray on moving plastic parts reduces friction.

5.2 Preventing Yellowing in Storage

Protect plastics from UV to prevent yellowing and brittleness. Store the machine in a cool, dry place out of direct sunlight, and use microfiber covers to shield against dust and light. Durable modern components like a janome magnetic hoop can ease upkeep while preserving appearance and function.

6. Modernizing Workflows: File Conversion & Connectivity

6.1 .JEF to .SEW Conversion Workflow

To use modern designs, convert .JEF/JEF+ files to .PES with tools like Embrilliance, then import into Kenmores Customizer Software to export .SEW. Respect the 4.3" x 5" maximum embroidery area, and split any design with more than 12 color stops. Stable, modern magnetic hoops lower misalignment risk during stitching.

6.2 CF Card Alternatives for Windows 11

As ATA PC card systems fade, USB-to-CF adapters help transfer designs from Windows 11. Cloud storage simplifies backups and access. Position magnetic systems as future-proof: they simplify setup, maintain placement, and scale well with increased production.

7. Conclusion: Maximizing Your Ergo 3's Potential

Regular maintenance, smart file conversions, and accessory upgrades can unlock the Ergo 3s full value. Keep it clean and lubricated, convert designs correctly, and adopt magnetic hoops for embroidery machines to reduce setup time while improving consistency—especially in higher-volume work.

8. FAQ: Kenmore Ergo 3 Expert Insights

8.1 Q: Are there any myths about Kenmore Ergo 3 firmware updates?

A: Yes. A common myth is that the Ergo 3 cannot receive firmware updates. As a rebranded Janome MC9700, users can often rely on Janomes firmware resources to maintain functionality and accessory compatibility.

8.2 Q: Where can I source Janome-compatible parts for the Kenmore Ergo 3?

A: Janome-compatible parts can be sourced from online retailers and parts suppliers. Websites like Sears PartsDirect and PatternReview.com provide parts lists and manuals that assist with identifying components.

8.3 Q: What is the value of a vintage Kenmore Ergo 3 machine?

A: Value varies by condition, accessories, and demand. Well-maintained units with original accessories can range widely, and collectors prize their solid build and dual sewing-and-embroidery functionality.
