Macpherson Meistergram Embroidery Machines: Complete Guide to Models, Maintenance & Commercial Applications

1. Introduction to Macpherson Meistergram Technology

Since 1933, Macpherson Meistergram has been a cornerstone in the commercial embroidery world—the "classic Cadillac" for reliability and innovation. Over the decades, Meistergram has earned a reputation for pioneering patents, robust engineering, and unwavering customer support among embroidery professionals and businesses.

This guide explores Meistergram’s legacy and today’s capabilities. We detail technical specifications from the versatile GEM 1500 series to the lightning-fast 900 XLC, then map out purchasing (dealers, support, financing) and essential maintenance to keep your equipment running for years. Whether you’re a seasoned operator, a business owner weighing ROI, or simply curious about the evolution of embroidery technology, this overview will help you navigate Meistergram with confidence.

2. Technical Specifications Across Meistergram Models

Meistergram machines are engineered for commercial-grade performance, blending speed, precision, and automation. Below are the technical highlights and model variations that set the lineup apart.

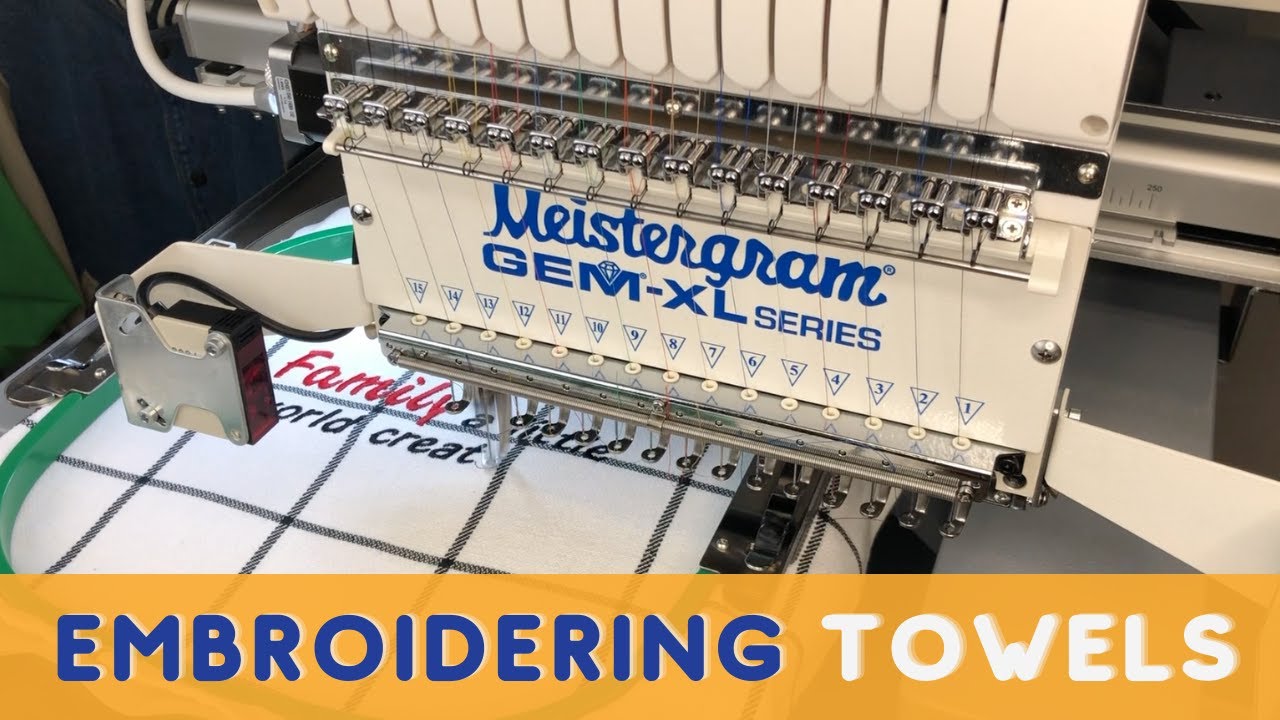

2.1 GEM Series: From 1502 to 1512 Multi-Head Configurations

Across the GEM series, automation is standard: automatic color changes, thread trimming, break detection, and multi-task operating systems. Machines feature 7"–10" HD touchscreens, on-board lettering, and preset hoop selection to streamline operation.

Special features include:

• Laser tracing to preview placement and trace within the hoop before stitching.
• 270° cap system for wide coverage on caps.
• Preset hoop selection for faster setup and fewer errors.

Production versatility spans jackets and backpacks (GEM 1500XL), caps, and large garment backs (900 XLC). Multi-needle and multi-head configurations cut downtime and reduce thread changes.

Expect rugged build quality: industrial-grade servo motors, robust frames, and safety features like emergency stop. Warranties reach up to 10 years on the frame structure and 5 years on drive train components. Most models include a generous starter kit—10–12 embroidery machine hoops, cap frames, a tool kit, starter thread, and lifetime support.

Key applications include catalog businesses, military suppliers, and gift stores where high-volume, high-quality embroidery is essential.

2.2 Specialized Features for Commercial Production

What makes Meistergram a production workhorse? These advanced features drive throughput and precision:

• Laser tracing systems to confirm design placement within the hoop.
• 270° cap framing for extensive coverage.
• Auto-voltage switching for different power environments.
• Workflow automation: auto thread trimming, break detection, multi-task programming, and the ability to load designs while stitching.
• User experience: multi-head options, quick-change hoops, industrial servo motors, HD touchscreens, and on-board lettering.

Warranty and support:

• 1 year for parts and labor
• 3 years for electronics
• 5 years for drive train components
• 10 years for the frame structure

Training and lifetime technical support are included to sustain long-term commercial success.

3. Purchasing Guide: Dealers, Support & Financing Options

Ready to invest in Meistergram? Here’s how to navigate dealers, support, and financing.

3.1 North American Service Centers: Miami to Los Angeles

Meistergram’s U.S. presence includes:

• Miami Branch: 10850 N.W. 30th Street, Doral, FL 33172 Tel: 305-471-0200, Fax: 305-471-0243
• Los Angeles Branch: 2320 S. Hill Street, Los Angeles, CA 90007 Tel: 213-745-8844, Fax: 213-745-8855
• Carlstadt: Mentioned as a location; specific address not provided in available resources.

Commercial support services:

• Customer Support: Hotlines (888-463-4783) and online inquiry forms for technical help.
• Training: Included with every purchase, plus video tutorials on threading, tracing, and troubleshooting.
• Reputation: A legacy of workmanship and service since 1933.

3.2 Cost Analysis: New vs Refurbished Equipment

Flexible options fit a range of budgets and growth plans:

Financing and ROI:

• Synchrony Financing:
• GEM 1502TC: $22,000, with options as low as $306/month for 72 months, or 0% interest for 48 months.
• GEM 1502: 0% financing for 48 months (contact dealer for pricing).
• Used/Refurbished Models:
• Refurbished or used units (e.g., 2412) can lower upfront costs; pricing and ROI depend on machine condition and dealer offerings.

Every purchase includes access to support resources, downloadable brochures, live consultations, and on-site or remote training.

4. Maintaining Legacy Meistergram Systems

Vintage Meistergram machines are legendary for durability, but smooth performance requires know-how, patience, and smart modernization. Whether restoring a classic GEM or tuning a 900 XLC, the essentials below help keep stitches flawless.

4.1 Needle Depth & Hook Timing Adjustments

Skipped stitches, thread breaks, or mechanical "clack" often trace back to setup. The following steps—grounded in long-practiced procedures—form the foundation of longevity.

Needle depth adjustment:

1. Manual measurement: - Lower the needle to bottom dead center (180°). - Use a needle depth gauge so the tip just grazes the gauge.
2. Adjustment: - Loosen the lower ring screw on the needle bar, move up/down, then tighten.
3. Critical specs: - The needle should rise 2–3 mm from bottom dead center to form the loop.

Hook timing and synchronization:

1. Positioning: Move the head to a convenient needle (e.g., #1, #4, or #7).
2. Component check: Power down, remove covers, inspect the needle bar driver and fixing base.
3. Timing adjustment: Rotate the main shaft; the hook should pass just behind the needle as it rises 2–3 mm from bottom dead center (typically at 24°). Align behind the scarf and above the eye.
4. Verification: Rotate by hand to confirm smooth motion without interference.

Routine maintenance:

Repair procedures:

• Needle bar driver replacement: Power down, remove covers, loosen set screws, extract and inspect; replace fixing base if bent.
• Hook assembly maintenance: Confirm thread path and recheck timing after adjustments.

Troubleshooting:

Pro tip: Many older Meistergram systems share components and adjustment protocols with Barudan machines; consult appropriate manuals for deeper troubleshooting.

4.2 Modernization Strategies for Vintage Machines

While vintage systems are built to last, traditional hooping can slow garment embroidery at scale. Upgrading to a magnetic embroidery hoop transforms setup and consistency without altering your machine’s core strengths.

Why modernize with magnetic hooping?

Traditional screw-based hoops demand constant adjustments, increasing setup time, misalignment risk, and hoop marks. By integrating magnetic hoops for embroidery machines, you can:

• Slash setup time by 90%.
• Achieve consistent tension across fabric thicknesses.
• Protect fabrics by minimizing hoop burn.
• Reduce operator fatigue with quick on/off.

MaggieFrame: the practical upgrade.

MaggieFrame pairs industrial-grade durability with wide compatibility and simple operation. With over 17 sizes available for commercial machines, it fits common garment embroidery use cases on Meistergram models. These magnetic hoops are not intended for cap/hat hooping.

Real-world impact: Expect up to a 90% reduction in setup time and a 15% drop in embroidery defects—clear gains for shops handling large orders or complex designs.

5. File Compatibility & Software Solutions

Legacy Meistergram systems often rely on proprietary formats and older software. Here’s how to bridge vintage hardware with modern design workflows.

5.1 .DST Adaptation Challenges in Legacy Systems

Older machines frequently used the .LGO format on proprietary disks that standard PCs can’t read, limiting direct integration with modern software.

Key challenges:

• Hardware dependency: Only original machines could read those disks.
• Obsolescence: Modern software rarely supports .LGO.

Adapting to .DST:

Common issues include manual conversion needs and potential limits on large, complex designs.

Software workarounds:

• Conversion tools such as Gravostyle 5 and LogoStar for .LGO to .DST/.DSB.
• Free options like My Editor and Wilcom TrueSizer for basic edits.
• USB floppy drives and Windows 98 emulators to bridge legacy workflows.

OS compatibility:

• Some systems (e.g., LS100 CO2 laser) require older operating systems.
• Third-party conversion tools and select firmware updates via USB can help.

Best practices:

• Prioritize .DST for compatibility and color handling.
• Refer to user manuals for error codes and troubleshooting.
• Use multi-language support in newer models (e.g., GEM 1506) for smoother operation.

5.2 Wi-Fi Connectivity in Modern Models

With models like the PRO 1500 and updated software, Wi-Fi enables easy design transfers and multi-head synchronization—no more shuttling floppy disks.

Optimizing wireless design transfers:

• Load the design, select the active needle (e.g., #1 for centering), and position via the keypad.
• Use frame range tracing via the embroidery assistant (the "little man" icon) to confirm perimeter and hoop clearance.
• Start stitching once tracing confirms fit.

Workflow benefits include faster setup, reduced manual errors, and easier management of large or complex jobs.

6. ROI Analysis: Meistergram vs Competitors

Every second—and every stitch—impacts profit. Here’s how Meistergram stacks up on throughput, automation, and long-term value.

6.1 High-Speed Production Metrics: 900 XLC Case Study

The 900 XLC reaches 1,800 stitches per minute and handles caps to large jacket backs.

Key production metrics:

• Output: Up to 360 caps per hour in high-volume settings.
• Automation: Auto color change, thread trimming, break detection, and multi-task programming minimize downtime.
• Magnetic hooping advantage: By integrating magnetic embroidery frames like MaggieFrame for garment embroidery, you can reduce setup time by 90% and defects by 15%.

The bottom line: Saved minutes and avoided defects accelerate ROI, especially in fast-paced commercial environments.

6.2 Long-Term Cost Projections

It’s more than the upfront price. Warranty, maintenance, and support shape total cost of ownership.

Key takeaways:

• Warranty value: A 10-year frame warranty reduces long-term risk.
• Maintenance costs: Robust builds and automation keep ongoing costs competitive.
• Cost-effectiveness: Pairing with modern magnetic hooping extends life and boosts labor savings.

Strategic recommendation: For small-to-midsize businesses seeking versatility and cost-effective automation, the GEM series and 900 XLC—upgraded with magnetic hooping—offer a strong balance of price, productivity, and long-term value.

7. FAQ: Meistergram Machine Solutions

7.1 Q: How do I use thread break detection on a Meistergram embroidery machine?

A: Built-in detectors pause the machine when a thread snaps and notify you on the display. Rethread per the manual and resume stitching—ideal for minimizing waste in commercial settings.

7.2 Q: What should I do if my Meistergram machine shows auto-centering errors?

A: Ensure the correct needle is selected (e.g., #1 for tracing and centering). Use the keypad to position the needle, then the embroidery assistant’s frame range to trace the design perimeter. If the needle bar clears the hoop during tracing, you’re ready to stitch. Persistent errors may require recalibration or inspection.

7.3 Q: How can I update or troubleshoot software on legacy Meistergram systems?

A: Legacy units may require older operating systems and file conversions. Use tools to convert designs into .DST or .DSB and consider emulators for legacy programs. Refer to manuals for error codes and steps.

7.4 Q: What’s the best way to ensure my design fits within the hoop before starting embroidery?

A: After loading the design, select the active needle and center it. Use the embroidery assistant to trace the frame range. If the needle clears the hoop throughout the trace, you can start embroidering.

7.5 Q: Can I integrate magnetic embroidery hoops with my Meistergram machine?

A: Yes—magnetic hooping for garment embroidery can dramatically reduce setup time and improve tension. Note: This upgrade is not intended for caps/hats.

8. Conclusion: Optimizing Embroidery Workflows

Meistergram machines combine robust engineering, automation, and user-friendly controls. To unlock their full potential, integrate modern accessories such as magnetic hoops for embroidery for garment work. The result: faster setup, fewer defects, and workflows that match today’s commercial demands—delivering lasting value and creative freedom.
