How to Thread a Ricoma Embroidery Machine: Expert Guide for Perfect Results

1. Introduction to Ricoma Machine Threading

Proper threading is the lifeblood of any embroidery project. When your Ricoma is threaded correctly, it produces crisp, professional stitches; when it isn’t, thread breaks and skipped stitches follow. This guide helps you master Ricoma threading, understand model nuances, fine-tune tension, and choose threads that truly support your designs.

Before you dive in, confirm your hooping setup is steady and fabric is secure. If you use hoops for ricoma, make sure the fabric is taut and aligned so your first stitches start smoothly.

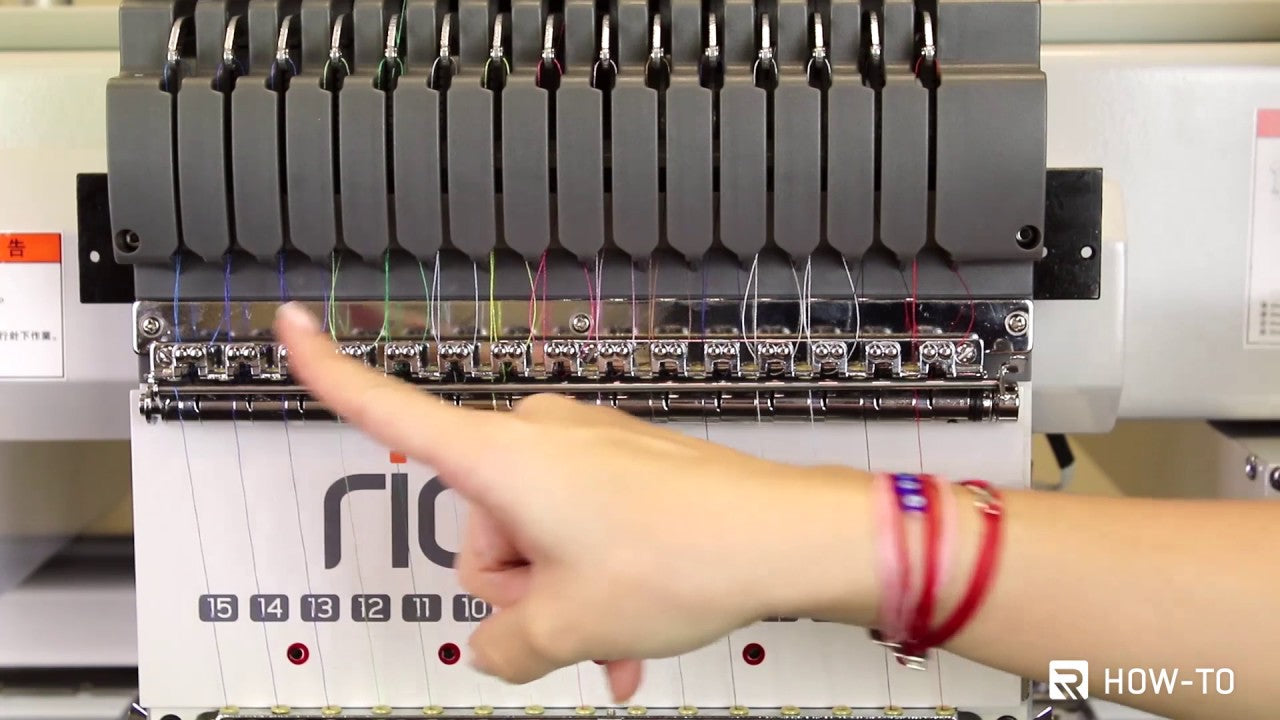

2. Step-by-Step Threading Instructions for Ricoma Machines

Learning to thread a Ricoma the right way quickly becomes a smooth, repeatable process that sets up every project for success. Organize your spools, follow the path precisely, and give the thread the right amount of freedom to move.

ricoma hoops won’t affect the thread path directly, but a secure, flat hoop helps prevent early snags caused by fabric shifting as you begin stitching.

2.1 Preparation and Spool Organization

• Power off the machine and clear the thread path.
• Raise the thread rack to the highest position to reduce drag.
• Assign each spool to its matching needle number.

For multi-head setups, group spools in sets of three and work from the back row forward. Avoid placing similar colors side by side to prevent mix-ups. Use Ricoma’s vertical eyelet system to guide each thread and avoid cross-threading.

2.2 Thread Path and Tensioner Configuration

• Pass thread through the front rack’s vertical eyelet, then the top row eyelet of the tensioner, and between the plates.
• For plastic tube systems, use the threading tool to feed the thread through the tube.
• Lay thread under the metal clip and through pins along the path.
• Wrap the tensioner no more than 1.5 turns to avoid over-tightening.
• Thread the take-up lever right to left, then the spring bar eyelet, resting the thread on the spring above the presser foot. Leave about two inches of slack.

2.3 Needle Threading and Bobbin Setup

Thread the needle front to back. If there’s no automatic threader, use a steady hand and ensure the thread exits toward the presser foot.

Wind the bobbin using the built-in winder. Insert it with the correct direction, then raise and lower the needle with the handwheel while holding the top thread to bring up the bobbin thread.

Best practices:

• Re-thread all spools when changing colors for consistency.
• Use the threading tool for tension tubes and pins.
• Clean tension discs and springs regularly.

3. Model-Specific Threading: EM-1010 vs. MT-1501 Differences

Ricoma’s lineup spans compact and industrial models with distinct threading paths. Understanding each model’s components makes threading consistent and predictable.

For accessories and hooping options that complement these models, consider ricoma embroidery hoops to keep fabric positioning stable while you test tension and stitch quality.

3.1 EM-1010 Threading Protocol

The EM-1010 uses a metal rack system. Rear needles route through the back rack’s bottom and vertical eyelets; front-row needles use the front rack’s vertical eyelet. Top and bottom tensioner rows separate the path, and the thread must pass under the tension knob and into the pin.

Steps:

1. Snap thread cones on the thread base.
2. Guide spool 1 through the back rack’s bottom eyelet, then the vertical eyelet.
3. Feed through the tension knob’s pin and spring bar; keep to a half-turn maximum around the sensor wheel.
4. Attach to the presser foot spring and thread the needle front to back.

3.2 MT-1501 Plastic Tube System

The MT-1501 uses a plastic tube system with tensioner tabs. Route from the front rack’s vertical eyelet into the small eyelet behind the tension knob, then feed the plastic tube with the threading tool. Ensure the thread sits inside the top tensioner tab at the 3 o’clock position, then go through the take-up lever (right to left) and the needle (front to back). Trim excess under the presser foot.

Common issues:

• Thread breakage: verify knob placement and that the thread sits inside the pin or tab as required.
• Skipped stitches: watch for looping or bird-nesting and re-check tension alignment.

4. Solving Common Threading Issues: Breaks, Tension, and Bird-Nesting

Breaks, tension headaches, and bird-nesting usually trace back to thread path errors, imbalance between top and bobbin tension, or fabric movement. For extra fabric stability, magnetic embroidery hoops can help reduce shifts that aggravate looping.

4.1 Thread Breakage Diagnostics

Typical causes include improper tension, misrouted paths, dense designs, excessive speed, and low-quality thread. Loosen tension one or two turns and test. Confirm the thread passes under the tension knob pin, goes through all guides, and follows right-to-left at the take-up lever before entering the needle front to back.

Dense designs or high speeds can strain thread—simplify the design or reduce speed for intricate sections. Use embroidery-grade polyester or rayon to minimize fraying.

Troubleshooting steps:

1. Re-thread affected needles carefully.
2. Adjust Thread Broken Sensitivity in EMB Param to levels 5, 7, or 9 if breaks persist.
3. Test after each change.

Pro tip: Review digitizing, especially auto-digitized designs, and run a test stitch first.

4.2 Tension Balancing Techniques

Double-check that thread sits properly under the tension knobs and isn’t over-wrapped. Confirm rack height, spool order, and correct pin routing.

Bobbin tension matters: ensure the thread runs through the case slit and spring. If too much bobbin thread shows on the reverse, tighten the case screw; if too little, loosen it—adjust in quarter turns.

Use the Ricoma I test: sew a 1-inch satin column and check the back for one-third bobbin thread centered and one-third top thread on each side.

Preventive measures:

• Clean thread paths and bobbin areas regularly.
• Use high-quality threads and needles.
• Secure fabric tightly in the hoop.

5. Thread Compatibility: Polyester, Rayon, and Specialty Threads

Thread choice directly affects durability, finish, and tension settings. Match the thread to your design and fabric, and always test on scraps before production.

5.1 Optimal Thread Types for Ricoma Machines

Polyester: strong, colorfast, and ideal for everything from light blends to heavy vinyl. It tolerates high speed and cleaning chemicals while keeping a glossy, professional finish.

Rayon: soft and shiny for garments, but less durable—avoid high-speed, high-tension work or frequent bleaching.

Metallic: decorative sparkle with reflective coatings; use a larger needle (Ricoma 75/11) and looser tension to avoid breakage.

Thread weight:

• 40-weight is the everyday sweet spot.
• Thicker (e.g., metallics) need looser top tension.
• Finer threads may need tighter tension.

5.2 Adjusting Settings for Glow-in-the-Dark & Variegated Threads

Glow-in-the-dark: run at low to medium speeds with light tension, and prefer fill-heavy designs.

Variegated: slightly lighter than standard polyester—lower top tension a bit and use moderate speeds for even color transitions.

Fabric stabilization is critical for specialty threads. Even, secure hooping—such as with magnetic hoops for embroidery machines—helps reduce breaks and misalignment.

Pro tip: Pair thread choice with the right needle and stabilizer; Ricoma 75/11 needles work well with polyester, rayon, and metallic threads.

6. Maintenance Synced with Threading: Needles, Tension, and Longevity

Threading quality depends on steady maintenance. Oil, clean, and re-check tension routinely to minimize downtime and defects.

6.1 Synchronized Needle Replacement Workflow

1. Cut the thread above the old needle and remove it.
2. Install the new needle with the flat side oriented correctly.
3. Re-thread through tensioners, take-up lever, and needle eye.
4. Test stitch to verify balance and quality.

During needle swaps or service, secure fabric to prevent shifting; stable hooping with magnetic frames for embroidery machine helps designs stay aligned while you pause and resume.

6.2 Preventive Care Schedule

Daily:

• Oil moving parts as recommended.
• Clean thread paths and the bobbin area to remove lint.

Weekly:

• Check and calibrate tension discs and springs.
• Inspect magnets and guides for debris or wear.

After needle or thread changes:

• Re-thread affected stations and test for balanced tension.

Thanks to robust materials and strong clamping systems, reliable magnetic hoops can reduce replacements and setup time, translating into fewer interruptions and more output.

7. Advanced Tension Optimization Across Fabrics

Tension is the backbone of every stitch. Too tight leads to breaks; too loose leads to looping and nests. Tailor tension to fabric and design complexity for consistent, professional results.

For consistent fabric hold while dialing in settings, a well-aligned magnetic embroidery hoop helps keep materials flat and evenly tensioned.

7.1 Fabric-Specific Tension Strategies

Delicate fabrics (silk, fine cotton): slightly reduce top tension to prevent puckering and breaks; use 40-weight polyester with a lightweight stabilizer.

Heavy fabrics (denim, canvas, towels): increase top tension so stitches sit on the surface; keep bobbin tension in the 22–24 gram range.

Stretchy fabrics (knits, athletic wear): balance top tension to avoid puckers; use tear-away stabilizer and keep the fabric taut and flat in the hoop.

7.2 Complex Design Adjustments

Multi-needle coordination: keep the spring bar aligned at 90 degrees for even distribution. If one needle misbehaves, adjust that station first, then others incrementally.

Real-time tweaks: quarter-turn the top tension knob while running—tighten to correct looping, loosen to reduce breaks.

I test benchmark: a 1-inch satin column should show one-third bobbin thread centered and one-third top thread on each side. For dense fills, a small increase in top tension prevents slippage.

Target ranges: top thread tension around 115–130 grams and bobbin tension at 22–24 grams deliver consistent results.

8. Conclusion: Key Takeaways for Flawless Threading

Mastering Ricoma threading means matching the path to the model, calibrating tension for each fabric, and choosing threads that fit the job. MaggieFrame magnetic embroidery hoops can cut setup time drastically while keeping fabric stable. Whether you are comparing prices or refining your technique, you now have the process to elevate every project.

9. FAQ: Ricoma Threading Essentials

9.1 Q: Why does my thread keep breaking?

A: Improper tension is the most common cause. Re-check the path, ensure the thread passes under the tension knob and through all guides, and make small, incremental adjustments. Use quality thread and replace needles regularly.

9.2 Q: How often should I replace needles?

A: Every 8 hours of stitching time, or sooner if you see skipped stitches, thread breaks, or fabric snags.

9.3 Q: Can I use cotton thread in my Ricoma machine?

A: Cotton thread is not recommended. It tends to break at commercial embroidery speeds and tension. Stick with polyester or rayon for best results.
