1. Introduction to Highland 15-Needle Machine Capabilities

The Highland 15-needle embroidery machine stands as a powerhouse in the commercial embroidery world, blending industrial-grade engineering with user-friendly controls to meet the demands of both high-volume businesses and passionate hobbyists. With its robust construction, advanced multitasking features, and a spacious embroidery field, this machine is engineered to keep your workflow running smoothly—whether you're personalizing a single garment or fulfilling a large production order.

From seamless design loading and precise color management to innovative hooping solutions and proactive maintenance routines, the Highland 15-needle machine is built for efficiency and reliability. In this guide, we'll walk you through step-by-step setup instructions, best practices for maximizing performance, and essential maintenance protocols. We'll also explore advanced features that set Highland apart, ensuring you're equipped to achieve consistent, professional results every time you power up your Highland 15 needle embroidery machine (price-competitive for commercial studios).

Table of Contents

• 1. Introduction to Highland 15-Needle Machine Capabilities
• 2. Step-by-Step Machine Setup & Operational Guide
• 3. Maintenance Protocols for Peak Performance
• 4. Advanced Features for Production Efficiency
• 5. Specialized Cap Embroidery Techniques
• 6. Performance Benchmarks & Model Comparisons
• 7. Enhancing Garment Embroidery Workflows
• 8. Conclusion & Next Steps for Operators
• 9. Frequently Asked Questions

2. Step-by-Step Machine Setup & Operational Guide

Getting the most out of your Highland 15-needle embroidery machine starts with mastering the setup and operational basics. Let’s break down the key processes—design loading, color sequence optimization, and advanced hooping techniques—so you can move from idea to finished stitch with confidence.

2.1 Design Loading & File Compatibility Best Practices

Loading your embroidery designs into the Highland machine is a streamlined process, but a few best practices can save you from headaches down the line.

Supported File Formats: The Highland 15-needle machine is compatible with Tajima (DST), Barudan, and ZSK embroidery files, giving you flexibility across industry-standard formats.

How to Load a Design via USB:

1. Insert USB Drive: Plug your USB stick containing compatible designs into the machine’s port.

2. Release Active Design: If a design is already active, touch the icon with a needle and red up/down arrows, then confirm the release with the green checkmark.

3. Access Design Management: Tap the design management icon (often depicted as a cluster of flowers) to view designs stored in memory.

4. Select and Import Design: Use the up/down arrows to find your desired design. Tap to select, then import it into the machine’s memory. Enter a memory number and name if prompted, or accept the default.

5. Confirm Design: Once imported, select the design and confirm it by touching the appropriate icon (often a needle with a flower). The design is now ready for embroidery.

Troubleshooting File Errors: If you encounter file corruption or unsupported format errors, double-check that your files are saved in DST, Barudan, or ZSK formats and that your USB drive is formatted correctly. Always safely eject USB devices to avoid data corruption.

Retrieving Designs from Memory: Designs previously loaded can be accessed via the machine’s memory interface. Confirm the design’s status by looking for a checkmark icon in the lower-left corner of the LCD screen.

Pro Tip: The Highland embroidery machine software powers the large touchscreen for intuitive navigation, with design details (name, stitch count, color info) displayed for quick reference. This minimizes guesswork and keeps your workflow moving.

2.2 Optimizing Color Sequences & Thread Management

Color management is where efficiency and artistry converge. The Highland’s 15 needles allow for complex, multi-color designs, but smart sequencing can save you time and thread.

Automatic vs. Manual Color Change:

- Automatic Color Change: Select “Automatic Color Change, Automatic Start” for hands-free operation. The machine will progress through your programmed color sequence without intervention.

- Manual Color Change: Choose this mode for precise control—ideal for specialty threads or when you want to monitor each color transition.

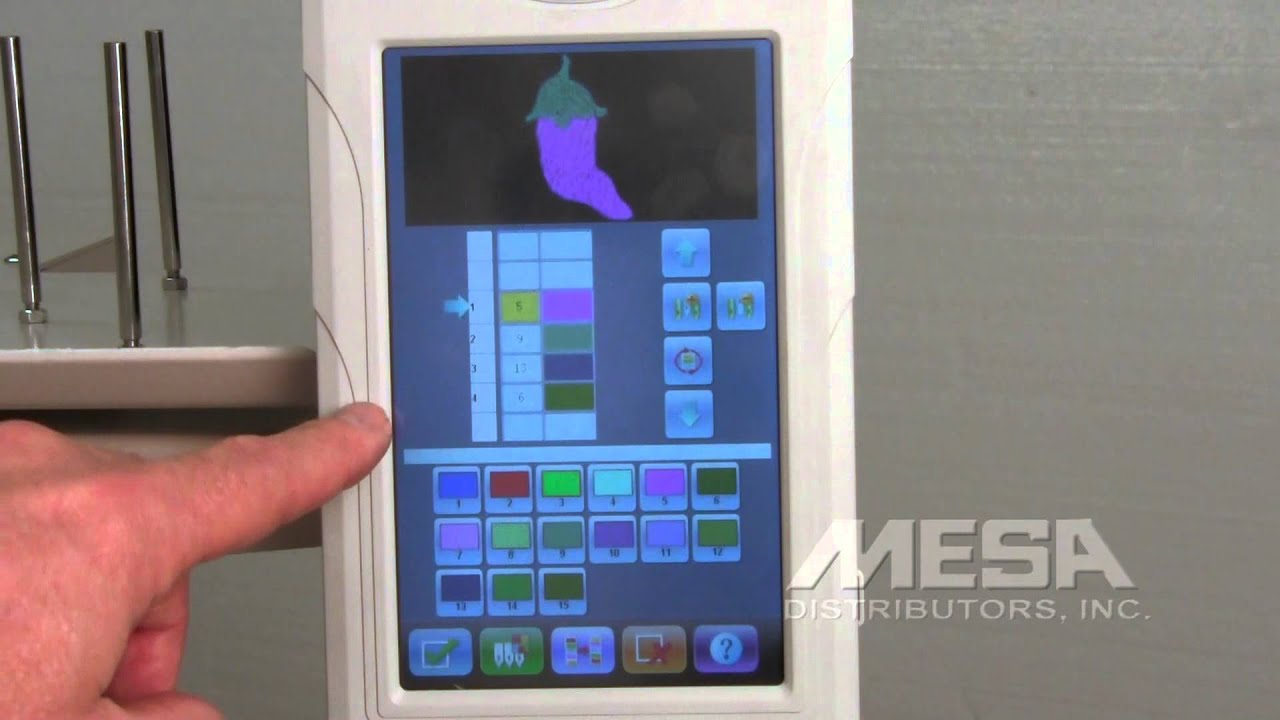

Setting Up Your Color Sequence:

1. Open Color Sequence Menu: Access via the settings icon (often a gear symbol) on the touchscreen.

2. Assign Colors: The display will show your design’s color stops and a palette representing the 15 needles. Tap the needle number to assign it to each color in your design.

3. Preview & Confirm: The screen updates in real time to reflect your choices. Once satisfied, confirm with the green checkmark.

4. Thread Trimming: Use the auto-trim function for seamless transitions, or manually trim threads between color groups if desired.

Thread Management Tips:

- Use high-quality embroidery threads to minimize breakage.

- Organize thread spools by color sequence to streamline setup.

- Regularly check thread tension and pathing to prevent snags and wasted material.

Efficiency Insight: Stitch filtering techniques—such as grouping similar colors and minimizing unnecessary color changes—can further reduce thread waste and speed up production.

2.3 Advanced Hooping Techniques for Consistent Results

Proper hooping is the unsung hero of flawless embroidery. The Highland’s generous hoop sizes (up to 500x450mm) and laser alignment tools make it easy to achieve perfect placement, even on challenging garments.

Laser Alignment Protocols:

- Use the “Trace Design” feature to visualize the embroidery area before stitching. The machine’s laser pointer outlines the design’s perimeter, helping you spot potential placement issues.

- Always allow a margin of about 3/8" around the design for hoop clearance.

Tension Control Methods:

- Select a hoop size that matches your design dimensions—oversized hoops can lead to fabric slippage, while undersized hoops may distort your work.

- Stretch fabric taut within the hoop, ensuring even tension across the entire area.

- For large or heavy fabrics, a table attachment can provide extra support and stability.

MaggieFrame Magnetic Hoops for Garment Embroidery: If you’re working with high-volume garment orders, consider integrating MaggieFrame magnetic embroidery hoops into your workflow. Their powerful magnetic clamping system automatically adapts to fabric thickness, delivers even tension, and can reduce hooping time by up to 90%. This not only speeds up production but also reduces operator fatigue—especially valuable during bulk runs.

Step-by-Step Hooping:

1. Select Appropriate Hoop: Choose a frame compatible with your material and design size.

2. Align Material: Use the laser trace to position your fabric accurately.

3. Secure Fabric: With traditional hoops, stretch fabric taut and lock in place. With MaggieFrame, simply position the fabric and allow the magnets to snap the hoop together—no manual adjustment required.

4. Final Check: Double-check alignment and tension before starting the embroidery.

Consistency Tip: Always perform a design trace before stitching, especially on new garments or unfamiliar materials. This extra step can save you from costly mistakes and rework.

3. Maintenance Protocols for Peak Performance

A well-maintained Highland 15-needle machine is a reliable workhorse—neglect it, and you’ll quickly find yourself troubleshooting avoidable issues. Let’s break down the essential maintenance routines that keep your machine humming and your stitches sharp.

3.1 Daily Oiling Schedule & Critical Components

Routine lubrication is the lifeblood of any embroidery machine. The Highland’s moving parts require regular oiling to minimize friction, prevent wear, and ensure smooth operation.

Rotary Hook Lubrication:

• Apply sewing machine oil to the rotary hook every four hours of active operation.
• To access the rotary hook, open the guard, remove the bobbin case (keep it threaded to save time), and place two drops of oil above the pointed tip in the groove.
• Replace the bobbin case and close the cover before resuming work.

Reciprocator Shaft Alignment:

• Perform a laser alignment check on the reciprocator shaft every quarter (three months).
• Proper alignment prevents mechanical errors and extends the lifespan of critical components.

Other Key Oiling Points:

• Wick box (right side of the machine): Maintain about one-third full—never exceed halfway to avoid over-oiling.
• Needle bars: One drop per bar, once a week, applied behind the take-up levers.
• Inner sewing head: A couple of drops via the oblong hole on the right side.

Daily Cleaning:

• Remove the needle plate using the offset screwdriver from your toolbox.
• Clean out lint and thread debris with compressed air.
• Reinstall the needle plate securely before resuming embroidery.

Pro Tip: Replace your bobbin case every three to six months, or immediately if dropped on a hard surface. Damaged cases can disrupt thread flow and compromise stitch quality.

3.2 Troubleshooting Common Thread Break Issues

Thread breaks can bring production to a screeching halt, but a systematic approach to highland embroidery machine troubleshooting will get you back on track fast.

Immediate Actions:

1. Stop the Machine: Use the control panel to halt embroidery.
2. Manual Thread Trim: Select the manual trim option to clear broken threads.
3. Check Thread Path: Ensure the thread is properly seated through all guides and the take-up lever.

Preventive Measures:

• Use quality embroidery thread to minimize breakage.
• Inspect needles regularly—replace any that are bent or dull.
• Maintain correct thread tension for each needle.

Common Error Codes:

• Error Code 12 (“Stop Position Abnormal”):
  • Reset the degree wheel to the 100° position via the control panel.
  • Rehoop fabric with proper tension and alignment.

Bobbin Case Replacement:

1. Remove the needle plate.
2. Extract the bobbin case.
3. Clean the area thoroughly.
4. Insert a new bobbin case, ensuring proper alignment.

Additional Troubleshooting:

• For color change issues, verify that the color sequence is correctly programmed and adjust via the manual color-changing interface if needed.
• For thread jams, stop the machine, gently remove tangled threads, and clean the bobbin case and stitch plate.

Consistency Tip: Keep your machine clean, free from dust and debris, and stick to your maintenance schedule. This proactive approach will extend your machine’s lifespan and minimize costly downtime.

With these foundational setup, operational, and maintenance protocols, you’re well on your way to mastering the Highland 15-needle embroidery machine. Ready to take your production to the next level? Stay tuned as we dive into advanced features and efficiency tips in the following sections.

4. Advanced Features for Production Efficiency

Highland 15-needle embroidery machines aren’t just about brute stitching power—they’re engineered for next-level efficiency, resilience, and operator freedom. Let’s peel back the curtain on two of their most game-changing innovations: the Reciprocator Protection System (RPS) and multitasking workflows with design pre-loading. These features are the secret sauce that keeps your production humming, even when the going gets tough.

4.1 Reciprocator Protection System (RPS) Explained

Imagine you’re deep into a rush order, the machine is flying, and—crunch!—the needle strikes the hoop. On most embroidery machines, this is the moment your heart sinks: a broken reciprocator means hours (or days) of downtime and a repair bill that stings. But Highland flips the script with its patent-pending RPS Reciprocator Protection System.

What is the RPS Reciprocator?

The reciprocator is the component that drives the needle bar up and down. Traditionally, this part is made of plastic—a weak link that’s prone to snapping if the needle collides with a hoop or thick garment. Highland’s RPS system replaces this vulnerability with an unbreakable metal reciprocator, engineered to survive the knocks and bumps of real-world commercial embroidery production.

How does it work in practice?

Let’s say you forget to run a design trace and the needle hits the hoop. With RPS, you simply power down, replace a plastic post (a quick, inexpensive fix), re-hoop your garment, and get back to work. No more catastrophic failures. No more lost revenue. This robust construction is especially valuable for high-volume shops embroidering on tough materials like jackets or caps.

Why does it matter?

• Minimizes downtime: Keeps your machine running, even after accidents.
• Reduces repair costs: No need for expensive technician visits or replacement parts.
• Boosts confidence: Operators can focus on creativity, not catastrophe.

As highlighted in Highland’s video demos, the RPS system is a true “set it and forget it” safeguard—like having an insurance policy built right into your machine.

4.2 Multitasking Workflows & Design Pre-Loading

Time is money in embroidery, and Highland machines are built to squeeze every drop of productivity from your day. The secret weapon? Advanced multitasking and design management features that let you work smarter, not harder.

Multitasking in Action:

With Highland’s intuitive color LCD touchscreen (ranging from 6.8" to 10.4"), you can load your next design while the current job is still stitching. No more waiting around—queue up your workflow so there’s never a lull between orders. The machine’s 100 million stitch memory means you can store a massive library of designs, ready to go at a moment’s notice.

Key Features That Supercharge Efficiency:

• Automatic Thread Trimmer: Cuts threads automatically after each color change or section, saving you from tedious manual snipping.
• Automatic Color Change: Seamlessly switches threads for multi-color designs, so you can tackle complex patterns hands-free.
• Thread Break Detection: Instantly halts the machine if a thread snaps, preventing wasted stitches and botched garments.
• One-Touch Design Trace: Before you hit “start,” the machine can trace the design outline with a laser, helping you avoid accidental hoop strikes.
• Real-Time Monitoring: The touchscreen displays stitch counts, needle sequence, and progress, so you’re always in control.

Design Pre-Loading & Management:

• USB & Network Connectivity: Transfer designs via USB or, on select models, wirelessly.
• Design Scaling & Editing: Scale, mirror, rotate, or adjust column width right from the panel.
• Float Function: Move forward or backward through a design to fix issues or repeat sections without starting over.

Operational Advantages:

• Large Sewing Area: With a 500 x 450 mm field, you can handle everything from jacket backs to ear-to-ear cap embroidery.
• Noise Reduction & Lighting: Built-in workspace lighting and sound-dampening tech make for a more comfortable, efficient environment.

In summary, Highland’s advanced features are more than just bells and whistles—they’re the backbone of a streamlined, resilient production line. Once you experience the freedom of multitasking and the peace of mind from RPS, you’ll wonder how you ever managed without them.

5. Specialized Cap Embroidery Techniques

Cap embroidery isn’t just a sideline—it’s an art form, and Highland’s 15-needle machines are purpose-built to master it. Whether you’re stitching crisp logos on unstructured hats or wrapping intricate designs around the sides, these machines and their Mighty Hoops for Highland and specialized accessories make the process fast, precise, and repeatable.

5.1 270° Wide Cap Frame Configuration Guide

The 270° wide cap frame is Highland’s ace for ambitious cap projects, letting you embroider from ear to ear with confidence. Here’s how to set up for flawless results, even on tricky unstructured caps:

Step-by-Step Alignment:

1. Preparation:

- Unbuckle the cap strap (if present) to widen the opening.

- Place the cap onto the frame, aligning the center seam with the centering tab for perfect symmetry.

2. Tension Balancing:

- Use the spring-loaded clips to lock the cap in place. The goal is taut, not torqued—over-tightening can cause clips to pop off mid-sew.

- Smooth the fabric around the back and sides to prevent puckering or shifting.

3. Precision Alignment:

- The frame’s pivot axle and slide bearings help maintain exact positioning, especially on structured caps.

- Double-check that the cap is flat and centered before locking down.

Pro Tip: Laser light tracing is your best friend—use the one-touch trace function to preview the design’s placement and avoid costly misalignment.

5.2 Quick-Change Cap System Optimization

Switching between caps and flat garments shouldn’t feel like a pit stop at a race track. Highland’s patented quick-change cap system is all about speed and simplicity:

Tool-Free Transitions:

- Remove the flat hoop, snap in the quick-change cap driver, and you’re ready for hats—no tools, no fuss.

- The cap driver rotates up to 270°, so you can embroider the front and sides of the cap in a single run.

Linear Motion Guide Rail:

- Ensures smooth, precise movement during embroidery, keeping your stitching sharp and your registration flawless.

Workflow Advantages:

- Largest Cap Sewing Area: Get closer to the brim and wrap designs further around than most competitors.

- Automatic Thread Trimmer & Break Detection: Keeps the process clean and interruption-free.

- Workspace Lighting: Illuminates the hooping area for better visibility and fewer mistakes.

Common Challenges & Solutions:

Training Resources: Highland’s YouTube tutorials and PDF guides (like those from MESA Training) walk you through cap hooping, emphasizing alignment and tension control for professional results every time.

By leveraging these specialized tools and techniques, you can turn cap embroidery from a headache into a highlight of your production line.

6. Performance Benchmarks & Model Comparisons

When it comes to commercial embroidery, speed and precision are the twin pillars of productivity. Highland’s 15-needle machines deliver on both fronts, but how do they stack up in real-world scenarios—and how do different models compare? Let’s dig into the numbers and the nuances.

6.1 Speed vs Precision: 1,200 SPM Real-World Testing

Highland’s machines are engineered for velocity, consistently achieving up to 1,200 stitches per minute (SPM) across flagship models like the HM/E-1501C and Avancé 1501C. But speed alone isn’t the whole story—precision is where Highland truly shines.

Note: While SWF machines may tout higher speeds (up to 1,400 SPM), Highland prioritizes stitch quality and reliability at top speeds.

6.2 Breeze vs HM/D-1501C: Feature Breakdown

Choosing between Highland models? Here’s how the Breeze and HM/D-1501C stack up on the essentials:

Highlights:

- HM/E-1501C: Offers a larger memory, advanced multitasking, and a bigger, more intuitive touchscreen. Cap embroidery is vastly improved thanks to the 270° frame and quick-change system.

- Breeze: Shares many core features, including the RPS system, linear pantograph for smoother movement, and a robust metal frame for durability.

Key Performance Features Across Models:

- Automatic Color Change: Streamlines multi-color projects.

- Laser Design Tracing: Ensures pinpoint alignment.

- Workspace Lighting: Keeps your work area bright and error-free.

- Stitch Filtering: Lets you fine-tune density for different fabrics.

The Bottom Line:

Highland’s 15-needle machines are built for operators who demand reliability, flexibility, and professional-grade results. Whether you choose the Breeze, HM/E-1501C, or Avancé 1501C, you’re investing in a platform that values precision as much as speed—so you can deliver top-tier embroidery, job after job.

---

Ready to take your embroidery workflow to the next level? Highland’s advanced features and specialized accessories are your ticket to smoother, faster, and more profitable production.

7. Enhancing Garment Embroidery Workflows

Garment embroidery on the Highland 15-needle machine is where technical precision meets creative potential. But to truly unlock the power of this industrial workhorse, you need to master both design optimization and hooping efficiency—especially when working within the popular 14" x 8" embroidery field. Let’s dive into advanced workflow strategies that help you maximize every inch and every minute.

7.1 Design Optimization for 14"x8" Fields

Getting the most out of your Highland’s 14" x 8" embroidery area isn’t just about cramming in as much thread as possible—it’s about smart design choices, careful border management, and leveraging the machine’s built-in features for flawless results.

File Compatibility & Scaling: The Highland 15-needle machine supports industry-standard file formats like Tajima (.DST), Barudan (FDR/FMC), and ZSK. When prepping your design, ensure filenames follow the numeric conventions (1–999) and avoid special characters to prevent import errors. Use embroidery software such as DesignShop to import and, if needed, convert files for compatibility. For maximum efficiency, set your design dimensions to no more than 13.5" x 7.5"—this leaves a 0.25" border on all sides, ensuring your stitches stay clear of the hoop’s edge.

Stitch Density & Underlay: For smooth, professional results, limit stitch density to 6,000–8,000 stitches per square inch. This range helps prevent puckering and supports the Highland’s high-speed operation (up to 1,200 SPM). On stretch fabrics, use zigzag or edge-run underlays for added stability—these work in tandem with the automatic thread trimmer to minimize waste.

Stitch Filtering & Border Management: Highland’s built-in stitch filtering is your secret weapon. Enable this feature to automatically eliminate unnecessary jump stitches and reduce thread trims, which not only speeds up production but also results in cleaner designs. Always allow for a 0.25"–0.375" margin around your design to prevent accidental stitching outside the hoop area.

Laser Tracing for Precision Placement: Before you hit “start,” use the laser guide to trace the design’s perimeter within the hoop. This one-touch trace function helps you catch placement errors before a single stitch is sewn—saving both fabric and frustration.

Troubleshooting Tips:

• If you encounter thread breaks, adjust tension for each needle and enable automatic thread break detection to pause stitching instantly.
• For file corruption or memory errors, re-export your designs in compatible formats like .DST or .CND and reload them via USB.

By following these optimization strategies, you’ll transform your Highland’s 14" x 8" field into a canvas for crisp, high-impact embroidery—every time.

7.2 Magnetic Hooping Solutions for Bulk Production

Let’s face it: traditional hooping can be a time sink—especially when you’re staring down a mountain of garments. Enter highland embroidery machine hoops like MaggieFrame’s magnetic system, a game-changer for anyone serious about bulk production.

Why Magnetic Hooping? MaggieFrame’s powerful magnetic clamping system automatically adapts to different fabric thicknesses, delivering even tension without the hassle of manual screw adjustments. Whether you’re working with delicate tees or heavy sweatshirts, MaggieFrame secures your fabric in seconds—no more wrestling with stubborn frames or worrying about hoop burn.

Speed and Efficiency: Here’s where the magic happens: MaggieFrame can cut your garment hooping time by up to 90%. Imagine reducing a three-minute hooping process to just thirty seconds—across dozens or hundreds of pieces, those minutes become hours saved. This isn’t just about speed; it’s about freeing up your team for higher-value tasks and reducing operator fatigue during long production runs.

Consistency and Quality: Uniform tension means fewer misaligned stitches and less fabric distortion, leading to higher-quality embroidery and less waste. The textured contact surface and guiding lines on MaggieFrame make alignment a breeze, even for complex garment shapes.

Durability and ROI: MaggieFrame hoops are built from high-grade PPSU engineering plastic and N50-grade magnets, ensuring a lifespan that outpaces traditional hoops many times over. For high-volume operations, this means fewer replacements and a rapid return on investment.

Seamless Integration: MaggieFrame hoops are compatible with a wide range of commercial embroidery machines, including the Highland 15-needle series. Simply select the appropriate bracket, and you’re ready to go—no special tools or training required.

Bulk Production Workflow Example:

1. Select the appropriate MaggieFrame size for your garment and design.
2. Align the fabric using the hoop’s reference lines.
3. Snap the magnetic hoop in place—let the magnets do the work.
4. Load your optimized design and use the Highland’s laser trace to confirm placement.
5. Start stitching and repeat. Watch your productivity soar.

If you’re ready to move beyond the slow grind of traditional hooping, MaggieFrame offers a smarter, faster, and more ergonomic way to keep your production line humming.

8. Conclusion & Next Steps for Operators

Efficiency in embroidery isn’t just about having a powerful machine—it’s about how you optimize every step, from design prep to maintenance and hooping. By leveraging the Highland 15-needle machine’s advanced features and integrating solutions like MaggieFrame magnetic hoops, operators can dramatically reduce setup time, minimize errors, and boost output quality. For those looking to scale up garment production, adopting magnetic hooping systems is a strategic move that pays dividends in both time and consistency. Ready to elevate your workflow? Start integrating these best practices today and experience the difference for yourself.

9. Frequently Asked Questions

9.1 Q: What file formats are compatible with the Highland 15-needle embroidery machine?

A: The Highland 15-needle machine accepts Tajima (.DST), Barudan (FDR/FMC), and ZSK files. For best results, use numeric filenames (1–999) and avoid special characters. If you encounter import errors, re-export your design in a supported format and reload via USB.

9.2 Q: How can I optimize stitch density for the 14" x 8" embroidery field?

A: Limit stitch density to 6,000–8,000 stitches per square inch. This prevents puckering and ensures smooth operation at high speeds. Use underlay stitches for added stability, especially on stretch fabrics.

9.3 Q: What should I do if I get a thread break or error code during embroidery?

A: If a thread break occurs, pause the machine and check the thread path and tension for the affected needle. Enable the machine’s automatic thread break detection to pause stitching instantly. For error codes, refer to the machine’s manual or support resources for step-by-step troubleshooting.

9.4 Q: How do I ensure my design fits within the hoop and is properly aligned?

A: Use embroidery software to scale your design to no more than 13.5" x 7.5" for a 14" x 8" hoop, allowing for a 0.25" border. Before stitching, use the Highland’s laser trace function to preview placement and adjust as needed.

9.5 Q: What are the best practices for maintaining consistent embroidery quality?

A: Regularly clean and oil your machine according to the manufacturer’s schedule, use high-quality threads, and check tension settings for each needle. For hooping, ensure fabric is taut and evenly secured—magnetic hoops like MaggieFrame can help maintain uniform tension and speed up the process.
