Barudan BEVT Machines: Complete Guide to Operation, Maintenance & Optimization

1. Introduction to Barudan BEVT Series

The Barudan BEVT Series stands as a benchmark in industrial embroidery, fusing advanced engineering with user-friendly features to empower both seasoned professionals and ambitious newcomers. Whether you’re running a high-volume workshop or perfecting your craft in a boutique studio, Barudan commercial embroidery machines offer the versatility and reliability you need.

What makes the BEVT Series so compelling? For starters, these machines are engineered for robust performance, supporting up to 30 designs (with a staggering 10 million stitches in memory) and accommodating a wide range of embroidery applications—from intricate monograms to large-format logos. The intuitive LCD interface, rapid frame change capabilities, and network-ready options streamline workflow and minimize downtime.

In this guide, we’ll journey through the BEVT’s technical specifications, essential safety protocols, and the nuts and bolts of daily maintenance. You’ll discover how to keep your machine humming, compare model variants, and troubleshoot common hiccups with confidence. Ready to unlock the full potential of your Barudan BEVT? Let’s dive in.

Table of Contents

• 1. Introduction to Barudan BEVT Series
• 2. Technical Specifications & Safety Protocols
• 3. Maintenance & Lubrication Best Practices
• 4. Mastering Basic Operations
• 5. BEVT Model Comparison Guide
• 6. Advanced Industrial Workflow Solutions
• 7. Conclusion: Maximizing BEVT Performance
• 8. FAQ: Barudan BEVT Essentials

2. Technical Specifications & Safety Protocols

2.1 Core Machine Specifications

Barudan BEVT embroidery machines are meticulously crafted for industrial-grade performance, blending capacity, speed, and adaptability. Here’s a closer look at what powers these workhorses:

• Design Capacity: Store up to 30 designs or a total of 10 million stitches, ensuring you have ample creative freedom for complex projects. Some variants even support up to 100 designs, each with 1 million stitches.
• Display: Operate with ease using a 320 x 240, 16-bit color LCD—clear visuals for design selection and real-time monitoring.
• Power Requirements: Runs on AC100V or 200V single-phase power (±10% tolerance, 50/60Hz), making it adaptable to various studio setups.
• Environmental Tolerance: Built to perform in temperatures from 5°C to 45°C (20–80% RH, non-condensing) and can be stored in harsher conditions (-20°C to 60°C).
• Motor Systems: Equipped with a 3-phase 200V, 90W inverter-driven main motor and a micro-step 5-phase pantograph drive motor for precise movement.
• Speed Range: Adjustable from 200 to 1,200 RPM, allowing you to balance speed and stitch quality based on your project’s needs.
• Needle Configurations: Models support up to 15 needles, ideal for multi-color, high-detail embroidery.

Connectivity & Accessories:

• Storage: CF card slot for design transfer and backup.
• Optional Features: Mark 5 trimmer, USB 1.1, Ethernet, COM ports (with additional hardware), sequin device, barcode reader, and emergency stop switch.

Model Variations:

• Needle capacity and speed may vary by model, so always consult your specific manual for details. For example, the BEVT-S901CAII supports 9–15 needles, while the BEVT-Z1501CBII offers a maximum embroidery area of 330x500mm.

Summary Table: Core Specs

2.2 Critical Safety Measures

Operating a BEVT machine safely isn’t just good practice—it’s essential for protecting both the operator and the equipment. Here’s what you need to know:

• Electrical Grounding: Always connect your machine to an outlet with grounding resistance less than 100Ω (Type 3 grounding). This is non-negotiable for operator safety and machine integrity.
• Power Handling: Before servicing, cleaning, or lubricating, unplug the machine. Even after power-off, wait at least 4 minutes before accessing internal components—residual power can cause electric shock.
• Ventilation: Clean ventilation openings weekly to prevent dust buildup and overheating. Avoid placing the machine in direct sunlight or near heat sources like heaters or boilers.
• Emergency Stop Switch: Familiarize yourself with the big red emergency stop button—your go-to in case of unexpected issues. Only operate the machine from the front, and never bypass protective covers.

General Precautions:

• Keep hands, hair, jewelry, and clothing away from moving parts.
• Use only Barudan-recommended parts and accessories.
• Never force fabric during stitching—let the machine do the work.
• If foreign objects enter the controller, disconnect power immediately and contact a technician.

By following these protocols, you ensure a safe, efficient, and long-lasting embroidery experience. Always consult your Barudan embroidery machine user manual PDF for details.

3. Maintenance & Lubrication Best Practices

3.1 Step-by-Step Lubrication Guide

Routine lubrication is the heartbeat of BEVT machine longevity. Neglect it, and you risk costly downtime; stay diligent, and your machine will reward you with years of smooth operation. Here's your roadmap:

Key Lubrication Points & Frequency:

Step-by-Step Process:

1. Preparation:
   • Unplug the machine.
   • Remove any obstructive parts (needle, throat plate, bobbin case as needed).
   • Clean the area with a soft brush—avoid compressed air.
2. Lubrication:
   • Hook Race: Rotate the handwheel to position the hook race at 50°, then apply 1 drop of oil.
   • Needle Bars: Pull down each needle bar and apply a drop of oil to the felt washer.
   • Drive Shaft & Crank Rod: Apply oil to the drive shaft and crank rod bearings.
   • Take-Up Lever & Gears: Spray lithium grease into the cam groove and apply grease to gear teeth.
3. Post-Lubrication:
   • Wipe excess oil to prevent fabric stains.
   • Reassemble and test on scrap fabric.

MaggieFrame Compatibility Note: If you're using MaggieFrame magnetic hoops for garment embroidery, you'll notice a significant reduction in frame adjustment time. The powerful magnetic system ensures quick, even tension—making routine maintenance even more efficient.

3.2 Preventing Common Mechanical Failures

Even the best machines can stumble without proper care. Here's how to keep yours running flawlessly:

• Thread Breaks:
  • Check bobbin first—improper tension or threading is a common culprit.
  • Inspect thread sensors (white wheels at the top); the thread must loop around them to avoid false break detection.
• Error Codes (D25/D26):
  • Often linked to hook timing or frame alignment issues.
  • Ensure the hook timing is set to 25°, with the hook point just behind the needle scarf and a ½ to 1 thread-width gap between hook and needle.
• Tension Issues:
  • If bobbin thread appears on top, tighten upper thread tension.
  • If upper thread dominates the underside, loosen it.
  • Adjust bobbin case screw for balanced tension.
• Frame Alignment:
  • Proper hooping is crucial. Using magnetic hoops like MaggieFrame minimizes tension inconsistencies, reduces thread breaks, and ensures even fabric placement.

By sticking to these maintenance and troubleshooting routines—and leveraging time-saving accessories—you'll maximize your BEVT's uptime and embroidery quality. Ready for a smoother, more productive embroidery journey? Stay tuned for our next sections on operation mastery and model comparisons!

4. Mastering Basic Operations

Operating a Barudan BEVT machine may seem daunting at first glance, but once you master the essentials—design loading, frame changes, and control panel navigation—Barudan embroidery machine training helps you discover how to keep your machine humming with confidence and speed.

4.1 Design Loading via CF/USB

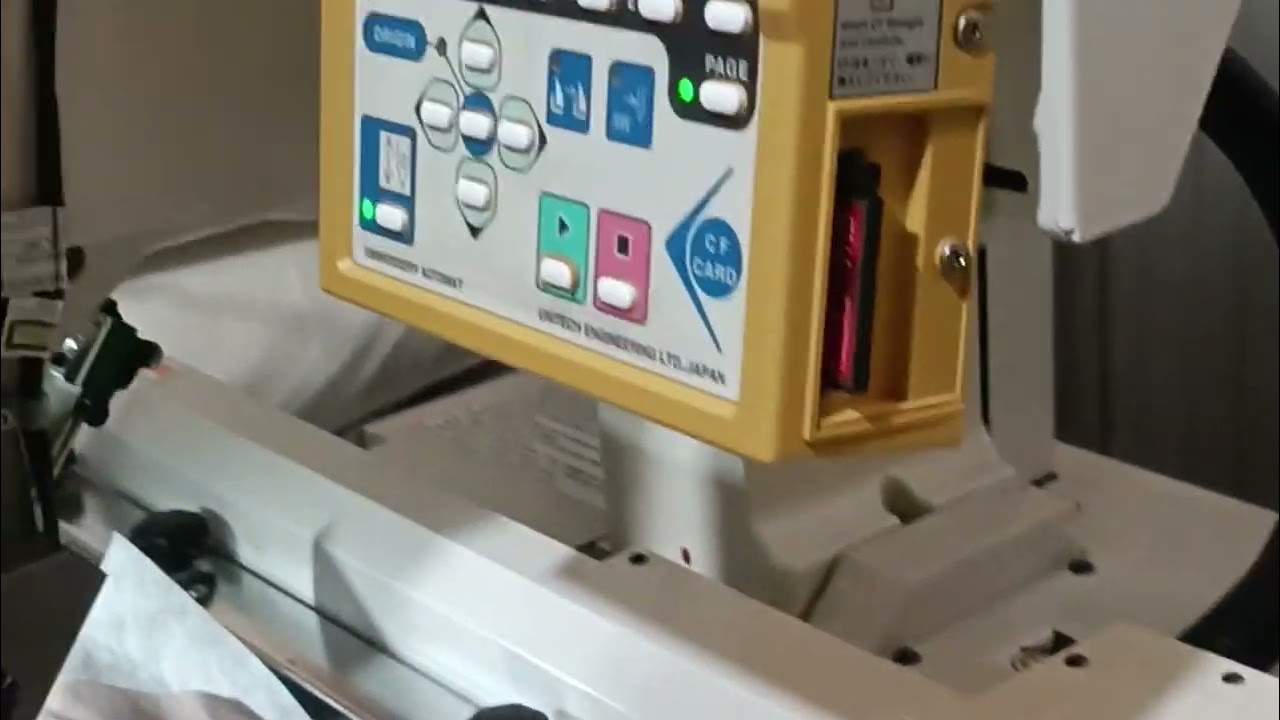

Transferring embroidery designs to your BEVT machine is a streamlined process, whether you’re using a Compact Flash (CF) card or a USB device (with the optional USB board installed). Here’s how to make sure your creative vision gets from your computer to your fabric—without a hitch.

Step-by-Step Workflow:

1. Device Selection:

- Press the A-Key on the control panel to cycle through available devices (ABC Drive, COM, or JOG).

- The selected device icon appears in the screen’s upper-left corner, confirming your choice.

2. Navigating Designs:

- Use the Jog Keys:

- Up/Down scrolls through pages of designs.

- Left/Right selects individual items within a page.

- This navigation mirrors the saving process, so once you’ve learned one, you’ve learned both.

3. Loading & Management:

- To pause loading, press the E-Key; if the machine doesn’t respond, hold the key a bit longer.

- To cancel during a pause, press the D-Key.

4. Origin Setting:

- After powering on, press E-Key to retract the pantograph (the part that moves the frame).

- Hit G-Key to calibrate the origin—this ensures your design starts stitching in the right spot.

Troubleshooting A05/A11 Errors:

- If you encounter data transfer issues (like A05 or A11 errors), double-check your CF card’s format and file structure. Make sure the card isn’t overloaded with files or corrupted, and always use recommended file formats for Barudan machines.

Pro Tips:

- Before loading, confirm that your design file is in the correct Barudan stitch format (.U01 or equivalent).

- If you’re converting from common formats like .PES, use software such as Wilcom TruSizer or Inkscape with the Inkstitch plugin to ensure compatibility.

Safety Reminder:

- Always connect your machine to a properly grounded outlet and unplug before servicing. Wait at least a minute after power-off before accessing internal components.

By following these steps, you’ll transform your digital designs into real-world embroidery with minimal fuss—leaving more time for creativity and less for troubleshooting.

4.2 Frame Change Techniques

Changing embroidery frames on the BEVT isn’t just about swapping hardware—it’s about ensuring precise alignment, fabric tension, and efficient workflow. Whether you’re prepping for a new garment or switching between projects, mastering this process is key to professional results.

Frame Adjustment & Alignment:

1. Thread Stand Height:

- Adjust the telescopic thread stands to fit your frame size by loosening the 2mm hex screws. This ensures smooth thread flow and prevents snags during operation.

2. Automat Controller Positioning:

- Loosen the 3mm hex screws on the Automat controller’s support plate to reposition it for your chosen frame. After aligning, re-tighten to lock everything in place.

3. BDC Calibration with F7TGR1014 Jig:

- For accurate stitching, use the F7TGR1014 jig to align the take-up lever cam at 0 degrees (Bottom Dead Center). If there’s a gap between the jig and bridge mounting surface, gently rotate the main shaft until perfect contact is achieved.

MaggieFrame Magnetic Hoops: Efficiency Revolution

If you’re serious about saving time and boosting consistency, consider using MaggieFrame magnetic embroidery hoops for garment embroidery. Here’s why:

- Speed: Compared to traditional screw-based frames, MaggieFrame’s powerful magnetic system enables garment setup up to 23% faster. No more fiddling with screws—just snap in place and go.

- Even Tension & Fabric Protection: The magnetic force distributes tension evenly, minimizing the risk of puckering or hoop burn. This is especially valuable for delicate or high-stretch fabrics.

- User-Friendly Design: Multiple reference lines on the hoop make fabric alignment a breeze, even for complex garment shapes.

- Durability: Built with high-grade PPSU engineering plastic and N50-grade magnets, MaggieFrame hoops outlast standard plastic frames by a wide margin—saving you money and hassle over time.

Why It Matters: Proper frame alignment and tension are the unsung heroes of flawless embroidery. By leveraging advanced tools like MaggieFrame, you not only speed up production but also reduce thread breaks and ensure every stitch lands exactly where it should.

Curiosity Gap: Ever wondered how much time you waste on frame adjustments each week? With MaggieFrame, you might just reclaim hours you never knew you were losing.

5. BEVT Model Comparison Guide

Choosing the right Barudan BEVT model is all about matching your production needs to machine capabilities. Let's break down the differences between the Z1501CBII and Z901CA—two popular single-head workhorses (check Barudan 2 head embroidery machine price for alternatives)—so you can make an informed decision.

5.1 Z1501CBII vs Z901CA Feature Analysis

Embroidery Areas:

• BEVT-Z1501CBII: 250 × 400 mm (9.8 × 15.7")—ideal for larger designs, jackets, and blankets.
• BEVT-Z901CA: ~195 × 315 mm (7.7 × 12.4")—perfect for smaller garments, caps, and specialty items.

Note: The Z901CA's embroidery field is inferred from compatible hoop sizes, such as the 240 × 240 mm MaggieFrame.

Needle Configuration:

Both models feature 15 needles per head, supporting rapid multicolor stitching and minimizing thread changes. This versatility lets you tackle intricate designs on everything from leather to silk.

Compatible Frames:

MaggieFrame for Z901CA: The Z901CA pairs beautifully with MaggieFrame's 240 × 240 mm magnetic hoop, offering precise fabric alignment and quick setup—especially valuable for high-volume garment production.

Summary Table:

Pro Tip: If your workflow demands frequent frame changes and precise placement—especially on smaller garments—the Z901CA with MaggieFrame 240 × 240 mm hoop is a winning combo for both speed and accuracy.

6. Advanced Industrial Workflow Solutions

As your embroidery operation scales up, managing multiple Barudan industrial embroidery machines in a synchronized production line becomes both an art and a science. Here's how to keep your workflow humming, minimize downtime, and ensure consistent quality across every unit.

6.1 Multi-Machine Synchronization

Parameter Standardization: Start by ensuring all machines share identical settings—stitch density, thread tension, hook timing. Even minor discrepancies can lead to visible inconsistencies across batches.

Centralized Control Systems: Networked automation tools can synchronize machine speeds and thread-cutting sequences, reducing downtime during color changes or thread breaks. This is especially valuable when running high-volume jobs with tight deadlines.

Error Propagation Mitigation: Be vigilant about error codes like D30 (Head/Duct Board Switch Errors) or D31 (Driver Box Communication Errors). If left unchecked, these can ripple through your entire production line. Prompt troubleshooting and standardized documentation of fixes are essential.

High-Volume Optimization Strategies:

- Adjust MC parameter #19 (T-Break) for designs with small stitches to reduce false thread breaks.

- Use rotary thread break wheels instead of check springs for greater reliability.

- Clean fan vents regularly to prevent pulse motor overheating (D26 errors).

- Lubricate servo motors and pantograph mechanisms weekly to avoid D29 errors.

Predictive Maintenance:

- Integrate sensors to monitor motor temperatures, thread tension, and servo performance in real time.

- Replace needles, bobbin cases, and hook assemblies at intervals aligned with production cycles—think of it as "scheduled pit stops" for your machines.

- Analyze error logs (D25–D31) to spot recurring issues and address root causes before they snowball.

Training & Documentation:

- Certify operators in advanced protocols, such as hook timing calibration (aligning at 25° for bridge machines) and needle bar adjustment (using 3mm Allen wrenches).

- Keep detailed logs of parameter changes, error resolutions, and maintenance schedules to streamline troubleshooting across your fleet.

Thread Tension & Mechanical Calibration:

- Tighten upper thread tension if bobbin thread appears on the fabric surface; loosen if the upper thread dominates the underside.

- Adjust the bobbin case screw for even stitch density and minimal thread breaks.

- Set needle bar depth so the eyelet is halfway through the hook basket for optimal stitch formation.

Curiosity Gap: Ever wondered why one machine in your line always seems to lag behind? Sometimes, the culprit is as simple as a clogged fan vent or a slightly misaligned needle bar.

Takeaway: By embracing these workflow strategies, you transform a collection of individual machines into a finely tuned, industrial embroidery orchestra—each unit playing its part in perfect harmony. The result? Consistent quality, maximized uptime, and a competitive edge in the marketplace.

7. Conclusion: Maximizing BEVT Performance

Maximizing the performance of your Barudan BEVT machine is all about mastering the essentials—regular maintenance, efficient operations, and smart accessory choices. By sticking to the recommended lubrication schedules, you keep every moving part running smoothly and extend your machine’s lifespan. Streamlining your workflow with precise frame alignment and advanced tools, like MaggieFrame magnetic embroidery hoops for garment embroidery, can dramatically reduce setup time and improve stitch consistency. Investing in such time-saving solutions not only boosts your daily productivity but also enhances your return on investment over the long haul. Whether you’re running a bustling shop or perfecting your craft at home, pairing BEVT’s robust engineering with the right accessories ensures you get the most out of every stitch.

8. FAQ: Barudan BEVT Essentials

8.1 Q: How do I reformat a CF card for use with Barudan BEVT machines?

A: To reformat a CF card, use the recommended file system (typically FAT16 or FAT32, depending on your machine’s firmware). Always back up your designs before formatting. Insert the card into your computer, right-click the drive, select “Format,” and choose the correct file system. After formatting, create the necessary folder structure as outlined in your BEVT manual before transferring design files.

8.2 Q: What’s the best way to balance thread tension on a BEVT machine?

A: Achieving balanced thread tension involves both the upper thread and the bobbin. If bobbin thread appears on the top of your design, tighten the upper thread tension. If the upper thread dominates the underside, loosen it. Adjust the bobbin case screw for fine-tuning. Always test on scrap fabric before starting your main project to ensure optimal stitch quality.

8.3 Q: Will using third-party accessories, like magnetic hoops, affect my BEVT warranty?

A: Using third-party accessories may have warranty implications depending on your region and the terms set by Barudan or your distributor. It’s advisable to consult your warranty documentation or reach out to your dealer before using non-Barudan products. Always ensure that any accessory you use is compatible with your BEVT model to avoid operational issues.

If you have more questions or need detailed guidance, refer to your BEVT instruction manual or contact your authorized Barudan service provider for expert support. Happy stitching!
