Melco Amaya XTS Embroidery Machine: Technical Guide & Production Optimization

1. Introduction to Melco Amaya XTS Capabilities

The Melco Amaya XTS stands at the cutting edge of industrial embroidery, merging raw power with refined design to deliver both speed and precision. Its modular architecture allows businesses to start with a single-head setup and scale up to enterprise-level, multi-head networks—making the Melco Amaya embroidery machine a favorite among commercial workshops and large-scale production facilities alike. Whether you’re personalizing a handful of garments or running high-volume cap embroidery, the XTS adapts seamlessly to your workflow.

In this technical guide, we’ll dive deep into the Amaya XTS’s core specifications, compare it with the XT and Bravo models, and equip you with ROI-driven insights for smarter buying decisions. You’ll also discover how accessory optimization—especially with advanced magnetic hoops—can redefine your production efficiency. Ready to unlock the full potential of your embroidery business? Let’s explore what sets the Amaya XTS apart.

Table of Contents

• 1. Introduction to Melco Amaya XTS Capabilities
• 2. Technical Specifications Breakdown: XTS vs XT vs Bravo
• 3. Cost-Benefit Analysis: XTS vs Bravo for Commercial Buyers
• 4. Performance Testing: Speed vs Stitch Quality
• 5. Advanced Troubleshooting Guide
• 6. Accessory Optimization Strategies
• 7. Conclusion: Matching XTS Capabilities to Business Needs
• 8. FAQ: Melco Amaya XTS Essentials

2. Technical Specifications Breakdown: XTS vs XT vs Bravo

2.1 Core Hardware Comparison Table

When evaluating embroidery machines for commercial use, the technical details matter. Here's a side-by-side look at the Melco Amaya XTS, XT, and Bravo models, focusing on the features that drive real-world production.

Key Takeaways:

- The XT leads in speed and frame size, making it ideal for high-volume, large-format projects.

- The XTS offers precision, modular scalability, and advanced automation, excelling in cap embroidery and mid-scale industrial use.

- The Bravo matches the XTS in basic specs but is limited by its non-modular design and lower networking capacity.

Innovations to Watch:

- Acti-Feed™ Automatic Tensioning: Takes the guesswork out of thread tension, ensuring consistent stitch quality across diverse fabrics.

- Real Hoop Limit Detection: Prevents costly errors by automatically detecting the actual sewable area, regardless of hoop style.

- Height Adjustable Presser Foot: Manually set between 0.5mm and 3.5mm for perfect control on everything from delicate silks to heavy denim.

2.2 Cap Embroidery Innovations

Cap embroidery is where the Amaya XTS truly flexes its muscle. Its wide-angle cap frame delivers the largest cap sewing field in the industry, allowing for stable, high-speed stitching with minimal backing. This means cleaner designs, sharper registration, and less material waste—an efficiency win for any production line.

- Industry's Smallest Cylindrical Lower Arm: Enables embroidery on a vast range of products—caps, visors, pockets, children's garments, and more.

- Redesigned Thread Trimmer: Handles thick threads like burmilana and metallics with ease, reducing thread waste and maintenance headaches.

- Reduced Backing Requirements: The advanced cap frame design means you can often skip extra stabilizers, speeding up workflow and cutting costs.

Bravo's Limitation: While the melco bravo embroidery machine can handle caps, it requires an optional cap driver and doesn't match the XTS's stability or field size. For businesses focused on cap production, the XTS's engineering is a clear differentiator.

3. Cost-Benefit Analysis: XTS vs Bravo for Commercial Buyers

3.1 Pricing & Warranty Comparison ($11,400–$19,000 Range)

Investing in an embroidery machine is a big decision, and understanding the cost structure is crucial. Here’s how the XTS and Bravo stack up:

Warranty (both models):

- 1 year: Parts and labor
- 3 years: All electronic components
- 5 years: Drive train components

Extended Plans:
- Premium Care: 1-year coverage, $100 parts credit.
- Premium PLUS Care: 3-year coverage, onsite service, $150 design credit, $450 toward a new EMT16X.

Networking Edge: The XTS’s ability to network up to 30 machines is a game-changer for growing businesses, while the Bravo’s 4-machine limit suits smaller studios or startups.

3.2 ROI Optimization Through Accessory Efficiency

Here’s where production efficiency meets bottom-line impact. Magnetic hoops—like MaggieFrame—can slash hooping time by up to 90% compared to traditional screw-based frames. For commercial buyers, this translates into dramatic labor savings, faster order turnaround, and reduced operator fatigue.

Why MaggieFrame?
- Powerful Magnetic Hooping: Securely holds everything from delicate knits to heavy denim, automatically adjusting to fabric thickness.
- Time Savings: What used to take 3 minutes per garment can now be done in 30 seconds—freeing up hours each week for more production or creative work.
- Durability and Compatibility: MaggieFrame hoops are built for industrial use, compatible with Melco machines, and engineered to last through high-volume cycles.

Bottom Line: For businesses looking to justify the higher initial investment in the XTS, the combination of modular scalability and labor-saving accessories like MaggieFrame delivers a compelling ROI. The result? More output, less downtime, and a competitive edge in commercial embroidery.

4. Performance Testing: Speed vs Stitch Quality

When it comes to industrial embroidery, numbers tell only half the story. The real magic happens when speed, stitch quality, and workflow efficiency collide—transforming raw specs into tangible business results. Let’s peel back the curtain on how the Melco Amaya XTS and its siblings perform under the relentless pace of real-world production.

4.1 1500 SPM vs 1000 SPM Real-World Output

Imagine a production floor humming with the synchronized rhythm of embroidery machines. Here, the difference between 1000 and 1500 stitches per minute (SPM) isn’t just theoretical—it’s a matter of output, deadlines, and profit margins.

The Amaya XT’s blistering 1500 SPM on flat surfaces and 1200 SPM on caps outpaces the XTS and Bravo by a wide margin, making it a powerhouse for high-volume, large-format jobs. But speed isn’t everything—consistent stitch quality is non-negotiable, especially when deadlines loom.

Case Study: Output in Action

In a multi-head scenario, 4 Melco embroidery machines (EMT16 heads) produced 16.9 garments per hour, outstripping an 8-head fixed machine’s 15.3 garments per hour. This isn’t just a win on paper; it’s a testament to the flexibility and efficiency of modular, independent-head systems.

Stitch Quality: Acti-Feed™ Makes the Difference

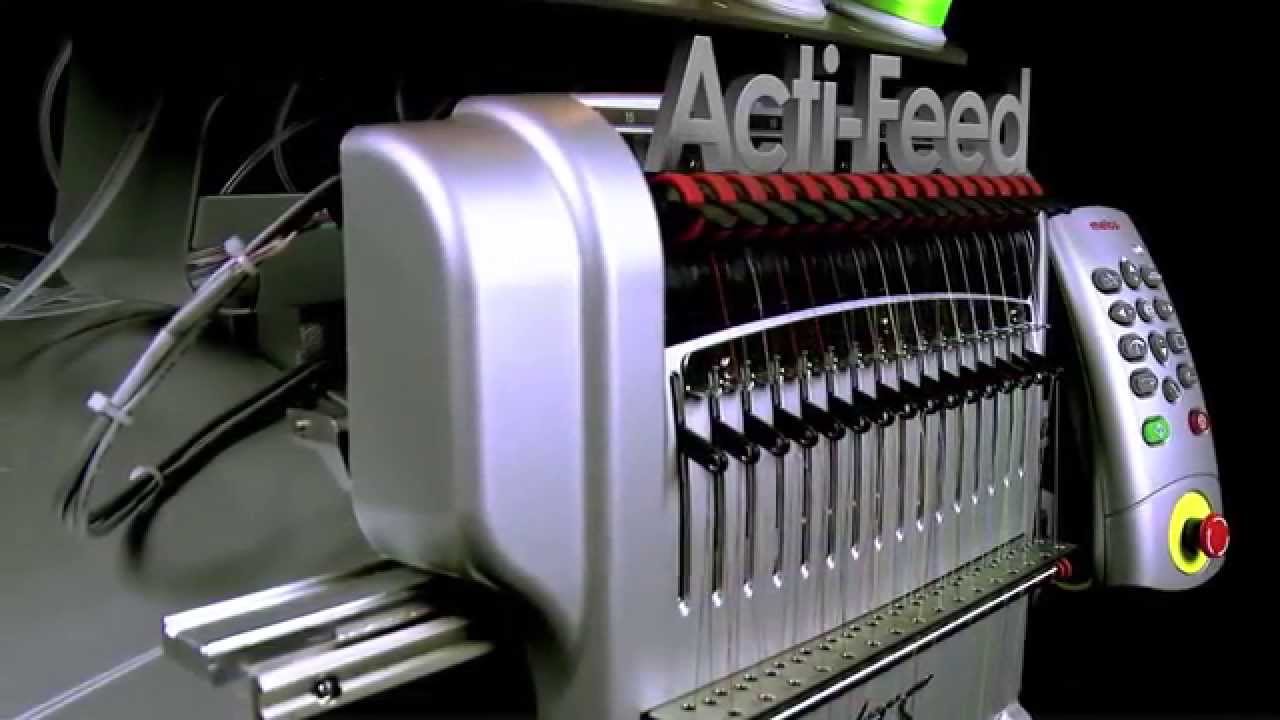

All Amaya models feature the proprietary Acti-Feed™ tensioning system, which automatically fine-tunes thread tension based on fabric type and stitch density. The result? Fewer thread breaks, less downtime, and a finish that’s as crisp on denim as it is on silk. This system ensures that even at high speeds, you’re not sacrificing quality for quantity.

Fabric Tension Consistency

Whether you’re running a marathon of polos or a sprint of custom jackets, Acti-Feed™ technology adapts on the fly, maintaining uniform stitch length and minimizing thread issues. It’s like having a master technician in every machine—no guesswork, just reliable results.

Key Takeaways:

- XT leads in raw speed and frame size—ideal for massive runs and oversized designs.

- XTS delivers precision and consistency—a sweet spot for mid-scale, high-quality production.

- Modular design means less downtime: if one head stops, the rest keep stitching.

4.2 High-Volume Cap Workflow Benchmarks

Caps are notorious for challenging even the best embroidery setups—curved surfaces, thick seams, and tight deadlines are the norm. Here’s how the Amaya XTS and its accessories rise to the occasion.

Cap Production Efficiency:

- Amaya XT: Up to 1200 SPM on caps, with the industry’s largest cap sewing field (362mm x 82mm).

- Amaya XTS & Bravo: 1000 SPM on caps, still formidable for most commercial needs.

Why Does This Matter? In high-volume workflows, these differences translate to faster order fulfillment and more consistent results, especially when every minute counts.

MaggieFrame’s Magnetic Stability:

When tackling complex, curved surfaces like caps, magnetic hoops such as MaggieFrame shine. Their powerful magnetic clamping system ensures fabrics stay put—no slipping, no puckering, and no hoop burn. The result? Sharper registration, cleaner designs, and less time spent re-hooping or reworking.

Real-World Impact:

- Time Savings: MaggieFrame’s magnetic hoops can reduce garment hooping time by up to 90% compared to traditional screw-based hoops. That’s less time prepping, more time stitching.

- Stability: The even tension and strong grip are especially valuable on caps, towels, and heavy fabrics—delivering pro-level results with less operator fatigue.

Bottom Line: For cap embroidery, the right combination of machine speed, smart tensioning, and magnetic hooping technology can turn a production bottleneck into a competitive advantage. Whether you’re running a single-head shop or a multi-head powerhouse, optimizing your workflow with tools like MaggieFrame can make the difference between “good enough” and “industry-leading.”

5. Advanced Troubleshooting Guide

Even the most advanced embroidery machines can hit a snag—literally. The Melco Amaya XTS is built for reliability, but when issues arise, a systematic troubleshooting approach keeps your production line moving.

Thread Break Diagnostics and Resolution

Thread breaks are the bane of every operator’s existence. The XTS tackles this with a four-pronged diagnostic workflow:

Common Culprits and Fixes:

- Bobbin Tension: Overwound or improperly tensioned bobbins cause breaks. Adjust or replace as needed.
- Design Issues: Scaled-down or dense designs can stress threads. Test with standard designs.
- Mechanical Failures: Cracked thread feeder gears may require replacement.

Laser Alignment and Calibration

While the XTS’s laser registration system is highly accurate, alignment can drift over time:

1. Column Distortion Checks: Inspect feeder gears for cracks
2. Sensor Alignment: Ensure sensors are clean and seated properly

Trimmer Maintenance and Repair

A well-maintained trimmer means cleaner cuts:
1. Debris Removal: Regularly clean trimmer blades
2. Lubrication: Apply grease to gear shafts
3. Component Replacement: Replace feeder gears as needed

Key Considerations:

- Software Updates: Always run AMAYA OS v10.00.051 or newer
- Technical Support: Persistent issues may require main-board replacement
- Design Testing: Use preloaded "undersea" designs for diagnostics

Pro Tip: When in doubt, consult Melco support through official troubleshooting guides or reach out to certified technicians. A little preventive maintenance goes a long way toward keeping your XTS humming.

6. Accessory Optimization Strategies

Maximizing the potential of your Melco Amaya XTS isn’t just about the machine—it’s about the right accessories working in perfect harmony. Let’s dive into how to get the most from your setup, from magnetic hoops to specialized attachments.

6.1 Magnetic Hoop Compatibility Guide

The quest for the perfect hoop is a balancing act between size, strength, and machine compatibility. For the Amaya XTS, the maximum supported frame size is 360mm x 300mm. While third-party magnetic hoops like the SewTalent 45x43cm (450x430mm) XL frame are popular in the market, they exceed the XTS’s physical limits and are better suited for the Amaya XT, which supports up to 500mm x 430mm.

MaggieFrame: The Magnetic Advantage

magnetic hoops for melco amaya like MaggieFrame are engineered for industrial use, offering:

• Powerful Magnetic Clamping: Securely holds everything from delicate knits to thick denim or towels.
• Even Tension: Textured contact surfaces ensure uniform grip, minimizing distortion and hoop burn.
• Durability: Made from high-grade PPSU engineering plastic and packed with more, stronger magnets, MaggieFrame hoops are built to last through heavy, daily use.

Why Choose MaggieFrame for XTS?

• Compatibility: MaggieFrame offers a range of sizes tailored to fit the XTS’s 360x300mm limit, ensuring you get the largest possible embroidery area without risking machine damage.
• Efficiency: Compared to traditional hoops, MaggieFrame can cut hooping time by up to 90%, freeing up hours for more production or creative work.
• Strength: Tests show MaggieFrame hoops provide up to 15% stronger clamping than many competitors, making them ideal for challenging materials like denim and towels.

Pro Tip: Always select a hoop size that matches your machine’s maximum frame specifications. Oversized hoops may seem tempting, but can lead to errors or even equipment damage.

6.2 Micro Cylindrical Attachment Workflows

Small, tricky items—like children’s garments, shirt pockets, or golf club covers—demand finesse. The Amaya XTS rises to the challenge with the industry’s smallest cylindrical lower arm, allowing embroidery in tight spaces with minimal fabric interference.

Optimizing for Small Spaces:

• MaggieFrame’s Textured Surfaces: For slippery or delicate fabrics, MaggieFrame’s textured contact area ensures a secure grip, preventing slippage and misalignment even at high speeds.
• No Need for Aftermarket Attachments: The XTS’s integrated design means you can tackle micro embroidery tasks without extra gadgets—just pair it with the right magnetic hoop for the job.

Workflow Tips:

• Use the smallest compatible MaggieFrame hoop for pockets or sleeves to maximize stability.
• Take advantage of the XTS’s laser registration and real hoop limit detection for precise placement every time.

Bottom Line: With the right combination of magnetic hooping and the XTS’s unique hardware, even the most challenging embroidery jobs become routine. Unlock new possibilities in your workflow—whether you’re personalizing baby onesies or adding logos to tiny shirt pockets.

Ready to transform your embroidery production? With the Melco Amaya XTS and the right accessory strategy—including MaggieFrame magnetic hoops—you’re equipped to tackle any order with speed, precision, and confidence.

7. Conclusion: Matching XTS Capabilities to Business Needs

Choosing the right embroidery machine isn't just a technical decision—it's a strategic move that shapes your business's future. The Melco Amaya XTS stands out for shops demanding precision, flexibility, and the ability to scale. Its modular design lets you start small and expand as orders grow, while features like Acti-Feed™ tensioning and the industry's smallest cylindrical lower arm unlock creative possibilities on everything from caps to children's garments.

If your focus is high-speed, large-format production—think oversized jacket backs or mass garment runs—the XT model's 1500 SPM and larger frame size deliver pure velocity. But for businesses where cap embroidery, intricate designs, and adaptability are paramount, the XTS is the clear champion. Its advanced automation, laser accuracy, and robust performance make it a powerhouse for commercial and enterprise embroidery alike.

Don't overlook the impact of accessory choices. Magnetic hoops like MaggieFrame can revolutionize your workflow, slashing hooping time and boosting ROI by freeing up labor for what matters most—creativity and output. In the end, matching machine strengths to your unique production needs is the secret to embroidery success. The Amaya XTS, paired with the right accessories, is ready to help you stitch your business vision into reality. Explore Melco embroidery machines for sale today.

8. FAQ: Melco Amaya XTS Essentials

8.1 Q: What is the weight of the Melco Amaya XTS embroidery machine?

A: The Amaya XTS weighs approximately 95.4 kg (210.3 lbs) with the cart, and 75 kg (165 lbs) without the cart.

8.2 Q: How much power does the XTS consume during operation?

A: Typical power consumption is 200 watts, with a maximum draw of 650 watts during peak operation.

8.3 Q: What are the different modes of the AMAYA OS Flexfeature?

A: AMAYA OS offers Flexfeature modes that allow you to operate multiple XTS heads either synchronously (all heads start and stop together) or asynchronously (each head runs independently). This enables greater flexibility in production—if one head stops for a bobbin change or thread break, the others keep running.

8.4 Q: What is the maximum tubular frame size supported by the XTS?

A: The XTS supports a maximum tubular frame size of 360mm x 300mm (14.17" x 11.8").

8.5 Q: How many needles does the XTS have?

A: The Melco Amaya XTS is equipped with 16 needles, supporting a wide range of thread colors for complex designs.

8.6 Q: Can the XTS be networked with other machines?

A: Yes, the XTS can be networked with up to 30 machines, making it ideal for scaling up production in larger facilities.

8.7 Q: What is the recommended operating environment for the XTS?

A: The recommended temperature range is 15–40°C with a maximum humidity of 85% RH.

8.8 Q: Does the XTS have self-diagnostic capabilities?

A: Yes, the XTS retrieves relevant machine data for troubleshooting, streamlining maintenance and minimizing downtime.

Have more questions? Explore the official Melco documentation or reach out to your local distributor for personalized support.
