Digitized Format Mastery: The Complete Guide to Machine Embroidery Files

1. Introduction: Navigating the World of Digitized Embroidery Formats

Embroidery files are the language your machine understands. A great design only stitches well when it’s saved in the right format, with the right data. Think like a “digital detective”: format determines what you can edit, what your machine can read, and how color and stitch details travel from software to fabric. In this guide, you’ll learn input vs output formats, how to convert images into stitch-ready files, which formats match which machines, and practical optimization—from image prep to test runs—so your designs stitch cleanly and consistently.

Table of Contents

• 1. Introduction: Navigating the World of Digitized Embroidery Formats
• 2. Embroidery File Formats Demystified: Input and Output Essentials
• 3. Image to Embroidery: The Digitization Process Explained
• 4. Machine Compatibility: Matching Formats to Your Equipment
• 5. Format Comparison: Choosing the Right File for Quality Results
• 6. Technical Optimization: Resolution and Color Handling
• 7. Conclusion: Mastering Digitized Formats for Professional Results
• 8. FAQ: Digitized Format Questions Answered

2. Embroidery File Formats Demystified: Input and Output Essentials

2.1 Input Formats: From Artwork to Digital Blueprint

Clear source artwork is the foundation of clean stitches. Services accept a wide range of image formats—commonly BMP, JPG, and PNG—and many also handle GIF, TIF, CDR, AI, PSD, PDF, PCT, and WMF (vector and layered files included). The rule holds: the better the image, the better the digitized result.

• Aim for high-resolution images (industry guidance: 300 DPI or higher) to capture detail for accurate stitch mapping.
• Favor high-contrast art. Crisp separation between light and dark areas helps define boundaries and stitch paths.
• Simplify before digitizing. Reduce gradients to solid shapes and limit thread colors; many practitioners keep designs to about 15 or fewer colors for smoother production.
• Vector prep helps. Converting to vector (e.g., in Illustrator or Inkscape) produces cleaner outlines that digitize into sharper stitches.
• Layered source files are useful during editing (similar to working in PSD in digital art), then export a clean, flattened image for digitizing.

These steps reduce complexity, improve edge definition, and shorten cleanup in the digitizing software—ultimately saving time on the machine as well as in the hooping and stitching stages.

2.2 Output Formats: Machine-Specific Language

Embroidery output formats fall into several families used across commercial and home machines. Understanding what each carries—and omits—prevents surprises at the machine.

• Universal/Expanded (production-focused)
• DST (Tajima): Industry workhorse for commercial production. Lightweight and widely compatible. Focuses on stitch commands and does not store thread color information, so you assign colors on the machine.
• EXP (Melco/Bernina ecosystem): Contains detailed stitch information (e.g., stitch type and density). It can preserve color data in many workflows, though compatibility is strongest within supported brands.

• Brand-specific (machine formats)
• PES embroidery software (Brother/Baby Lock): Popular in home/semi-commercial use. Stores stitch placement and thread color information; integrates smoothly with Brother software and machines.
• JEF (Janome): Optimized for Janome machines with brand-specific execution details.
• VP3 (Husqvarna Viking/Pfaff): Supports brand-tailored features for those ecosystems.
• DSB (Barudan), XXX (Singer/CompuCom), HUS (older Husqvarna Viking), CSD (Poem/Huskygram): Additional machine-native formats you’ll encounter depending on equipment.

Practical considerations:

• File size and portability: DST is often smallest because it carries only stitch commands. Color-rich formats (e.g., PES) may be larger but reduce setup time by carrying thread data.
• Compatibility first: Match the file to your machine’s primary format whenever possible. If in doubt, check the machine manual or ask your digitizer to supply multiple outputs (e.g., DST + brand-native).

2.3 Native vs Expanded Formats: Flexibility vs Compatibility

Think of formats in three tiers across the workflow:

• Native software formats: Fully editable inside digitizing software (complete control over stitch types, density, underlay, and sequencing). Machines cannot read these directly. Use these while you’re designing and refining.
• Machine formats (PES, JEF, VP3, DSB, etc.): Stitch-ready instructions tailored to a given brand. Great for loading and sewing on specific machines.
• Expanded formats (DST, EXP): Production-ready, broadly compatible files that follow stitch commands faithfully. Generally reliable on multi-brand commercial floors.

When to use what:

• Design and revision: Stay in native software format for maximum flexibility.
• Delivery and production: Export to the exact machine format you’ll run (or provide a universal expanded file such as DST/EXP if you need broad interoperability).
• Communication: Tell your digitizer which machine you’ll use and request that format upfront. Many services can output multiple formats and will test-sew samples to verify results before final delivery.

3. Image to Embroidery: The Digitization Process Explained

3.1 Preparing Artwork for Successful Conversion

A clean, optimized image makes machine embroidery digitizing faster and stitching cleaner. Follow this step-by-step:

1. Capture and resolution
   • Use high-resolution artwork (at least 300 DPI). If you’re scanning old art/photos, scan at 300 DPI or higher and keep the scanner glass clean to avoid artifacts like vertical lines in the image.
2. Contrast and simplification
   • Increase contrast and sharpness so edges pop.
   • Reduce gradients to solid color blocks; embroidery can’t reproduce photographic blends well.
   • Limit thread colors (around 15 or fewer is a practical ceiling in many workflows).
3. Vector conversion
   • Convert to vector paths (e.g., in Illustrator/Inkscape) for crisp, scalable outlines that digitize into clean stitch borders.
4. Size and detail checks
   • Respect physical limits: text generally needs to be at least about 0.25 inches high for readability; fine lines should be around 0.05 inches thick.
   • Avoid packing intricate details into designs under about 3 inches; too much micro-detail raises risk of thread nests and breaks.

3.2 Manual vs Auto-Digitization Techniques

Automated tools and manual techniques both have a place—choose based on artwork complexity and quality requirements.

• Auto-digitization
  • Best for simple, already-vector art with clear edges and few colors.
  • Fast but often needs cleanup; complexity can confuse auto-trace and yield jagged edges or poor stitch choices.
• Manual digitizing
  • Ideal for logos and detailed designs. You control stitch direction, density, and sequencing for professional results.
  • Choose stitch types by element:
    • Satin stitches: text, borders, narrow columns.
    • Fill stitches: larger areas that need consistent coverage.
    • Run stitches: fine outlines, small details, travel paths.
  • Sequence smartly to minimize trims and jumps, reduce thread breaks, and maintain clean registration.

Pro tip: Even when you start with auto-digitization, plan on manual refinement—especially for density, underlay, compensation, and stitch angles.

3.3 Testing and Refining Digitized Designs

Quality control is non-negotiable. Build a quick, repeatable testing routine:

• Sample stitch-out
  • Sew a test on the same or similar fabric you’ll use in production. This confirms how density, pull, and underlay behave on that material.
• Parameter adjustments
  • Stitch density: Loosen or tighten to avoid thread buildup or show-through.
  • Pull compensation: Counter fabric draw-in to keep shapes and text true to size.
  • Underlay: Choose the right foundation (e.g., edge-walk, zigzag, fill underlay) based on fabric stability and design area.
• Visual criteria
  • Check edge sharpness, consistent fill texture, smooth color transitions (as the design allows), and overall registration.
• Iterate quickly
  • Tweak, re-export, and test again. Many digitizing workflows also test different machine-format exports to confirm color handling and command interpretation.
• Implementation
  • Transfer files via USB or Wi-Fi as your machine allows. Mount fabric securely in the hoop, verify thread order and needle assignments (especially for DST and other formats that don’t store thread colors), and run a trace before stitching.

This structured approach—strong artwork prep, deliberate digitizing, and disciplined testing—produces designs that stitch cleanly and scale reliably from one garment to the next.

4. Machine Compatibility: Matching Formats to Your Equipment

4.1 Universal Formats: DST and PES Cross-Platform Performance

Two formats do most of the heavy lifting in day-to-day embroidery, especially for industrial embroidery machines.

• DST (Data Stitch Tajima): The commercial workhorse. It’s stitch-focused and widely accepted across brands and software, which is why it dominates production floors. Because DST does not store thread color data, you’ll assign colors on the machine. The upside is small, portable files and smooth transfer between different systems.
• PES (Brother/Baby Lock): A home/semi-pro favorite that preserves color information and design-specific data. PES often carries hoop and color sequencing details, giving operators immediate visual feedback and reducing setup time. As noted in industry guidance, PES can also handle automatic hoop size adjustment, while DST may require manual dimension checks depending on the machine.

Compatibility in practice:

• Tajima, Barudan, Brother, and many other machines read DST reliably; Brother/Baby Lock excel with PES. When you’re unsure, request both your brand’s native format and DST/EXP to keep options open.
• Universal formats (DST/EXP) act as bridges between brands. Expect to manually manage thread colors and verify dimensions when moving away from a machine’s native format.

4.2 Brand-Specific Format Ecosystems

Manufacturer ecosystems carry optimizations you won’t get from universal files. Match your format to your machine for best results:

• Tajima: DST is the staple; Tajima devices may also accept DSB, DSZ, T01, TBF, and TCF. DST’s stitch-only philosophy streamlines transfer and storage in larger operations.
• Brother/Baby Lock: PES is primary; Brother systems also recognize PEC, PHB, and PHC. PES’s color-rich architecture streamlines multi-color designs.
• Barudan: Models use formats including FMC (supports up to 9 needles), FDR-II Lockstitch (up to 15 needles and optional sequins), and FDR-II Chenille Combination. Newer FDR-3 implementations enhance thread color display for reduced errors.
• Janome/Elna: JEF, JAN, and JEF+ are common, with JEF as the standard.
• Bernina: ART family (ART/ART42/ART50/ART60) for Artista models; EXP is used widely in USB workflows.
• Husqvarna Viking/Pfaff: HUS (older), VIP/VP3 (modern). Pfaff may also use KSM, PCD, PCM, PCQ, PCS.
• Singer: XXX.

Reality check from digitizing providers: High-quality shops routinely output Tajima (.DST), Barudan (.DSB), Pfaff (.KSM), Melco/Bernina (.EXP), Happy (.TAP), and more, and accept a broad range of inputs (BMP, JPG, PNG, CDR, AI, PSD, PDF, etc.). When in doubt, ask your digitizer to deliver multiple outputs for your equipment mix.

Best practices:

• Prioritize your machine’s native format to leverage brand-specific features.
• Verify needle capacity (for example, moving a design from a 15-needle setup to a 9-needle machine).
• Test-run a small sample to confirm color order, size, and registration before production.

4.3 Optimizing Garment Embroidery Workflow

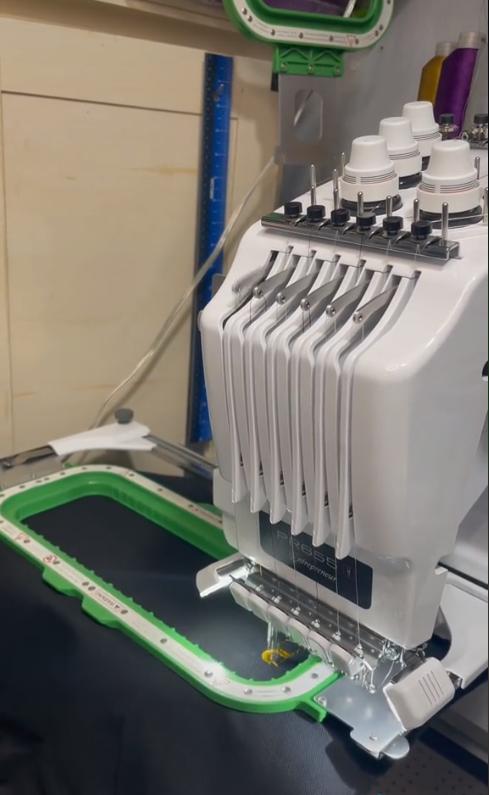

Magnetic embroidery hoops like MaggieFrame help stabilize the mechanical side of compatibility—consistent fabric tension, cleaner registration, and fewer hoop marks—so your machine-format choice can shine. With even pressure across layers, you reduce distortion that might otherwise throw off color-to-color alignment, especially with dense or multi-color files (e.g., PES with stored color data or DST with manual color assignment).

• Speed and focus: MaggieFrame can reduce hooping time dramatically (often from about 3 minutes to roughly 30 seconds per garment), freeing capacity to test-sew and validate multiple output formats before production.
• Quality and repeatability: Even tension helps complex digitized designs stitch predictably—vital when you’re moving the same file between machines (e.g., DST on a Tajima and PES on a Brother).

Important note: MaggieFrame is designed for garment embroidery hooping, not for cap/hat hooping. Choose sizes and brackets that match your machine for the best fit and stability.

5. Format Comparison: Choosing the Right File for Quality Results

5.1 Commercial vs Home Embroidery Format Needs

To achieve quality results on the best embroidery machine, understanding format needs is essential. If you’re running commercial jobs on mixed-brand floors, DST’s reliability and portability are tough to beat. It’s small, stable, and universally accepted—but it’s stitch-only, so you’ll set thread colors at the machine.

If you’re running a Brother/Baby Lock workflow at home or in a small studio, PES offers a color-rich experience that’s easier to visualize and set up. It preserves color sequences and hoop data in many workflows, which is a big win for detailed, multi-color designs.

Tradeoffs to weigh:

• File size vs convenience: DST stays lean by skipping color data; PES stores more information, which can simplify setup.
• Cross-platform vs brand-optimized: Use DST/EXP for multi-brand flexibility; use PES/JEF/VP3/ART when you want brand-specific features and color handling.
• Production volume: In high-volume shops, DST’s universality and small file size keep networks and machines moving smoothly.

Tip: Ask for both the brand-native file and a universal DST/EXP. That way, you can pivot quickly if you switch machines or encounter a quirk in color display.

5.2 Specialized Format Showdown: EXP vs VP3 vs ART

Here’s how three popular, brand-leaning formats stack up for technical work:

• EXP (Melco/Bernina ecosystem): Emphasizes precise placement and strong post-digitizing editability. A balanced choice when you need moderate file sizes, some color handling, and frequent adjustments.
• VP3 (Husqvarna Viking/Pfaff): Modern format with comprehensive color data and excellent scalability characteristics in its ecosystem—useful when you expect size adjustments and want to maintain design integrity.
• ART (Bernina): Bernina-specific family supporting advanced editing and complex projects in the Bernina universe.

Comparative snapshot (from industry guidance):

• EXP: High editability, moderate file sizes, limited color info; aligned with Melco/Bernina.
• VP3: Full color support and strong scaling behavior for detailed work.
• ART: Full-featured Bernina-specific editing environment.

Reference metrics (where provided):

• PES can accommodate up to 750,000 stitches (useful context when considering complex, color-dense projects).
• Format support varies by software; verify your editor handles your target format reliably.

5.3 Decision Framework: Matching Formats to Project Requirements

Use this quick path to pick a format with confidence:

1. Start with your machine
   • If you’re on Brother/Baby Lock: Default to PES.
   • Janome: JEF. Husqvarna Viking/Pfaff: VP3 (or HUS/VIP for older units). Bernina: ART or EXP. Tajima and mixed-brand floors: DST or EXP.
2. Consider design complexity and color count
   • Heavy color work and detailed visuals: Prefer formats that carry color and sequencing (PES/VP3/JEF/ART).
   • Simple shapes and solid fills for production: DST/EXP works well and travels easily.
3. Factor in production volume and interoperability
   • Multi-machine, cross-brand environments: Export a universal DST/EXP and plan manual color assignment.
   • Single-brand, detail-critical projects: Stay native (PES/JEF/VP3/ART) to maximize feature support.
4. Confirm constraints
   • Needle count: Ensure the file’s sequence fits your machine’s needles.
   • Hoop size: Verify dimensions—PES can auto-adjust hoop size in many workflows; DST may need manual checks.
5. Always test-sew
   • Run a sample to validate color sequence, density, pull compensation, and registration before committing to bulk runs.

6. Technical Optimization: Resolution and Color Handling

6.1 Resolution Standards for Flawless Execution

Your stitch file can only be as precise as your source artwork. Professional workflows commonly target 300 DPI or higher for input images so edges digitize cleanly. Vector artwork (from Illustrator/CorelDRAW, etc.) is ideal because it scales without quality loss and gives digitizing software crisp boundaries to convert into stitches.

If you’re scanning original art, insights from photo-scanning workflows apply:

• Many choose 600 DPI over 1200 DPI for efficiency and storage savings when the visual difference is negligible for the use case.
• Clean the scanning glass periodically to prevent artifacts (like vertical lines) that would force you to retouch before digitizing.

Scaling considerations:

• Avoid pushing tiny text or ultra-fine lines below what your stitch type can cleanly render. Increase element sizes or switch to appropriate stitches (run or satin) when necessary.
• Test at intended final size, not just on-screen. Fabric behavior, not pixels, will decide the outcome.

6.2 Advanced Color Management Techniques

Thread planning is a design decision and a format decision.

• Color limits and simplification: Keep thread colors under control (around 15 or fewer is a practical ceiling in many workflows). Replace gradients with stepped solids or layers of stitching—embroidery can’t reproduce photographic blends directly.
• Format behavior:
  • PES and VP3 carry color information and sequencing—great for consistent color mapping across projects and streamlined setup.
  • DST (and similar stitch-only expanded formats) requires manual color assignment. Build a repeatable color chart for each machine brand to avoid mistakes.
• Fabric and thread realities: Translate digital colors to available thread lines with fabric color in mind. Expect minor visual shifts and plan underlay/density to mitigate show-through and sheen differences.
• QA loop: Always sample stitch. Validate color order, transitions, and coverage against your intended fabric before scaling to production.

6.3 Achieving Consistent Fabric Tension

Magnetic embroidery hoops like MaggieFrame help your digitized details land exactly where you intended by maintaining even pressure across fabric layers. This steadies registration for multi-color sequences, reduces hoop burn, and limits distortion—essentials when you’re pushing fine satin borders, small text, or dense fills.

Why it matters:

• Consistent hooping, especially with large embroidery hoops, lets you judge stitch density, underlay, and pull compensation accurately from test to production.
• Faster setup means more time to refine the file: MaggieFrame can shorten garment hooping substantially (often from about 3 minutes to roughly 30 seconds per item), so you can evaluate alternate exports (e.g., PES vs DST) without slowing throughput.

Practical note: MaggieFrame is designed for garment embroidery hooping, not for cap/hat hooping. Choose the bracket and hoop size that match your machine to maintain stability and repeatability.

Call to action:

• Standardize your hooping method with a magnetic hoop, then lock in your format and color workflow. The combination—stable fabric plus the right file—delivers crisp edges, clean fills, and consistent results across runs.

7. Conclusion: Mastering Digitized Formats for Professional Results

For users of home embroidery machines, professional results come from a simple rhythm: prepare strong artwork (high-contrast, 300 DPI or higher), design in a fully editable native file, then export to the exact format your machine reads. Match format to equipment—use brand-native (PES/JEF/VP3/ART/DSB) for color-carrying convenience; choose DST/EXP for cross-brand reliability and assign colors on-machine. Always test-sew and iterate. Quick recommendations: hobbyists—favor brand-native files and keep color counts modest; small shops—request both brand-native and a universal DST/EXP, verify hoop size and needle count; production floors—standardize on DST/EXP, maintain color charts, and sample on target fabric.

8. FAQ: Digitized Format Questions Answered

8.1 Q: What’s the key difference between DST and PES, and when should I use each?

DST is a lightweight, stitch-focused format widely accepted across brands; it does not store thread colors, so you assign them on the machine. PES (Brother/Baby Lock) preserves stitch placement and thread color information and integrates smoothly in that ecosystem. Use brand-native files (like PES) for convenience and color consistency; use DST (or EXP) when you need cross-brand portability.

8.2 Q: My machine won’t read the file. How do I troubleshoot compatibility?

Confirm the format matches your machine (e.g., PES for Brother, JEF for Janome, VP3 for Husqvarna/Pfaff, DSB for Barudan). If unsure, ask for both your brand-native file and a universal DST/EXP. Re-export from the native design file, verify hoop size and dimensions, check needle count planning, transfer the file again (USB/Wi‑Fi), and run a small test-sew to validate color order and registration.

8.3 Q: What minimum image resolution should I use before digitizing?

Aim for 300 DPI or higher. Favor high-contrast artwork, simplify gradients into solid shapes, and reduce color count (around 15 or fewer is a practical ceiling). Vector artwork (from Illustrator/CorelDRAW/Inkscape) gives cleaner edges that digitize into sharper stitches. Ensure small text and fine lines are sized realistically for embroidery, then test at final size.

8.4 Q: How do I convert designs between formats without losing editability?

Keep your master in a native software format for full control over stitch types, density, underlay, and sequencing. Export production files to the machine’s format (PES/JEF/VP3/DSB, etc.) or to universal DST/EXP for cross-brand use. Many digitizers can supply multiple outputs—request what your equipment needs and validate with a test-sew. Using the best digitizing software for embroidery ensures you maintain editability throughout the process.

8.5 Q: Which formats retain thread color information—and which don’t?

PES and VP3 typically store thread color information and sequencing, which streamlines setup on supported machines. DST focuses on stitch commands and lacks thread color data; you’ll assign colors on the machine. EXP can preserve color in many workflows, with strongest compatibility within supported ecosystems.

8.6 Q: Can I resize a design after export?

Make major edits—including size changes—inside the native design file to preserve proper stitch density, underlay, and compensation. Then re-export to your target machine format and test-sew on similar fabric. Resizing purely inside a machine format can yield density or coverage issues; validate before production.

8.7 Q: How do I handle “corrupted” or non-opening embroidery files?

Re-download or re-transfer the file, then try opening it in your digitizing software. If it still fails, regenerate from the native master or request a fresh export from your digitizer (ideally in both brand-native and DST/EXP). Confirm file extensions weren’t changed inadvertently and test on another compatible machine or software if available.

8.8 Q: What’s the safest format strategy for mixed-brand production floors?

Standardize on DST or EXP for portability, and maintain brand-native files when you’ll run on specific machines that benefit from color data or ecosystem features. Document color charts for each machine brand, verify hoop size and final dimensions, and always sample stitch to confirm density, compensation, and registration.
