Toyota 820A Embroidery Machine Ultimate Guide (2025): Repairs, Upgrades & Modern Solutions

1. Introduction to Toyota 820A Maintenance and Modernization

The Toyota 820A embroidery machine is a legend—robust, reliable, and built to last. Yet, as the years tick by, even the most stalwart machines face new challenges. Owners today grapple with aging electronics, scarce replacement parts, and the daunting task of connecting legacy hardware to modern computers. If you’ve ever stared down a “Sewing Motor Lock” error or wrestled with a USB-to-serial adapter that just won’t play nice with Windows 10, you’re not alone.

This guide is your roadmap to keeping the 820A humming in 2025 and beyond. We’ll unpack official manuals and repair diagrams, demystify common error messages, and walk through the latest Toyota embroidery machine software and hardware upgrades—like FTDI USB adapters and the Black Box USB solution. Whether you’re a seasoned technician or a DIY enthusiast, you’ll find practical strategies to bridge the gap between vintage engineering and today’s digital demands. Let’s future-proof your Toyota 820A—one stitch, one upgrade, one smart fix at a time.

Table of Contents

• 1. Introduction to Toyota 820A Maintenance and Modernization
• 2. Essential Technical Documentation and Repair Resources
• 3. Modern Software Solutions for Legacy Machines
• 4. Replacement Parts Sourcing Strategy
• 5. Cost-Effective Maintenance Decisions
• 6. Garment Embroidery Efficiency Boosters
• 7. Community-Driven Maintenance Solutions
• 8. Frequently Asked Questions
• 9. Conclusion: Future-Proofing Your 820A

2. Essential Technical Documentation and Repair Resources

Keeping a Toyota 820A running smoothly starts with having the right technical resources at your fingertips. Over the years, the embroidery community has rallied to collect, digitize, and share key documentation and troubleshooting guides for these legacy machines.

2.1 Official Manuals and Parts Diagrams

When it comes to in-depth technical know-how, nothing beats the original manuals. DataStitch offers a comprehensive downloadable ZIP file (36.2MB) containing the Toyota AD 820 Instruction Manual and Parts Manual. These PDFs walk you through everything from machine setup and thread management to troubleshooting communication errors. The Training Guide, also available, details assembly steps, prethreaded cone installation, and error resolution techniques—like resetting the machine to clear communication hiccups.

For those needing to get under the hood, the Embroidery Machine WIKI is a goldmine. It breaks down the 820A/830’s electronics, including detailed sections on the power box, control panel, and motherboard. The motherboard, in particular, houses the ROM chips that differentiate the 820A from the 830, and understanding its layout is crucial for diagnosing hardware issues.

While official parts diagrams and service manuals are sometimes elusive, the embroidery forums and specialized repair services can often provide these resources upon request. The collective wisdom of these communities is invaluable, especially when tackling rare or complex repairs.

2.2 Solving 'Sewing Motor Lock' and Other Common Errors

Few things are more frustrating than firing up your 820A only to be greeted by a cryptic error message. The “Sewing Motor Lock” error is a notorious culprit, but with the right approach, it’s often solvable.

Step-by-Step Troubleshooting:

• Check the Power Supply: According to both user reports and PLRElectronics repair data, a failed power supply is the most common cause of the “Sewing Motor Lock” error. Even if the flywheel turns freely, insufficient voltage from the power unit can trigger this message. Inspect the power boxes—models like Cosel P300E-24 (large) and P15E-5 (small) are standard. Each has an internal fuse and indicator lights; if a light is out, check and replace the fuse or the entire unit as needed.
• Motherboard and Electronics: Sometimes, cleaning the motherboard (especially if it’s accumulated oil or dust) and ensuring all connections are solid can resolve persistent errors. If electronics repairs are needed, specialists like PLRElectronics offer cost-effective services, often cheaper than sourcing new boards.
• Fuse Replacement: Both the power supplies and main boards contain fuses that can blow over time. Always power off and unplug the machine before inspecting or replacing fuses.
• Mechanical Adjustments: If the error persists after electrical checks, inspect the sewing motor and related mechanical components for jams or misalignments. Lubricate moving parts as recommended in the manual.
• Clearing Communication Errors: Communication errors (like “Error #2”) often stem from software or OS incompatibility. Resetting the machine, configuring the correct COM port settings, or initializing memory through test mode (as described in the DataStitch guide) can help.

Key Takeaway: Most “Sewing Motor Lock” issues trace back to power supply faults or blown fuses. Start there before diving into more complex repairs. For persistent or mysterious errors, consulting the official manuals and community forums can save hours of frustration.

3. Modern Software Solutions for Legacy Machines

Breathing new digital life into the Toyota 820A means solving the puzzle of software compatibility and data transfer. With floppy disks and serial ports fading into history, modernizing your workflow is both an art and a science.

3.1 Windows 10/11 Compatibility with USB Adapters

Let’s face it—connecting a 1990s-era machine to a 2025 computer can feel like bridging two different worlds. The secret weapon? FTDI-based USB-to-serial adapters.

Configuration Guide:

• Adapter Selection: FTDI chipsets are the gold standard for USB-to-serial communication. They’re widely supported and minimize driver headaches on Windows 10/11.
• COM Port Settings: From T-Shirt Forums and DataStitch FAQs, the consensus is clear:
  • Bits per Second: 9600
  • Data Bits: 8
  • Parity: Odd
  • Stop Bits: 2
  • Flow Control: Hardware
• Software Setup: Legacy programs like Embroidery Fonts Plus (EFP) still work, provided you configure the correct COM port settings as detailed in Toyota 9100 embroidery machine manual and set the machine type to “Toyota” in EFP’s Emb Machine Manager tab.
• Troubleshooting Tips:
  • Use Device Manager to confirm which COM port your adapter is using.
  • If you hit a “Communication Error #2,” double-check your cable connections and port settings.
  • Some users report better results running older software in Windows XP compatibility mode or within a virtual machine (see community-driven solutions later in this guide).

Pro Tip: If your PC lacks a native serial port, a quality FTDI USB adapter is your bridge to the past—just be patient with the setup, and don’t be afraid to consult the forums if you get stuck.

3.2 Black Box USB Upgrade Implementation

For those ready to ditch serial cables altogether, the Black Box USB adapter is a game-changer. Acting as an external device that mimics a floppy drive, it plugs into the 820A’s 25-pin serial port and lets you transfer DST files directly from a USB stick—no software installation required.

How It Works:

1. Hardware Setup:
   • Connect the Black Box to the 820A’s 25-pin serial port.
   • Insert a USB stick (with DST files) into the Black Box.
2. File Selection and Transfer:
   • Use the device’s dial or interface to select the desired file.
   • On the 820A, use the control panel sequence (e.g., DATA → SET → 0 → 1 → SET) to initiate the transfer.
3. Advantages:
   • Plug-and-play simplicity—no more wrestling with outdated software or drivers.
   • Compatible with multiple Toyota models (820A, 820, 830, 850, 851, 860).
   • Available with a 1-year warranty and U.S.-based support.
4. Cost-Benefit Analysis:
   • While the Black Box is more of an upfront investment than a basic USB-to-serial adapter, it saves hours of configuration and troubleshooting.
   • Eliminates dependency on legacy computers and operating systems.

Key Considerations:

• Always save your designs in DST format for maximum compatibility.
• Some advanced Black Box variants offer Wi-Fi capabilities, but check compatibility before purchase.

Bottom Line: If you want a hassle-free, modern workflow for your Toyota 820A, the Black Box USB adapter is the most reliable solution—no software updates, no legacy OS headaches, just seamless file transfers.

---

Ready to keep your Toyota 820A thriving in the digital age? Stay tuned for the next sections, where we’ll dive into parts sourcing, cost-effective repairs, and community-driven hacks to extend your machine’s life even further.

4. Replacement Parts Sourcing Strategy

Keeping your Toyota 820A humming into the future hinges on Toyota embroidery machine parts sourcing—no small feat for a legacy machine. Let’s break down the most reliable strategies for tracking down power supplies, motherboards, and those elusive mechanical components.

4.1 Power Supply Exchange Programs

When your 820A throws a “Sewing Motor Lock” error, odds are the culprit is a voltage-starved power supply rather than a mechanical breakdown. Before you rush to order a replacement, always check the fuses inside your existing power boxes—models like the Cosel P300E-24 (large) and P15E-5 (small) are standard, and a simple fuse swap can sometimes bring your machine back to life.

If the power supply itself is toast, DataStitch offers a straightforward exchange program for AD820/830 models. Here’s how it works: you send in your defective unit, and in return, you receive a refurbished replacement backed by a 90-day warranty. Electronics, once shipped, are non-returnable—a common industry policy. This program is a lifeline for machines that would otherwise be sidelined by discontinued parts.

For those who prefer to shop around, third-party suppliers and secondary markets occasionally stock used or refurbished power supplies. Sew Many Parts, for example, lists discontinued components and sometimes has used options available, though you’ll need to contact them directly for pricing and availability.

Here’s a quick comparison:

Pro Tip: Always prioritize checking fuses before replacing an entire power unit. If a full replacement is necessary, exchange programs like DataStitch’s offer peace of mind and tested reliability.

4.2 Motherboard Repair vs Replacement

Motherboards are the nerve center of your 820A, and when they fail, the decision between repair and replacement can feel daunting. Here’s the reality: new boards are rare and pricey, so repair is usually the smarter move.

PLRElectronics specializes in repairing Toyota 820A/830 motherboards. Their service includes in-house testing on actual machines and comes with a 1-year warranty. They even offer rush services, swaps, and trades—making it easier to get back up and running without hunting down a brand-new board.

One crucial detail: the motherboard contains ROM chips with software specific to either the 820A or 830 models. Always verify compatibility before proceeding with a repair or swap to avoid software conflicts.

If you’re considering a replacement, be prepared for limited availability and higher risk—used boards may lack proper testing or warranties, and new ones are increasingly hard to find.

Key Takeaway: For most users, professional repair services like PLRElectronics offer the best balance of cost, reliability, and warranty coverage. Only pursue full replacement when repair is impossible or the board is beyond salvage.

5. Cost-Effective Maintenance Decisions

Every embroidery operator eventually faces the big question: Should I repair or replace? Let's crunch the numbers and consider both short-term fixes and long-term investments.

5.1 Third-Party Repair Service Analysis

Third-party Toyota embroidery machine repair specialists like PLRElectronics have become the go-to for Toyota 820A electronics repairs. Their fee structure is refreshingly transparent: a $100 flat diagnostic fee covers an initial one-hour assessment. If you choose to proceed with the repair, that fee is waived—so you only pay for successful fixes. Just remember, shipping costs are on you.

PLRElectronics has a solid track record, especially with power supply issues like the infamous "Sewing Motor Lock" error, which they often resolve by addressing voltage output problems rather than replacing the entire motor. While their repairs don't always come with a published warranty duration, exchange programs through suppliers like DataStitch include a 90-day warranty on electronics.

Here's a quick look at how repair compares to replacement:

Bottom Line: For diagnosable issues, repair is usually more economical—especially with diagnostic fees waived for successful jobs and expert testing reducing the risk of hidden defects.

5.2 Long-Term Cost Projections

Let's zoom out to the five-year horizon: Is it smarter to keep repairing, or should you bite the bullet and buy a used replacement machine?

Toyota machines, while robust, depreciate faster than some competitors—affecting their resale value and the economics of replacement. New or even used AD830 machines can run anywhere from $2,000 to $3,995, while individual parts (when available) come with their own price tags and uncertainty.

Repairs, on the other hand, tend to be more cost-effective for as long as parts and expertise remain accessible. Certified dealers like DataStitch offer better warranties and more rigorous testing than individual sellers, adding peace of mind to the repair route.

Key Considerations:

• Cost Efficiency: Repairs are generally cheaper over time, especially for common electrical faults.
• Depreciation: The value of used machines drops quickly, making high-priced replacements a questionable investment unless your current machine is truly beyond repair.
• Vendor Reliability: Stick with certified dealers and repair specialists for the best warranty and support.

Final Word: For most owners, investing in quality repairs and leveraging exchange programs is the most cost-effective way to keep your Toyota 820A running strong for years to come.

6. Garment Embroidery Efficiency Boosters

Let’s shift gears from repairs to pure productivity. If you’re looking to turbocharge your garment embroidery workflow, advanced hooping solutions can make all the difference—and MaggieFrame magnetic hoops are leading the charge.

6.1 Advanced Hooping Techniques

Traditional screw-based embroidery hoops can turn even the simplest project into a time sink. Enter MaggieFrame magnetic hoops: with their powerful magnetic clamping system, you can reduce garment hooping setup time by up to 90%. Imagine swapping out the tedious twist-and-tighten routine for a swift, one-handed snap—just like upgrading from dial-up to fiber optic internet.

How does MaggieFrame pull this off? High-strength magnets automatically adapt to fabric thickness, holding everything from delicate silks to heavy sweatshirts securely in place. No more fiddling with screws or worrying about slippage. The result? Faster setups, fewer mistakes, and a workflow that keeps pace with your creativity.

For high-volume shops or anyone tired of hand fatigue, MaggieFrame’s efficiency is a game-changer.

6.2 Fabric Preservation Best Practices

Speed is great, but not at the expense of your materials. MaggieFrame’s design goes beyond quick setup—it’s engineered to protect your fabrics, too.

Thanks to its even tension distribution and use of BASF Ultrason P3010 PPSU engineering plastic, MaggieFrame minimizes the risk of hoop burn and fabric distortion. The textured contact surface grips fabric gently yet firmly, spreading pressure evenly and preventing those dreaded marks that can ruin a finished piece.

Unlike traditional hoops that rely on concentrated screw pressure (often leading to puckering or permanent creases), MaggieFrame’s magnetic force is both strong and subtle—delivering industrial-grade holding power without compromising fabric integrity.

Pro Tip: For best results, always align your fabric using MaggieFrame’s built-in reference lines. This not only speeds up setup but ensures consistent, professional-quality embroidery every time.

Ready to experience the MaggieFrame difference? Whether you’re a solo artist or running a full-scale shop, upgrading to magnetic hooping (available with Toyota embroidery machine for sale packages) is one of the fastest ways to boost productivity and protect your investment in materials. Give it a try and see why so many embroidery pros are making the switch!

7. Community-Driven Maintenance Solutions

When official support fades and manuals become collector’s items, the Toyota 820A user community steps up—sharing, hacking, and innovating to keep these legendary machines alive. If you’ve ever scoured forums at midnight for a fix or jerry-rigged a cable to bridge decades of tech, you’re in good company. Let’s explore the most effective community-driven solutions that are keeping the 820A humming in 2025.

7.1 Virtual Machine Configurations

Running legacy embroidery software on a modern computer can feel like asking a rotary phone to join a Zoom call. But thanks to virtualization, you don’t have to choose between your trusty Toyota and your up-to-date PC.

How It Works: The embroidery community has widely adopted virtual machines (VMs) as a workaround for outdated software. The typical setup involves running a Windows XP virtual machine inside your current Windows 10 or 11 system—using tools like Oracle VirtualBox or VMware Workstation. This “Windows inside Windows” approach lets you install and operate legacy software (like Pantograms utilities or Toyota Techstream) that would otherwise refuse to run on a modern OS.

Key Steps:

• Download and Install VirtualBox or VMware: Head to the official VirtualBox website, download the installer, and follow the prompts. You’ll soon see a new VM icon on your desktop.
• Create a Windows XP VM: Import a Windows XP 32-bit image into your VM software. This will serve as your “old school” workspace.
• Install Legacy Software: Within the VM, install your embroidery utilities or diagnostic tools. Configure serial port passthrough if you need to connect to the 820A.
• Connect Hardware: Plug your USB-to-serial adapter into your main computer, then map it to the VM so the legacy software can “see” your machine.

Real-World Example: Forum users have reported success running Pantograms Design File Manager and Communications Driver (PMCCOMM) inside a Windows 95 or XP virtual machine—sometimes even restoring old hard drive images into the VM for seamless operation. While latency can increase and setup is more complex, this method breathes new life into software that’s otherwise locked in the past.

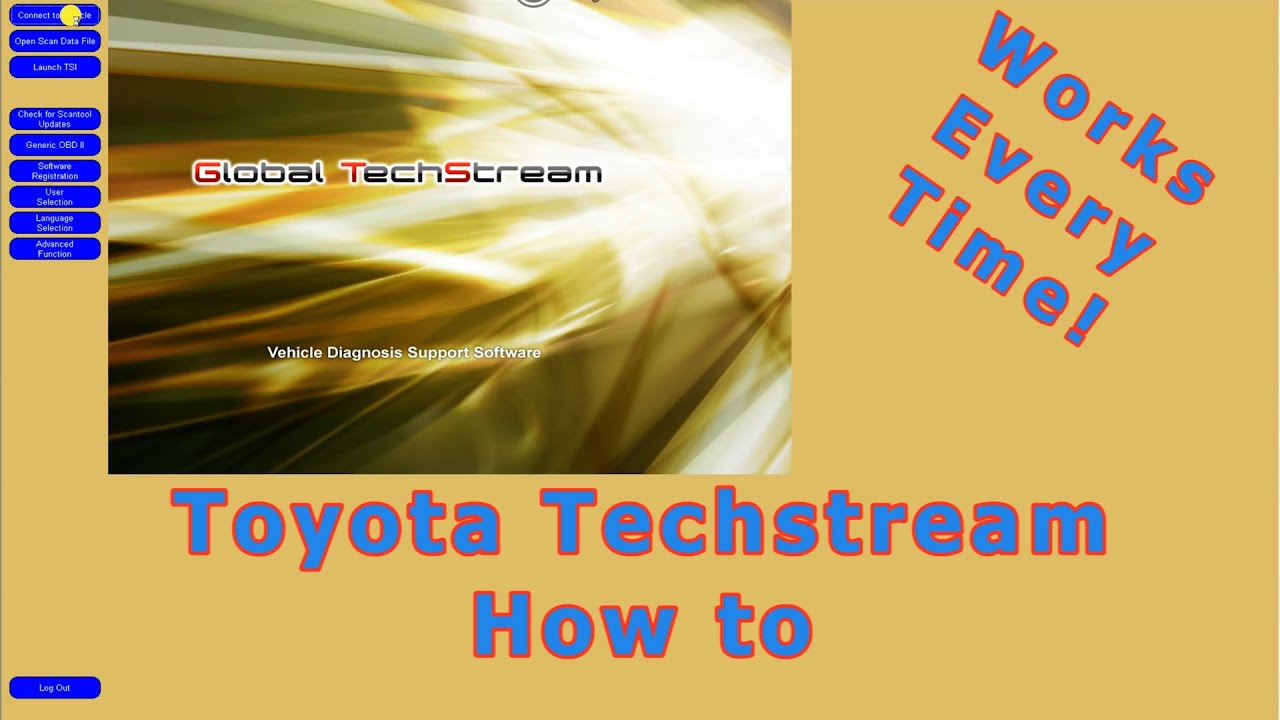

YouTube Insight: A popular video walks through installing Techstream in a Windows XP VM, highlighting the value of this approach for diagnostic tools for Toyota Expert ESP 9000 embroidery machine and design transfers. The same principles apply to embroidery software: if it ran on XP, it can likely run in your VM.

Limitations:

• Increased complexity and potential for lag.
• Some USB-to-serial adapters may require additional driver tweaks.
• Not all VM software handles serial port mapping equally well; VMware is often preferred for this reason.

Bottom Line: Virtual machines are the community’s secret weapon for keeping legacy embroidery software alive. If you’re hitting a wall with Windows 10/11, don’t give up—fire up a VM and let the old code do its thing.

7.2 DIY Hardware Modifications

Not all 820A fixes require a soldering iron or a degree in electrical engineering. Sometimes, a little elbow grease and community wisdom are all you need.

Lubrication Schedules: Regular lubrication is the lifeblood of any embroidery machine. Community-shared guides recommend oiling the rotary hook rail every 3–4 hours of operation, with daily attention to the needle bar drive shaft and presser foot components. Inside the arm and cylinder bed, a weekly check keeps things running smoothly. For the needle bar’s felt packing, a quarterly oiling is suggested. These intervals echo the routines detailed in user manuals and forum posts, ensuring your machine stays silent and smooth.

Needle Bar Alignment: If your 820A’s needle bar isn’t grabbing needles or is misaligned, users have found that realigning the reciprocator (the part that moves the needle bar) is crucial. The flat side of the top nut should be parallel to the machine’s front. Accessing the needle bar may require removing a few hex screws and plates, but once realigned, the machine should return to flawless operation.

Embroidery Hoop Assembly: Setting up the machine stand and aligning magnet-type or set-screw-type hoops is a rite of passage. Community guides walk you through unboxing, assembling the stand, and bolting the machine securely. For hoop alignment, reference lines and careful adjustment ensure even tension and clean embroidery results.

Collaborative Problem-Solving: Forums like T-Shirt Forums are goldmines for troubleshooting. Users share tips for adjusting satin stitch parameters, managing jump lengths, and fine-tuning thread breakage sensor sensitivity. Whether you’re battling a bobbin counter gone wild or optimizing stitch quality, chances are someone’s already blazed the trail.

Key Takeaway: The Toyota 820A community thrives on shared knowledge—step-by-step lubrication routines, alignment hacks, and assembly walkthroughs. If you’re stuck, don’t hesitate to tap into this collective wisdom. There’s a good chance your answer is just a forum post away.

8. Frequently Asked Questions

8.1 Q: What operating systems are compatible with Toyota 820A embroidery software in 2025?

A: Most original Toyota 820A software was designed for Windows 95, 98, or XP. To run these programs on modern systems (Windows 10/11), users often employ virtual machines (VMs) running Windows XP or use compatibility modes. Community reports confirm that tools like Pantograms Design File Manager and Embroidery Fonts Plus can function inside a Windows XP VM, even when the host system is much newer.

8.2 Q: Where can I find authorized repair centers or reliable parts for the 820A?

A: Official support for the 820A is limited, but reputable third-party services like PLRElectronics and DataStitch specialize in repairs and parts exchange. For discontinued components, secondary markets and embroidery forums sometimes offer used options. Always verify compatibility and warranty before purchasing.

8.3 Q: How often should I perform maintenance on my Toyota 820A?

A: Community-shared schedules suggest lubricating the rotary hook rail every 3–4 hours of operation, daily oiling of the needle bar drive shaft, and weekly checks inside the arm and cylinder bed. Quarterly attention to the needle bar’s felt packing is also recommended. Regular maintenance is key to preventing breakdowns and extending machine life.

8.4 Q: Is it possible to upgrade the 820A for modern design transfers?

A: Yes. Many users have successfully implemented USB-to-serial adapters or external USB "Black Box" readers for design transfers. These solutions bypass the need for legacy PCs and make it easier to use DST files from modern computers. Always confirm compatibility with your machine model before upgrading.

8.5 Q: What are the main challenges of keeping a Toyota 820A running today?

A: The biggest hurdles are software compatibility, sourcing replacement parts, and maintaining aging hardware. The community has developed workarounds—like virtual machines for software and DIY repairs for hardware—to address these issues. However, technical proficiency and patience are often required.

9. Conclusion: Future-Proofing Your 820A

As we wrap up this ultimate guide, one thing is clear: the Toyota 820A’s story isn’t over—it’s evolving. By embracing community-driven solutions, leveraging virtual machines for software compatibility, and following tried-and-true DIY maintenance routines, you can keep your 820A running strong well into the future. The collective wisdom of forums, the ingenuity of user hacks, and the availability of modern upgrades like USB transfer devices all combine to give this classic machine a new lease on life.

And when it comes to garment embroidery efficiency, don’t overlook the impact of advanced tools like MaggieFrame magnetic hoops. Their user-friendly design and industrial-grade durability have redefined what’s possible in modern embroidery workflows—helping you save time, protect your fabrics, and maximize your creative output.

So, whether you’re a seasoned technician or a passionate hobbyist, remember: with the right knowledge and a little community spirit, your Toyota 820A can remain a productive, reliable partner for years to come. Here’s to many more stitches—and solutions—ahead!
