1. Introduction: Mastering Brother Embroidery Frames

Brother embroidery frames are more than just accessories—they're the backbone of precision, efficiency, and creative freedom in machine embroidery. Whether you're a hobbyist eager to personalize gifts or a professional running a bustling studio, the right frame can make the difference between frustration and flawless results. This guide unlocks the essentials of Brother's frame systems, from installation tips and selection strategies to maintenance routines and advanced applications. No matter your experience level, you'll discover practical insights tailored to help you achieve professional-grade embroidery outcomes, streamline your workflow, and make the most of every stitch. Ready to elevate your embroidery game? Let’s dive in.

Table of Contents

• 1. Introduction: Mastering Brother Embroidery Frames
• 2. Brother Frame Types and Technical Specifications
• 3. Step-by-Step Frame Installation and Operation
• 4. Optimizing Frame Selection for Specific Applications
• 5. Maintenance and Troubleshooting Protocols
• 6. Purchasing Guide: Cost Analysis and Compatibility
• 7. Conclusion: Maximizing Embroidery Efficiency
• 8. FAQ: Brother Frame Essentials

2. Brother Frame Types and Technical Specifications

Brother’s embroidery frame ecosystem is a marvel of engineering, designed to meet the needs of everyone from beginners to high-volume professionals. Choosing the right frame isn’t just about size—it’s about compatibility, application, and optimizing every project for quality and efficiency. Let’s break down the major categories, their technical specs, and what makes each unique.

2.1 Standard Frame Categories: Sizes and Compatibility Matrix

Brother’s standard frames come in a range of sizes, each tailored for specific project needs and machine models. Here’s how the main categories stack up:

Each frame features an alignment mark system—numbered marks help you quickly identify the frame size and ensure correct placement. For example, mark 4 indicates small frames, progressing up to mark 1 for extra-large.

Compatibility is key. Brother’s machines fall into several families (PR, VR, NV, etc.), each with its own bracket and frame holder requirements. For instance, PR series multi-needle machines use Frame Holder B, while VR machines require Frame Holder b. Always consult the compatibility matrix for your model—using the wrong bracket can lead to registration errors or even equipment damage.

Frame shapes and configurations also matter:

• Clamp Frames: Ideal for tricky fabrics or areas, offering extra tension control.
• Round Frames: Perfect for circular designs and even tension.
• Sash/Border Frames: Designed for continuous patterns and trims.

Pro tip: Smaller frames typically deliver higher registration accuracy due to reduced mechanical flex, while larger frames boost throughput for batch production.

2.2 Specialty Frames: Caps, Cylinders and Border Applications

When your embroidery ambitions go beyond flat surfaces, Brother’s specialty frames step in.

Cap Frames (e.g., PRPCFH4, PRCF3, PRCF5):

Engineered for the unique curves of hats and caps, these frames use curved geometries and secure mounting arms to keep even structured caps stable. Installation involves a three-part system: the frame, a driver, and a mounting jig for stability. Flat-brim cap frames (like PRCFH5) offer enhanced alignment for modern hat styles, as seen in YouTube demos—just slide in your stabilizer, align the center, and lock everything in place for consistent results.

Cylinder Frames (e.g., 200×200 mm):

Perfect for sleeves, pant legs, wine bags, and any tubular item. The cylinder frame system includes a mounting jig, driver, and foot spacer. The process: remove the standard frame mount, attach the cylinder driver, and use the jig to load your fabric and stabilizer. Bulldog clips help keep fabric taut, while careful alignment prevents bunching or needle collisions. Note: Cylinder frames often run at reduced machine speeds to ensure safety and accuracy.

Continuous Border Frames (e.g., SABF6200D1C, 12"×4"):

These enable seamless, repeated embroidery for borders and trims—think elegant table linens or garment edges. The elongated design and secure mounting allow for precise, repeatable patterns.

Application-specific engineering is the name of the game here. Whether you’re tackling 3D surfaces or hard-to-reach areas, these specialty frames expand your creative possibilities without sacrificing control.

2.3 Magnetic Frame Technology: Performance Advantages

Magnetic frames are a game-changer—think of them as the “smartphones” of the hooping world. Brother’s magnetic frames, and compatible third-party options like MaggieFrame, bring a host of benefits:

Mechanical Innovation:

Magnetic frames use a 7-hole mounting system for secure, flexible attachment. Installation is intuitive: align the rounded rectangle hole (#6) with the rear mounting pin, then use thumb screws for a rock-solid fit.

Speed and Efficiency:

Magnetic frames slash setup times, making them ideal for high-volume or repetitive projects. They excel at hooping tricky items—towels, plush fabrics, even ready-made bags—without the strain of manual screw adjustments.

MaggieFrame Integration:

As a leading third-party solution, MaggieFrame offers magnetic hoops in sizes from 100×100 mm up to 430×390 mm, compatible with most Brother models. Users report a 12:1 return on investment over five years, thanks to labor savings and reduced error rates. Setup is up to 73% faster compared to traditional screw hoops.

Gentle on Fabrics:

Magnets apply even pressure, reducing hoop burn and fabric distortion. The textured surface ensures drum-tight tension, even on delicate or layered materials.

Comparison with Traditional Hoops:

While screw-based frames require constant adjustments and can struggle with thick or uneven fabrics, magnetic frames adapt automatically—just lay your fabric and stabilizer, snap on the magnets, and you’re ready to stitch.

In summary:

Magnetic frame technology—especially with options like MaggieFrame—delivers faster setups, more consistent results, and a gentler touch on your projects. For anyone looking to boost productivity and reduce frustration, they’re a must-have addition to the embroidery toolkit.

3. Step-by-Step Frame Installation and Operation

Installing and operating Brother embroidery frames is a process where precision meets practicality. Whether you’re mounting a standard hoop, a specialty cylinder frame, or a cutting-edge magnetic system, following the right steps ensures your embroidery runs smoothly from start to finish.

3.1 Precision Mounting Procedures Across Frame Types

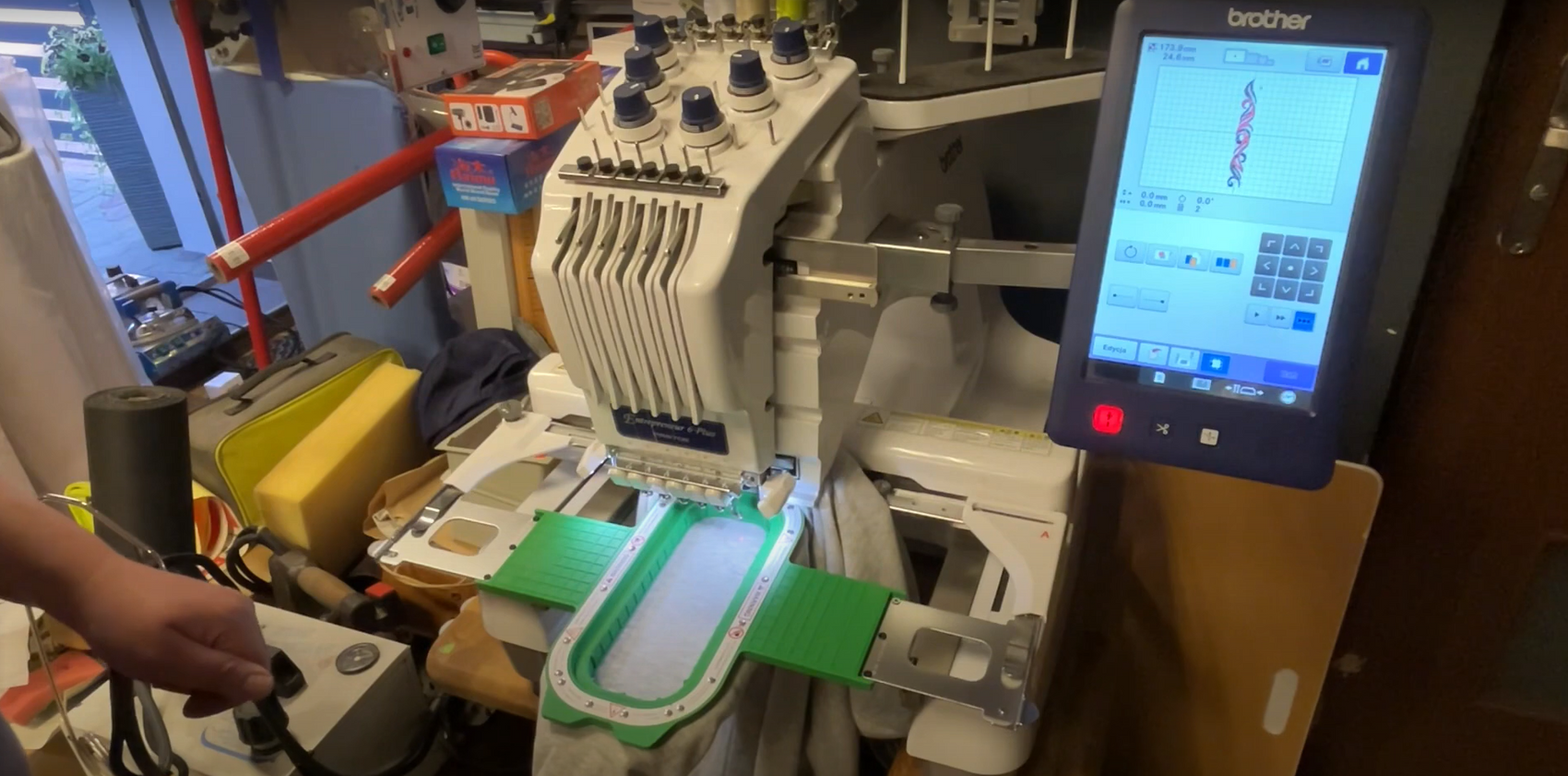

Standard Frames: Start by loosening the two thumb screws on the frame holder. Slide the left arm to align the right-side screw with the correct frame size marking. Firmly tighten the screws using the provided disc-shaped screwdriver—this prevents detection errors and misalignment. Always ensure the inner frame sits on top, with both mounts clipped securely. Insert the frame until you hear a click, confirming proper engagement.

Cylinder Frames (as seen in PR680w YouTube demo):

• Remove the existing frame mount by unscrewing the two small thumb screws.
• Attach the cylinder driver, securing it with the same screws.
• Power on the machine and let it auto-center the mount.
• Use the mounting jig to load your stabilizer and fabric, aligning with the frame’s notches and securing with Bulldog clips.
• Insert the foot spacer into the machine bed for safe operation.
• Carefully transfer the loaded frame from the jig to the machine, ensuring nothing snags or bunches.

Magnetic Frames:

• Attach the wide table if required.
• Remove the standard driver (usually marked “A”) and install the magnetic frame driver (“F”).
• Align the rounded rectangle hole (#6) with the rear pin, and hole #3 with the forward pin.
• Secure with thumb screws in holes #7 and #4.
• Slide the frame in from the side, ensuring the sensor detects the correct frame size.
• Use the silver tabs to remove or adjust magnets as needed.

Pro tips:

• Always check for proper frame detection on your machine’s display before starting.
• Support bulky or heavy items with a tubular frame table to prevent droop and ensure smooth stitching.

3.2 Advanced Stabilization Techniques for Flawless Results

Perfect embroidery starts with flawless stabilization. Here’s how to get it right:

Drum-Tight Tensioning: Aim for a “drum-tight” feel—fabric should be taut but not overstretched. This prevents puckering and maintains design accuracy. Gradually tighten the frame, distributing tension evenly around the perimeter.

Stabilizer Selection:

• Cutaway stabilizer: Best for stretchy or knit fabrics; provides long-term support.
• Tearaway stabilizer: Ideal for stable, woven fabrics; easy removal after stitching.

For multi-layer projects, as demonstrated in the SAMF180 magnetic frame YouTube video, layer your stabilizer beneath the fabric, then use the frame’s reference marks for precise placement. Magnetic frames make this process effortless—just snap the magnets into place, starting from the center and working outward.

Troubleshooting Common Issues:

• Puckering: Usually caused by uneven tension or insufficient stabilizer. Re-hoop and adjust as needed.
• Hoop Burn: Minimized with magnetic frames, but if it occurs, gently apply moisture to the affected area to help the fabric recover.

Final checks:

• Confirm the presser foot is lowered and the needle plate is clear before starting.
• Monitor for thread tension issues or fabric movement during stitching—quick corrections can save your project.

Ready to take your embroidery to the next level? Mastering Brother’s frame systems—standard, specialty, and magnetic—will empower you to tackle any project with confidence, speed, and professional results.

4. Optimizing Frame Selection for Specific Applications

Selecting the right Brother embroidery frame can feel a bit like choosing the perfect tool from a craftsman’s kit—each has its moment to shine, and the results hinge on making the best match for your project. Whether you’re working with delicate sleeves, structured caps, or challenging fabrics, understanding the nuances of frame design and technology is the key to flawless results and efficient workflows.

4.1 Garment Embroidery: Sleeves, Collars and Delicate Fabrics

When it comes to garment embroidery, not all frames are created equal—especially when you’re navigating the tricky terrain of sleeves, collars, or stretch fabrics. Brother’s specialized sleeve frames, such as the 70 x 200mm wing-design, are engineered to conquer restricted spaces where standard hoops simply can’t reach. The unique wing configuration, with its corner-positioned adjustment screw, delivers superior fabric tension and security, making it a go-to choice for jacket sleeves, pant legs, and even baby rompers.

But what about those notoriously slippery or stretchy materials—think silk, knits, or athletic wear? Here’s where magnetic frame technology, like the MaggieFrame, becomes a true game-changer. The MaggieFrame’s powerful magnetic pressure control adapts automatically to fabric thickness, delivering even tension without the risk of overstretching or distortion. Its textured surface keeps everything drum-tight, while the magnetic system eliminates hoop burn—a common nemesis when working with delicate or high-end fabrics.

Let’s talk performance: On tough materials like denim or silk, MaggieFrame’s even pressure and quick setup can dramatically reduce fabric waste and misalignment compared to traditional hoops. No more wrestling with screws or worrying about hoop marks marring your finished piece. The result? Crisp, professional embroidery, every time—whether you’re tackling a single heirloom shirt or a batch of custom sleeves for a client.

In short, for garment embroidery that demands precision in tight or delicate areas, the combination of wing-design sleeve frames and magnetic technology like MaggieFrame offers unmatched control, speed, and fabric protection.

4.2 Headwear and Industrial Applications

Embroidering headwear is a world apart from flat garments—structured caps, unstructured hats, and industrial textiles each bring their own set of challenges. Brother’s cap frames, such as the PRPCFH4 wide-cap frame, are purpose-built to handle these demands. The PRPCFH4 excels in throughput, allowing you to embroider multiple hats efficiently, thanks to its robust mounting hardware and optimized dimensions (typically 5" x 2.5").

When it comes to structured versus unstructured caps, structured hats provide a firmer base, resulting in easier hooping and more stable embroidery. Users consistently report better results and less fabric shifting with structured caps, while unstructured options may require extra care in stabilizer selection and alignment.

For flat-brim styles, the PRCFH5 frame offers enhanced stability and alignment. According to YouTube demonstrations, the installation process involves sliding a cutaway stabilizer under the holder, positioning the cap with the sweatband lifted, and aligning the center seam for perfect placement. The frame’s grooves and locking mechanism ensure everything stays put throughout the embroidery process.

A quick note: Magnetic frames, while stellar for garments, are not recommended for cap applications—so stick with dedicated cap frames for headwear projects.

In industrial settings, specialty frames like cylinder or flat frames tackle bulky materials and continuous border designs. Cylinder frames, for example, are ideal for sleeves, pant legs, and tubular items, while border frames streamline repetitive patterns on linens or garment edges. Each frame type brings application-specific engineering to the table, optimizing your workflow and expanding your creative possibilities.

5. Maintenance and Troubleshooting Protocols

A well-maintained embroidery frame isn’t just a tool—it’s your silent partner in every successful project. Regular care and smart troubleshooting keep your Brother frames performing at their best, whether you’re running a home studio or a high-volume shop.

5.1 Preventive Care: Frame Longevity Best Practices

Let’s face it: even the highest-quality frames need a little TLC to stay in top shape. For magnetic frames, routine magnet strength testing is essential. If you notice fabric slipping or tension weakening, it could signal magnet degradation—time to consider a replacement. A healthy magnetic engagement should always produce a satisfying “click” when secured.

Environmental conditions matter, too. Store your frames in a climate-controlled environment, avoiding high humidity or extreme temperature swings that can corrode metal parts or weaken magnetic strength. For commercial operations, weekly magnet assessments and monthly tension calibrations are recommended. Aim for that classic “drum-tight” sound when you tap the hooped fabric—a sign your tension is just right.

Cleaning is another cornerstone of frame longevity. Regularly wipe down mounting points and screw mechanisms to prevent dust buildup and ensure smooth operation. For magnetic frames, keep the contact surfaces free of debris to maintain optimal grip.

Adopting a standardized hooping technique—loosening adjustment screws, aligning fabric and stabilizer, and tightening evenly—will further extend your frame’s life and maintain consistent results.

5.2 Solving Critical Issues: Slippage and Misalignment

Even seasoned embroiderers encounter the occasional hiccup. Fabric slippage is one of the most common—and frustrating—issues, but understanding the root causes can help you troubleshoot like a pro.

There are four primary culprits behind slippage:

1. Misaligned fabric during hooping: Always double-check alignment marks and use reference lines on your frame for accuracy.
2. Inadequate stabilizer selection: Choose cut-away stabilizers for knits, water-soluble for silks, and high-grip options for slippery materials. Spray adhesives can add extra hold when needed.
3. Incorrect machine settings: Ensure your machine recognizes the correct hoop type—select the “M” designation for magnetic hoops to avoid misalignment errors.
4. Weakened magnets or loose screws: Regularly inspect your frame’s hardware and replace any compromised components.

For persistent slippage, re-hoop with the right stabilizer and consider using a hooping station for large or tricky items. Always verify fabric alignment before securing the frame.

Misalignment issues often stem from sensor calibration problems, especially on advanced models like the PR1055X. Make sure thumb screws are tightened and the embroidery arm adapters are correctly positioned for your hoop size. If your machine displays errors like “change to a larger embroidery frame,” check for proper sensor contact and frame detection.

Hoop burn? Minimize it by using magnetic frames for sensitive fabrics, and if it does occur, gently apply moisture to the affected area to help the fabric recover.

For advanced troubleshooting, keep your firmware updated, clean your bobbin case and needle plate regularly, and document any recurring issues or successful fixes. A little preventive care goes a long way toward keeping your embroidery projects—and your sanity—intact.

6. Purchasing Guide: Cost Analysis and Compatibility

Choosing the right Brother embroidery frame is about more than just price tags—it’s an investment in your workflow, your creativity, and your long-term success. Here’s how to navigate the maze of options with confidence.

6.1 Budgeting and Value Comparison Across Frame Types

Frame pricing can vary widely based on size, technology, and manufacturer. Standard Brother frames are generally more affordable, while magnetic frames command a premium—Brother’s official 4x4-inch magnetic hoop, for example, retails at a higher price point, whereas third-party options like MaggieFrame offer similar functionality at a significant cost reduction.

But don’t judge by sticker price alone. Magnetic frames, such as MaggieFrame, deliver substantial long-term savings by slashing setup times and reducing fabric waste. For high-volume production shops, upgrading to larger frame sizes or magnetic systems can yield a measurable return on investment. Consider lifecycle costs, including labor savings and reduced defect rates, when making your decision.

Here’s a quick comparison:

Upgrading to the largest frame size your machine supports maximizes future project flexibility, even if your current needs are modest.

6.2 Compatibility Verification and Future-Proofing

Compatibility is the linchpin of smart frame selection. Brother’s machine lineup spans entry-level to commercial-grade, each supporting different maximum frame sizes and bracket systems.

• Entry-level models (e.g., M370, SE600): Max 4" x 4" frames.
• Mid-range models (e.g., F540E, PE800): Up to 5" x 7".
• Professional/Commercial (e.g., PR1055X, PR1X): Up to 8" x 12" or larger.

Always confirm your machine’s bracket requirements—models like the NV880E or PR1X may need specific adapters for certain frames.

When evaluating third-party solutions, MaggieFrame stands out with its high-grade PPSU material, offering superior strength and durability. Its wide compatibility covers hundreds of machine brands, and the thoughtful design (including reference lines and textured surfaces) streamlines both setup and operation.

In short, future-proof your embroidery toolkit by investing in frames that match your current machine—and leave room for growth. Consider not just today’s projects, but tomorrow’s ambitions.

Ready to make your next embroidery project smoother, faster, and more professional? With the right Brother frame—chosen for your application, maintained with care, and matched to your machine—you’re set to unlock a world of creative possibilities.

7. Conclusion: Maximizing Embroidery Efficiency

Selecting the right Brother embroidery frame is more than a technical decision—it’s the linchpin for achieving professional results, consistent quality, and a streamlined workflow. Throughout this guide, we’ve explored the nuances of frame selection, from standard and specialty options to advanced magnetic technologies. Proper installation and diligent maintenance are essential for long-term reliability, while thoughtful troubleshooting keeps projects on track. By aligning your frame choice with project scale and material type, you’ll unlock smoother operations and higher productivity. Whether you’re a hobbyist or a high-volume professional, integrating these best practices ensures your embroidery process is efficient, precise, and ready to meet any creative challenge.

8. FAQ: Brother Frame Essentials

8.1 Q: How do I resolve an E6 error on my Brother embroidery machine?

A: An E6 error typically indicates a thread or motor jam. First, turn off your machine and remove the frame. Check for any tangled thread around the needle, bobbin area, or frame holder. Clear any obstructions, reattach the frame securely, and restart the machine. If the error persists, consult your machine’s manual for specific troubleshooting steps.

8.2 Q: What stabilizer should I use for different fabrics?

A: Stabilizer choice depends on your fabric type:

• Cutaway stabilizer: Best for stretchy or knit fabrics, providing long-term support.
• Tearaway stabilizer: Ideal for stable, woven fabrics and easy removal after stitching.
• Water-soluble stabilizer: Suitable for delicate or sheer materials.

Always match the stabilizer to your fabric and design complexity for optimal results.

8.3 Q: Are all Brother frames compatible with every Brother embroidery machine?

A: No, compatibility varies by machine model and frame type. For example, entry-level models like the SE600 or M370 support up to 4"×4" frames, while commercial models like the PR1055X accommodate larger frames. Always check your machine’s compatibility chart and bracket requirements before purchasing a new frame.

8.4 Q: How do I prevent fabric slippage during embroidery?

A: To avoid slippage, ensure your fabric is correctly aligned with the frame’s reference marks and use the appropriate stabilizer. For tricky materials, consider using spray adhesives or hooping stations for added control. Regularly inspect your frame for wear or weakened tension.

8.5 Q: What should I do if my machine does not detect the installed frame?

A: If your Brother machine fails to detect the frame, double-check that the frame is properly mounted and the correct driver is installed. Ensure all thumb screws are tightened and that the sensor contacts are clean. Restart the machine and reselect the frame size from the menu if needed.

8.6 Q: Can I use specialty frames like cap or cylinder frames on all Brother models?

A: Specialty frames, such as cap or cylinder frames, are typically designed for multi-needle or commercial Brother machines (e.g., PR series). Always verify your model’s compatibility and follow the manufacturer’s installation guidelines for these advanced frame types.

8.7 Q: How do I minimize hoop burn on delicate fabrics?

A: To reduce hoop burn, use frames that distribute pressure evenly and avoid overtightening. For sensitive materials, consider placing a layer of lightweight fabric or stabilizer between the frame and your project. Gently apply moisture to the affected area after embroidery to help the fabric recover.

Have more questions? Refer to your Brother machine’s manual or reach out to your local dealer for expert support on frame selection, installation, and troubleshooting. Happy stitching!
