Brother Bobbin Case Replacement: Step-by-Step Guide & Expert Solutions

1. Introduction: Mastering Bobbin Case Maintenance for Flawless Stitching

Perfectly running Brother sewing and embroidery machines start with a well-maintained bobbin case. This humble component is the heart of smooth, even stitches—yet it’s often overlooked until trouble strikes. Whether you’re a seasoned studio owner, a passionate hobbyist, or just starting your embroidery journey, understanding bobbin case care is your secret weapon for frustration-free sewing. In this guide, we’ll unravel the essentials: how to identify the right bobbin case for your Brother machine, step-by-step replacement techniques, troubleshooting persistent issues, and expert maintenance routines. Ready to transform tangled threads and tension headaches into flawless, professional results? Let’s dive in.

Table of Contents

• 1. Introduction: Mastering Bobbin Case Maintenance for Flawless Stitching
• 2. Step-by-Step Bobbin Case Replacement Procedure
• 3. Identifying Compatible Bobbin Cases for Your Brother Machine
• 4. Troubleshooting Post-Replacement Issues
• 5. Prolonging Bobbin Case Lifespan: Maintenance Protocols
• 6. Sourcing and Cost Considerations
• 7. Advanced Techniques: Specialized Bobbin Cases
• 8. Frequently Asked Questions (FAQ)
• 9. Conclusion: Precision as the Foundation of Professional Results

2. Step-by-Step Bobbin Case Replacement Procedure

Replacing a Brother bobbin case might seem daunting, but with the right approach, it’s a straightforward process that can breathe new life into your machine. Follow these detailed steps to ensure a smooth swap and optimal performance.

2.1 Preparation and Safety Precautions

Before you reach for that shiny new bobbin case, set yourself up for success:

• Power Down & Unplug: Always turn off and unplug your machine. Safety first!
• Raise the Needle & Presser Foot: Use the hand wheel to bring both to their highest positions. This prevents accidental needle strikes and gives you more room to work.
• Workspace Setup: Choose a clean, well-lit area. Have a soft cloth handy to protect your machine and catch any small screws.
• Lint Removal: Use a soft brush (many prefer one softer than the factory-supplied version) or a vacuum to gently clear lint and dust from the bobbin area. Avoid compressed air, which can force debris deeper into your machine.
• Organize Tools: Keep a small screwdriver nearby for removing the needle plate if needed. Remove the presser foot for easier access.
• Mind the Timing Mechanism: Avoid forcing any parts—gentle handling is key to protecting your machine’s delicate timing system.

Taking a few extra minutes for preparation can save you hours of troubleshooting down the line.

2.2 Removal and Installation Techniques

Let’s walk through the actual swap—step by step, just like a pro:

Removing the Old Bobbin Case

1. Access the Bobbin Area: Slide the needle plate cover toward you and lift it off. If your model requires it, remove the needle plate by unscrewing the two securing screws.
2. Remove the Bobbin: Gently lift out the bobbin itself to prevent tangles.
3. Extract the Bobbin Case: Carefully lift the bobbin case straight up and out. If you feel resistance, check for misalignment—never force it.

Inspect for Damage: Look for punctures, worn guides, or rough spots. These are telltale signs your case needed replacing.

Installing the New Bobbin Case

1. Align the Markers: Most Brother machines use a triangle (on the bobbin case) and a white dot (on the machine housing) as alignment guides. Match these up precisely for proper seating.
2. Seat the Case: Place the rear of the bobbin case in first, slightly tilted, then lower it into position. It should sit flush in the hook assembly with a slight, characteristic wiggle—enough play to indicate correct placement, but not so much that it pops out.
   • If it won’t seat, rotate the hand wheel to adjust the internal mechanism until the case fits easily.
3. Reassemble: Replace the needle plate and cover, ensuring all tabs and notches are aligned. Tighten screws gently but firmly.

Threading and Final Steps

• Insert the bobbin with the thread unwinding counterclockwise (like the letter “P”).
• Guide the thread under the plastic guide and through the tension groove.
• Many modern Brother machines feature an auto thread cutter—pull the thread until you feel it trim.

Pro Tip: If your machine displays a warning about the needle plate cover, double-check that it’s properly seated before proceeding.

2.3 Post-Installation Verification & Testing

Don’t skip this final checklist—think of it as your quality control for flawless stitching:

• Hand Wheel Test: Slowly rotate the hand wheel. The bobbin case should move smoothly, with no binding or popping out.
• Alignment Check: Confirm that the triangle and white dot remain perfectly aligned.
• Tension Calibration: Test stitch on scrap fabric similar to your project. Look for balanced tension—no loops or bird’s nests on either side.
• Stitch Quality: Inspect both sides of your test fabric. You should see clean, even stitches with no skipped threads or tangles.
• Rattle Test: A slight rattle is normal and indicates the case is seated correctly.

If you notice uneven stitches or persistent issues, revisit your installation steps or consult your machine’s manual. Sometimes, a tiny adjustment makes all the difference.

3. Identifying Compatible Bobbin Cases for Your Brother Machine

Choosing the right bobbin case isn’t just about grabbing the first one you see online—Brother embroidery machine models are famously diverse, and the wrong case can spell disaster for your stitches. Here’s how to find your perfect match.

3.1 Model-Specific Compatibility Charts

Brother machines use a variety of bobbin case models, each with its own part number. The best way to ensure compatibility is by cross-referencing your machine’s model with the correct bobbin case code.

Most Brother domestic and semi-professional machines use Class 15 bobbins (part number SA156), which are slightly taller and hold more thread than Class L bobbins. Always check your machine’s manual or the manufacturer’s website for the exact code—when in doubt, this step is your safety net.

3.2 Adapter Solutions for Specialty Bobbins

Need to use pre-wound Class L bobbins in a machine designed for Class 15? Brother has you covered with the XD0835051 bobbin guide adapter. This clever accessory allows select high-end models—like the Luminaire XP1/XP2, Dream Machine XV8500D/XV8550D, and Stellaire XJ1/XE1—to accept Class L bobbins.

• Installation Tips:
• Insert the adapter into the bobbin case area, ensuring it sits flush.
• The adapter features a specialized coating and height adjustment for smooth operation.
• Remove any cardboard covers from pre-wound bobbins before use.

This flexibility is a game-changer for professionals who rely on pre-wound bobbins for specialty threads or colors. Just remember: always double-check compatibility before purchasing adapters or specialty bobbins.

Ready to take the guesswork out of bobbin case replacement? With the right know-how, your Brother machine will reward you with smooth, professional stitching—every time.

4. Troubleshooting Post-Replacement Issues

Even after a careful bobbin case replacement on your Brother sewing machine embroidery, persistent issues like tension headaches, thread jams, or uneven stitches can creep in. Don’t let frustration take the driver’s seat—systematic troubleshooting and a keen eye for detail are your best allies. Let’s break down the most common post-replacement problems and show you how to resolve them with confidence.

4.1 Diagnosing Tension and Thread Jam Problems

When your Brother machine starts acting up after a bobbin case swap—think looping threads, bird’s nests, or jammed stitches—it’s time for a methodical diagnosis. Here’s your step-by-step “flowchart” for getting back on track:

1. Verify Installation and Alignment

• Alignment Markers: Always check that the triangle (or arrow) on your bobbin case lines up precisely with the white dot or circle inside the machine. This alignment is non-negotiable—misalignment is a top cause of jams and skipped stitches.
• Seating: The case should sit flush in the hook assembly with a slight, characteristic wiggle. Too much play or popping out? Remove and reseat.

2. Threading Direction & Sequence

• Bobbin Thread Direction: The bobbin must unwind counterclockwise (like the letter “P”) when you pull the thread tail. Thread should pass under the plastic guide and into the groove before reaching the cutter.
• Upper Thread Check: Rethread the upper thread completely. Use contrasting colors for top and bobbin threads to pinpoint where issues arise.

3. Tension Calibration

• Start with Upper Thread Tension: Before touching the bobbin case, adjust your upper tension dial. Test stitch on scrap fabric, and look for balanced tension—no loops or knots on either side.
• Bobbin Tension Adjustment: If the upper tension is dialed in but issues persist, adjust the bobbin case screw in tiny increments—imagine the face of a clock, moving the screw by 15 minutes at a time. Test after each tweak.
• Digital Models: For Brother machines with digital tension (like the V5 series), reset to zero for embroidery, then fine-tune as needed.

4. Environmental and Operational Factors

• Lint and Debris: Lint in the bobbin area or upper tension disks can sabotage tension. Clean thoroughly before troubleshooting further.
• Fabric and Thread: Use appropriate thread weight and fabric for your project. Heavier or specialty threads may require additional tension tweaks.

5. Mechanical Timing

• Needle & Shuttle Timing: If you’re still getting skipped stitches or jams, the needle and shuttle may be out of sync. As shown in the YouTube “Crab Adjustment” video, the needle eye should align just above the shuttle tip at its lowest point. If not, professional timing adjustment may be needed.

Quick Reference Table: Common Symptoms & Solutions

Pro Tip: Always test with scrap fabric before returning to your main project. A few minutes of careful calibration can save hours of frustration.

4.2 When to Replace vs. Repair: Damage Assessment Guide

How do you know if your bobbin case needs a full replacement or just a little TLC? Here’s how to make the call—no guesswork required.

1. Visual Inspection:

• Punctures: If you spot three or more puncture marks on the bobbin case, it’s time to retire it. These wounds compromise structural integrity and lead to ongoing problems.
• Worn Thread Guides: Check for grooves, burrs, or rough spots where the thread passes. These can snag thread and cause tension issues.
• Cracks or Warping: Any visible cracks or deformations mean replacement is necessary.

2. Fixable Issues:

• Lint Buildup: Lint and dust are the silent killers of smooth stitching. A thorough cleaning with a soft brush or paper strip (never compressed air) can work wonders.
• Misalignment: If the case isn’t seated perfectly, remove and reinstall, matching all alignment markers. Many “broken” cases just need a reset.
• Threading Errors: Double-check threading direction and sequence before assuming hardware failure.

3. Functional Testing:

• Hand Wheel Rotation: After reinstalling, turn the hand wheel slowly. The bobbin case should rotate smoothly with no binding or popping out.
• Tension Adjustment Limit: If the tension screw is maxed out (turned as far as it will go) and problems persist, the case has reached the end of its adjustable life.

4. When to Replace:

• Persistent Issues: If you’ve cleaned, rethreaded, realigned, and adjusted tension—but issues remain—it’s time for a new bobbin case.
• Specialty Cases: Decorative (gray) bobbin cases for heavy threads or ribbons should not be used for standard sewing. Swap back to the standard (black/green) case for regular work.

Magnification Reference: Use a magnifying glass or your phone’s camera zoom to inspect for micro-damage. Even tiny burrs can cause big headaches.

Bottom Line: Don’t rush to replace at the first sign of trouble. Systematic cleaning, rethreading, and careful inspection often resolve most issues. But when physical damage or adjustment limits are reached, replacement is the only path to reliable stitching.

5. Prolonging Bobbin Case Lifespan: Maintenance Protocols

A little preventive care goes a long way—especially when it comes to your Brother bobbin case. Routine maintenance not only extends the life of this critical component but also keeps your stitches looking sharp and professional. Here’s how to keep your bobbin case (and your sanity) in top shape.

5.1 Daily Cleaning Procedures for Optimal Performance

1. Clean Every Time You Change the Bobbin

• Why: Thread wax and lint love to accumulate around the tension spring and inside the bobbin case, leading to tension problems and jams.
• How:
• Use a soft brush (many users prefer a gentler brush than the factory-supplied one) to sweep away lint and dust from the bobbin area.
• For stubborn debris near the tension spring, slide a strip of business card–thickness paper under the spring and gently pull it through. This removes buildup without damaging the spring.
• Wipe the bobbin case with a lint-free cloth.
• Never Use Compressed Air: It can blow debris deeper into your machine and damage sensitive sensors.

2. Deep Cleaning for Heavy Users

• Embroidery machines generate more lint due to dense stitching. If you embroider daily, consider a weekly deep clean:
• Remove the hook ring and hook assembly (if accessible) for thorough lint removal.
• Use a vacuum or a photography brush to clean hard-to-reach areas.

3. Safety First

• Always turn off and unplug your machine before cleaning.
• Avoid bending the tension spring or applying excessive force.

5.2 Handling and Storage Best Practices

1. Handle with Care

• Avoid dropping the bobbin case—impacts can cause invisible cracks or alignment issues.
• When removing or installing, use gentle, deliberate motions. Never force the case into place.

2. Dedicated Storage

• Store spare bobbin cases in a padded container or the original packaging to prevent knocks and dust accumulation.
• Keep bobbins and cases separate for different thread types (e.g., standard vs. decorative) to avoid mix-ups.

3. Environmental Control

• Operate your machine in a clean, dust-free environment whenever possible.
• If you work with lint-heavy fabrics (like fleece or batting), increase your cleaning frequency.

5.3 Long-Term Care for High-Volume Embroidery

For professional studios or anyone running their Brother machine non-stop, advanced maintenance pays dividends.

1. Scheduled Maintenance

• Lubrication: Apply a single drop of sewing machine oil to moving parts as needed—wipe away excess with a cotton swab to avoid attracting lint.
• Professional Servicing: Take your machine to an authorized dealer for a full service at least once a year, or more often if you notice persistent issues.

2. Preventive Inspection

• Inspect the bobbin case and hook area every 3–6 months for signs of wear, punctures, or misalignment.
• Replace cases at the first sign of irreparable damage to prevent costly downtime.

3. Workflow Optimization

• For garment embroidery, pair proper bobbin care with a high-quality magnetic embroidery hoop—like MaggieFrame—to ensure even fabric tension and minimize shifting. Consistent hooping reduces stress on the bobbin case and helps maintain perfect stitch quality, especially in high-volume production environments.

6. Sourcing and Cost Considerations

When it’s time to replace your Brother bobbin case, finding the best brother embroidery machine deals can save money, though the options—and price tags—can be dizzying. Should you go genuine or third-party? Where can you buy with confidence? Let’s clear the confusion so you can make a smart, cost-effective choice.

1. Genuine vs. Third-Party Bobbin Cases

• Genuine Brother Parts:
• Typically priced between $14.99 and $45, depending on model and retailer.
• Offer guaranteed compatibility, factory-set tension, and full warranty support.
• Best sourced from authorized Brother dealers or specialty sewing retailers.

• Third-Party Alternatives:
• Prices range from as low as $0.78 for basic models to $64.99 for premium or specialty variants.
• Widely available on platforms like Amazon, Walmart, and Etsy.
• Quality and compatibility can vary—always verify part numbers and check reviews.

2. Where to Buy

• Authorized Dealers:
• Highest reliability and access to expert advice.
• Many offer free shipping on orders over $49 and financing options.
• Examples: Ken’s Sewing Center, Beehive Quilt Shop, SewingMachinesPlus.com.

• Online Retailers:
• Amazon and eBay offer convenience and competitive pricing, but require careful compatibility checks.
• Etsy often provides detailed compatibility lists for each part.

3. Key Sourcing Tips

• Verify Compatibility:
• Double-check your machine’s model number and required bobbin case part number before purchasing.
• The most common replacement is part number XC3152221, which fits many CE, CS, SQ, XR, and NV series machines.

• Warranty and Support:
• Genuine parts from authorized dealers come with manufacturer support and warranty—an advantage for long-term peace of mind.

• Local vs. Online:
• Use Brother’s dealer locator to find nearby authorized retailers if you prefer in-person support or need urgent assistance.
• International buyers should check shipping restrictions and local availability.

4. Price Range Overview

Bottom Line:

While third-party options may tempt with lower prices, genuine Brother bobbin cases deliver consistent quality, expert support, and warranty protection—often justifying the modest premium for anyone serious about their stitching.

Ready to troubleshoot, maintain, and source your Brother bobbin case like a pro? With these expert strategies, you’ll keep your stitches smooth, your machine happy, and your creative flow uninterrupted.

7. Advanced Techniques: Specialized Bobbin Cases

When you’re ready to push your Brother embroidery machine beyond everyday projects, specialized bobbin cases open up a world of creative possibilities. Whether you’re exploring bold 3D textures or striving for flawless stitch consistency at high speeds, these advanced tools—and the right workflow accessories—can make all the difference.

7.1 Using Gray Bobbin Cases for Decorative Work

If you’ve ever wanted to experiment with chunky 30-weight threads, ribbons, or even specialty fibers for dramatic 3D embroidery, the standard bobbin case just won’t cut it. Enter the gray bobbin case—a purpose-built accessory for decorative and dimensional work.

Why Use a Gray Bobbin Case?

Gray bobbin cases are engineered to handle heavier threads and ribbons that would otherwise jam or throw off tension in a standard case. They’re a must-have for techniques like bobbin work, where thick or specialty threads are loaded into the bobbin and stitched from the underside to create raised, textured designs.

Guidelines for Success:

• Separate Storage: Always store your gray bobbin case separately from your standard (black or green screw) cases. Mixing them up can lead to tension nightmares—especially if you forget which case is set for which thread type.
• Thread Selection: Use the gray case specifically for 30-weight threads, metallics, or ribbons. For regular 50- or 60-weight threads, revert to your standard bobbin case.
• Installation: Insert the gray case just like any other—align the triangle and white dot markers, seat it flush, and check for the characteristic slight wiggle.
• Tension Adjustments: Decorative threads often require looser tension. Adjust the bobbin screw in tiny increments (think “15 minutes on a clock” per tweak) and test on scrap fabric until you achieve the desired effect.
• Project Planning: Because bobbin work stitches from the underside, always work on a stabilizer and flip your project to reveal the magic.

Pro Tip:

Never use your decorative-thread bobbin case for standard sewing. The settings and wear patterns are different, and cross-use can cause skipped stitches or thread breaks.

7.2 Optimizing Embroidery Workflow with Complementary Tools

High-speed embroidery is exhilarating—until you notice your fabric has shifted mid-design, throwing off your meticulously planned stitches. Consistency in fabric tension isn’t just about the right bobbin case; it’s about the entire hooping system.

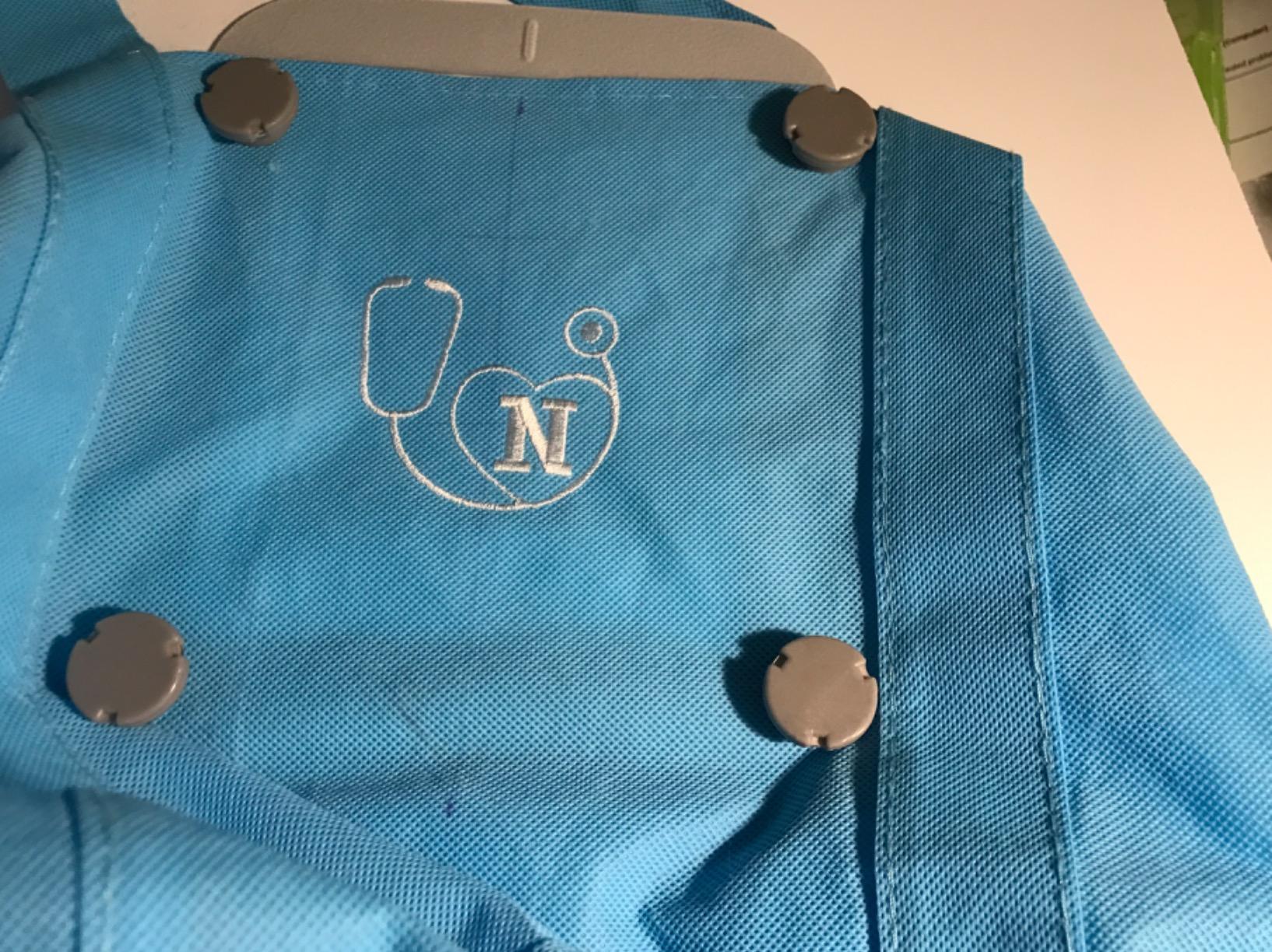

Enter Magnetic Embroidery Hoops: The MaggieFrame Advantage

For garment embroidery, pairing your well-maintained bobbin case with a high-quality magnetic hoop for Brother—like MaggieFrame—can be a game changer. Here’s why:

• Superior Fabric Stability: MaggieFrame’s powerful magnetic clamping system keeps fabric taut and evenly tensioned throughout high-speed runs, dramatically reducing the risk of fabric shift that can sabotage stitch quality.
• Consistent Bobbin Performance: When fabric stays put, your bobbin case maintains optimal thread delivery, which means fewer tension hiccups and cleaner, more professional results.
• Time-Saving Efficiency: MaggieFrame hoops are quick to install and adjust, letting you spend more time creating and less time fussing with setup.
• Reduced Wear: Even tension means less strain on your bobbin case and fewer adjustments over time—a win for both your machine and your sanity.

Workflow Tip:

For best results, combine your specialty bobbin case (for decorative or heavy threads) with a MaggieFrame magnetic hoop when embroidering garments. This duo ensures both the top and bottom of your stitch formation are supported, delivering flawless results even on challenging projects.

8. Frequently Asked Questions (FAQ)

8.1 Q: Can I adjust the tension screw on a green-screw Brother bobbin case?

A: The green-screw bobbin case is factory-set for optimal tension, particularly for 60-weight embroidery threads. It’s generally recommended not to adjust this screw, as it can disrupt the delicate balance engineered for your machine. If you need to fine-tune tension, start with the upper thread tension or use an alternate bobbin case designed for adjustments.

8.2 Q: Why does my bobbin case rattle during sewing?

A: A slight rattle is actually normal and indicates the bobbin case is properly seated with a bit of play. However, if the rattle is excessive or accompanied by skipped stitches, check that the case is fully flush, alignment markers are matched, and there’s no debris or damage in the area.

8.3 Q: How often should I replace my bobbin case?

A: Replace your bobbin case if you notice three or more puncture marks, visible cracks, worn thread guides, or if tension adjustments no longer resolve stitch problems. For heavy users, regular inspection every 3–6 months is wise; for hobbyists, annual checks are usually sufficient.

9. Conclusion: Precision as the Foundation of Professional Results

Precision is the silent partner behind every flawless embroidery project. From choosing the right bobbin case for your Brother machine to meticulous installation and proactive maintenance, every detail matters. Remember: model-specific compatibility, careful alignment, and regular cleaning are your best allies in preventing headaches and ensuring consistent, professional-quality stitching. When your bobbin case operates in harmony with your hooping system and machine, you unlock the full creative potential of embroidery—one perfect stitch at a time.
